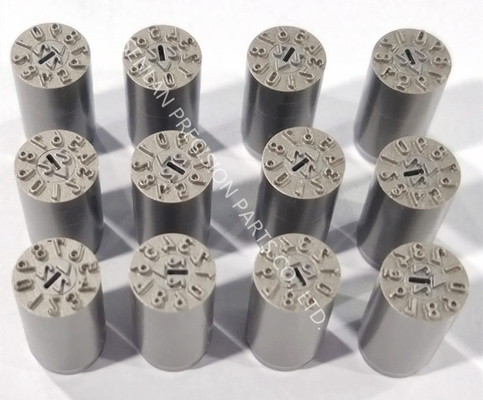

Year And Month SUS420 Replaceable Date Stamp For Injection Mold

Year And Month SUS420 Replaceable Date Stamp For Injection Mold
Year And Month SUS420 Replaceable Date Stamp For Injection Mold Year And Month SUS420 Replaceable Date Stamp For Injection Mold Year And Month SUS420 Replaceable Date Stamp For Injection Mold

Large Image :  Year And Month SUS420 Replaceable Date Stamp For Injection Mold

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-20working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

Year And Month SUS420 Replaceable Date Stamp For Injection Mold

Description
Parts Name: Date Insert Material: SUS420
Tolerence: +/-0.01-0.005mm Hardness: 48-52HRC
Standard: Mismi Standard Size: Customized
High Light:

Injection Mold Replaceable Date Stamp

,

SUS420 Replaceable Date Stamp

,

Precision Mould Date Stamp

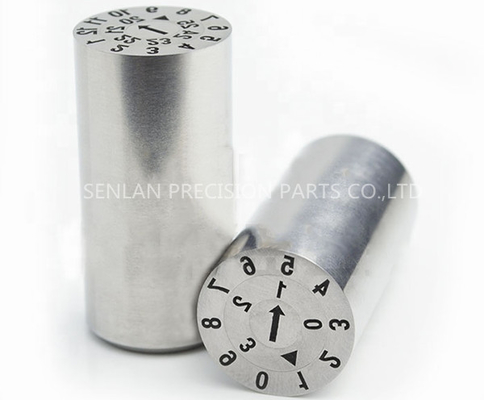

2023 Year And Month SUS420 Replaceable Date Stamp For Injection Mold



Indexable Mold Date Inserts DME Indexable Mold Date Inserts (MDI) provide traceability required in part quality programs. they designed for plastics injection molds. offering a distinctive indexable, snap-in-place arrow alignment, Indexable Mold Date Inserts’ unique design keeps the inner insert flush for three full turns.



Specifications:

Numerals are 0.2mm deep and arrow is 0.4mm deep Arrow is adjustment slot Maximum operating temperature is 150°C (300°F) Installation and Machining: Press-fit installation required. Maintain a close tolerance press fit. Too loose could allow the insert to move out of position, while too tight a press-fit might prevent the inner insert from rotating when required. Accurately measure the 0D for each part and machine ØG hole to provide about 0.005mm (.0002″) press fit.



Product's name Mold Date Inserts
material SUS420
Hardness HRC48-54






Features & Benefits

Front removable inserts have a replaceable spring to help keep the inner insert from moving during molding. Indexable inserts have “captured spring” in the outer insert and a ball detent on the inner insert to help lock the inner insert in place. Arrow functions as adjustment slot Easily replace or adjust the inner insert while mold is in the press. Numerals are 0.2mm deep, arrow is 0.4mm deep.



Our Advantages

  • We as a manufacturer are specialized in all kinds of precsion mould parts.
  • Good experience of 8 years to make Stamping die parts,Injection die parts,Auto parts, metal-working products.
  • Have advanced production equipments and experienced operators.
  • Good experience of OEM and ODM for our customers.
  • Provide best price, good quality and fast delivery





Delivery&Payment&Package



Payment terms: T/T,Paypal,Western Union,50% deposit, balance before shipment is available



Shipment: DHL,TNT,Fedex are available

Out packing :cartons with foam packing or Wooden box

Inner packing: packed by sponge with plastic bag

Delivery way : by air or by sea





How to order:



(1) Send us drawing or standard code & size

(2) We will quote you within 4 hours

(3) Get agreement with price and sign PO or Contract

(4) Make payment in advance


(5)If sample required,we will make sample first
