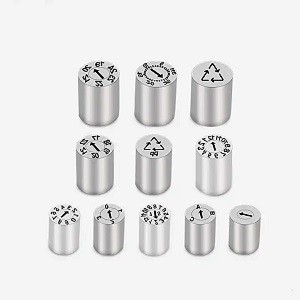

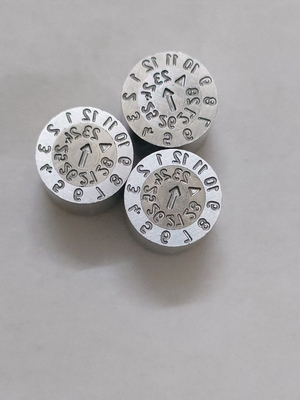

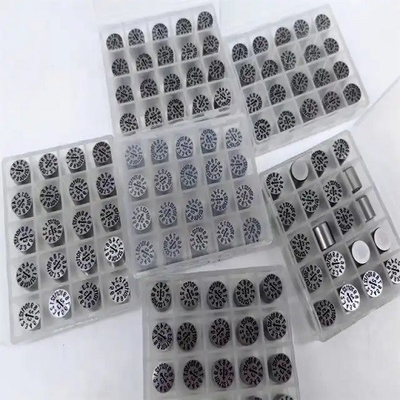

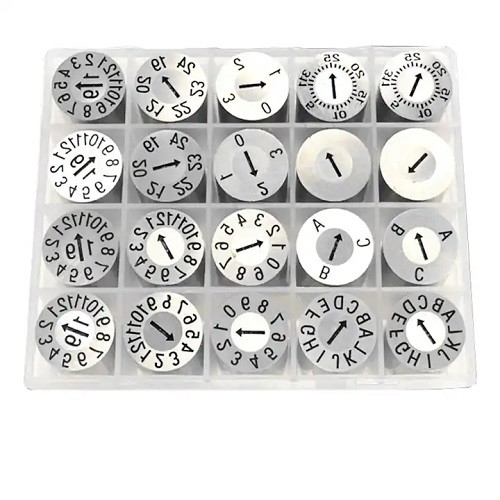

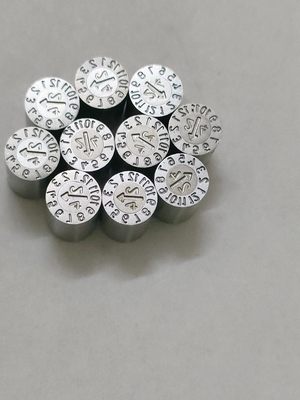

6mm DME Replaceable Month & Year Mold Date Inserts

Precision Mold Date Stamps for Plastic Injection Molds

Product Overview

The 6mm DME Replaceable Month & Year Mold Date Insert is a precision-engineered date stamping component used in plastic injection molds to mark:

• Production month

• Production year

• Manufacturing traceability information

These mold date inserts are widely used in packaging, medical, and consumer product molds where production tracking and quality control are required.

Designed for easy installation and replacement, the insert can be adjusted by rotation, allowing flexible date setting without removing the entire mold system.

All components are manufactured according to DME standard dimensions or customized based on customer drawings.

Key Features & Advantages

✔ Replaceable month & year configuration
✔ Easy rotational adjustment mechanism
✔ Secure locking structure after positioning
✔ Clear character marking for molded parts
✔ Compatible with aluminum, copper, and steel mold bases
✔ Suitable for multi-cavity injection molds

These date inserts help improve:

• Product traceability

• Mold management efficiency

• Quality control systems

• Regulatory compliance

Material & Heat Treatment

Material: SUS420 Stainless Steel
Hardness: 48–52 HRC
Heat Treatment: Available upon request

SUS420 provides:

• Good wear resistance

• Corrosion resistance

• Stable engraving clarity

• Long service life under repeated molding cycles

Technical Specifications

Diameter: 6mm (custom sizes available)
Tolerance: ±0.01 mm
Surface Finish: Ra0.6
Axiality: 0.01 mm
Verticality: 0.01 mm

Precision machining ensures:

• Accurate fit inside mold cavity

• Smooth rotation mechanism

• Clear and sharp marking on molded products

Processing & Manufacturing Focus

Key machining control points include:

1️⃣ Dimensional Precision

• Controlled OD tolerance

• Accurate seating depth

• Proper alignment with cavity surface

2️⃣ Character Engraving Accuracy

• Uniform font depth

• Clean edge definition

• Proper orientation marking

3️⃣ Rotation & Fixation Mechanism

• Smooth rotation during setting

• Stable locking after positioning

• No movement during injection cycles

Manufacturing processes include:

• CNC machining

• CNC milling

• EDM machining

• OD/ID grinding

• Surface grinding

• Precision polishing

Installation Guidelines

To ensure optimal performance:

• Use copper or other soft materials when installing

• Ensure correct mounting hole diameter and depth

• Avoid exceeding lid range to prevent sinking during ejection

• Confirm character direction before final fixing

• Process bevel surfaces when installing on curved or angled surfaces

Proper installation prevents:

• Misalignment

• Character distortion

• Premature wear

Typical Applications

These mold date inserts are widely used in:

• Plastic packaging molds

• Cosmetic packaging molds

• Medical device molds

• Consumer product molds

• Daily necessity packaging

Especially important in industries requiring batch tracking and production identification.

Manufacturing Capabilities

We provide complete mold component manufacturing services including:

• Core pins

• Cavity pins

• Ejector sleeves

• Mold inserts

• CNC precision parts

Inspection equipment includes:

• Hardness tester

• Calipers

• Height gauge

• CMM

• Profile projector

Ordering Process

1️⃣ Submit drawings, samples, or part numbers
2️⃣ NDA available for confidential projects
3️⃣ Same-day evaluation & quotation
4️⃣ 50% deposit to initiate production
5️⃣ Standard production: 7–10 working days
6️⃣ Shipment via express, air, or sea

Inquiry Requirements

For efficient quotation, please provide:

• Required diameter and type

• Material specification

• Tolerance requirement

• Engraving format (month/year layout)

• Order quantity

Business Terms

Payment: T/T, PayPal, Western Union (50% deposit, balance before shipment)
Packaging: Anti-corrosive oil coating + carton box
Shipping: DHL, TNT, FedEx available

Why Choose Us

• Specialized in precision mold components

• OEM / Built-to-Print manufacturing

• Strict dimensional control

• Fast quotation response

• Stable export experience

Request a Quotation

Send your specifications or DME reference number for a technical evaluation and quotation.

Our team will support your mold traceability solution with precision-manufactured 6mm replaceable month & year date inserts.
