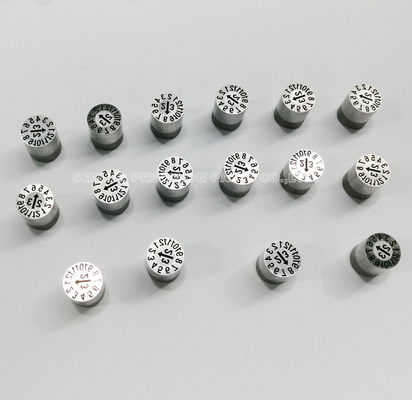

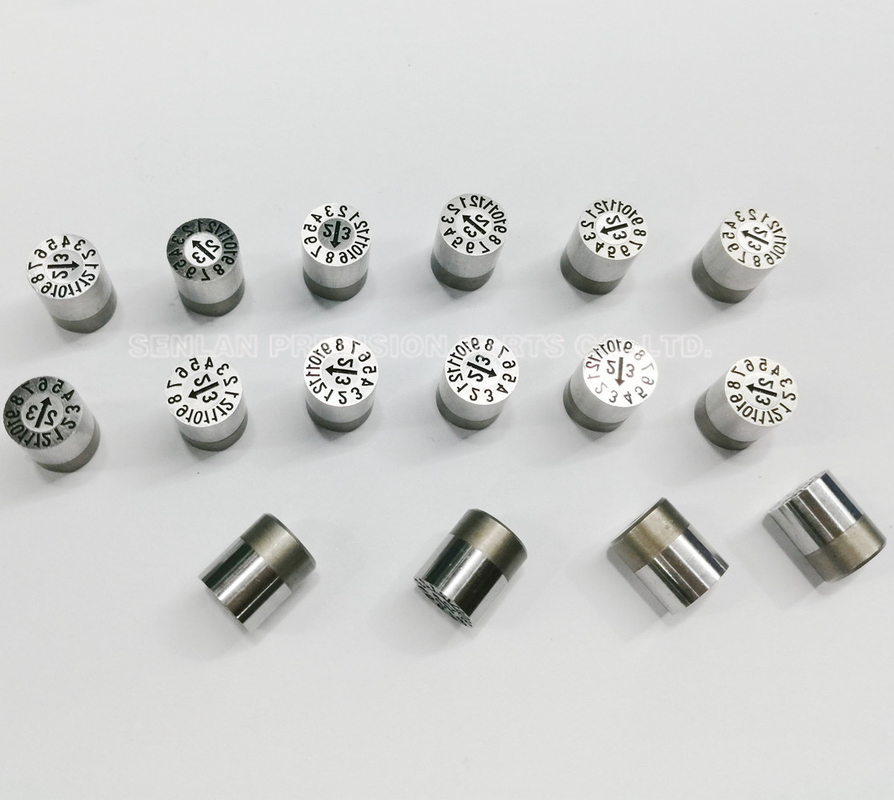

Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO

Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO
Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO

Large Image :  Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL431
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO

Description
Product Name: Mold Date Stamps Material: SUS420
Tolerance: +/-0.01mm Application: Plastic Injection Molding
Dimensions: As Per Drawings Concentricity: 0.01mm
Highlight:

SUS420 Injection Mold Date Stamp

,

Mold Date Inserts Replaceable

,

DME Injection Mold Date Stamp

Replaceable Month Year Injection Mold Date Stamp 6mm DME HASCO
Product Overview
These 6mm DME HASCO Replaceable Mold Date Stamps are precision-engineered inserts designed for plastic injection molds. They imprint production dates, material codes, customer numbers, and scheduling information directly onto molded products, enabling efficient traceability and product differentiation while enhancing production management.
Product Specifications
Material SUS420
Hardness 48-52HRC
Heat Treatment Available
Service Made-to-order
Surface Treatment /
Closest Tolerance ±0.01mm
Polishness Ra0.6
Axiality 0.01mm
Verticality 0.01mm
Product Variants & Standards
Our mold date stamps are available in various standards including China Standard, European Standard, JIS, American Standard, and can be customized to specifications such as MISUMI, PUNCH, CUMSA, DME, HASCO, OPITZ, and TAIWAN standards.
  • Year stamps, Month stamps, Day stamps
  • Year and month merged stamps
  • Version stamps, Blank stamps, Shift stamps
  • Environmental protection stamps
  • Alphabet and Digital stamps
  • Core changeable stamps, Double stamps
  • Combinational stamps
Installation Guidelines
  1. Use copper or other soft materials for installation to prevent damage
  2. Ensure proper diameter and depth of mounting holes
  3. Center hole must not exceed lid range to prevent sinking during ejection
  4. Verify character direction for optimal product appearance
  5. Process bevel or R-face areas as needed during installation
Key Advantages
  • Highly polished finish (6-8 micro finish)
  • Precision form ground to close diameter tolerance ±0.005mm
  • Common fractional sizes available up to 3 1/2″ long
  • M-2 high speed steel with 60-63 Rockwell C hardness
  • Custom sizes available up to 1″ diameter
  • Custom hardness RC 64-65 and triple drawn available on request
Applications
Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, and various industrial applications requiring product identification and traceability.
Manufacturing Capabilities
We specialize in precision manufacturing of steel, stainless steel, and copper materials for mold components including cavity pins, core pins, punches, ejector sleeves, and CNC machining parts.
Services: CNC machining, CNC Milling, Sodick EDM, Sodick Wire-cut, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing
Industries Served: Medical, Packaging, Aerospace, Electronic
Ordering Information
For efficient processing, please provide: product drawings or samples, required material specifications, dimensions and tolerances, hardness requirements, surface treatment needs, and order quantity.
Lead Time: 10 working days for production, 7 days for samples
Payment: T/T, Paypal, Western Union (50% deposit, balance before shipment)
Shipping: DHL, TNT, Fedex available
Packaging: Coated with anticorrosive oil, packed in carton boxes
