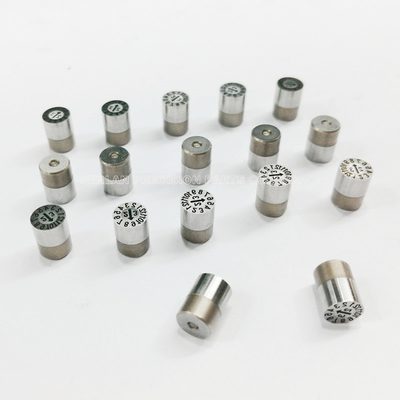

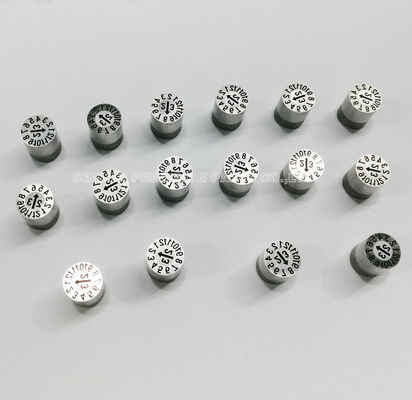

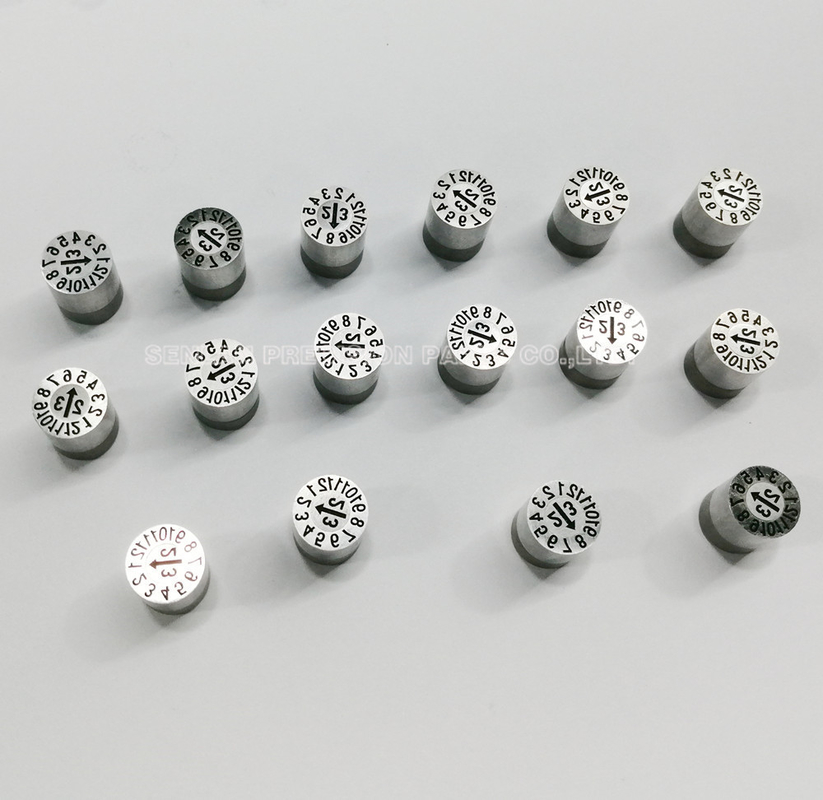

DME Replaceable 5MM Mold Date Inserts For Injection Molding
DME Replaceable 5MM Mold Date Inserts Mold Date Stamps For Injection Molding
Product Structure
The internal structure of date stamps includes ball bearing structure, spring structure, screw structure, inner insert changeable structure, and smooth interface structure.
Product Standards
Mold date stamps are available in China Standard, European Standard, JIS, American Standard, and can be customized according to various standards including MISUMI, PUNCH, CUMSA, DME, HASCO, OPITZ, and TAIWAN.
Product Material
Available in stainless steel SUS 420, S416, and S136.
Product Usage
Plastic Mold Date Stamp, also known as date identification code, is used in plastic molds. Inlaid on the surface or side wall of the mold cavity or core, these stamps use surface graphics, numbers, and alphabet information to identify product production date, material, customer code, production team, and other details for better product tracing and distinction, improving production efficiency and management. Custom text logos are supported.
Available models include: Year stamps, Month stamps, Day stamps, Year and month merged stamps, version stamps, blank stamps, shift stamps, environmental protection stamps, Alphabet stamps, Digital stamps, core changeable stamps, double stamps, and combinational stamps.
Product Specifications
| Material |
SUS420 |
| Hardness |
48-52HRC |
| Heat treatment |
Available |
| Service |
Made-to-order |
| Surface treatment |
/ |
| Closest tolerance |
+/- 0.01mm |
| Polishness |
Ra0.6 |
| Axiality |
0.01mm |
| Verticality |
0.01mm |
Installation Method
- Use copper or other soft material to knock when installing
- Ensure the diameter and depth of the hole are correct
- The center hole cannot exceed the range of the lid to avoid sinking when ejecting
- Pay attention to character direction to ensure plastic products are aesthetically pleasing
- Can process along the bevel when finding R face or bevel during installation
Business Range
Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts, etc.
Services
CNC machining, CNC Milling, Sodick EDM, Sodick Wire-cut, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing.
Industries Served
Medical, Packaging, Aerospace, Electronic
Application Fields
Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.
Business Information
Payment Terms
T/T, Paypal, Western Union - 50% deposit, balance before shipment
Package
Coated with anticorrosive oil, packed in carton box
Shipment Methods
DHL, TNT, Fedex available
Product Advantages
- Highly polished finish 6-8 micro finish
- Precision form ground to close diameter tolerance +/-0.005mm
- Common fractional sizes available up to 3 1/2" long
- M-2 high speed steel 60-63 Rockwell C
- Custom sizes can be made to order up to 1" diameter
- Custom hardness RC 64-65 and triple drawn available on request
Ordering Process
- Send drawing or sample (non-standard parts) or series number (standard parts)
- NDA available for intellectual property and confidential files
- Immediate evaluation of drawing and requirements
- Quotation provided same day
- 50% deposit required before order, 50% balance before shipment
- Production time: 10 working days (7 days for samples)
- Shipping options: express, air, or sea
For Efficient Inquiries
Please provide the following details:
- Product drawing if available
- Required material
- Dimension and tolerance specifications
- Hardness and surface treatment requirements
- Order quantity if available
