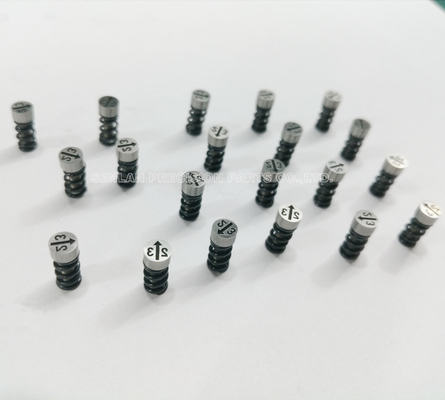

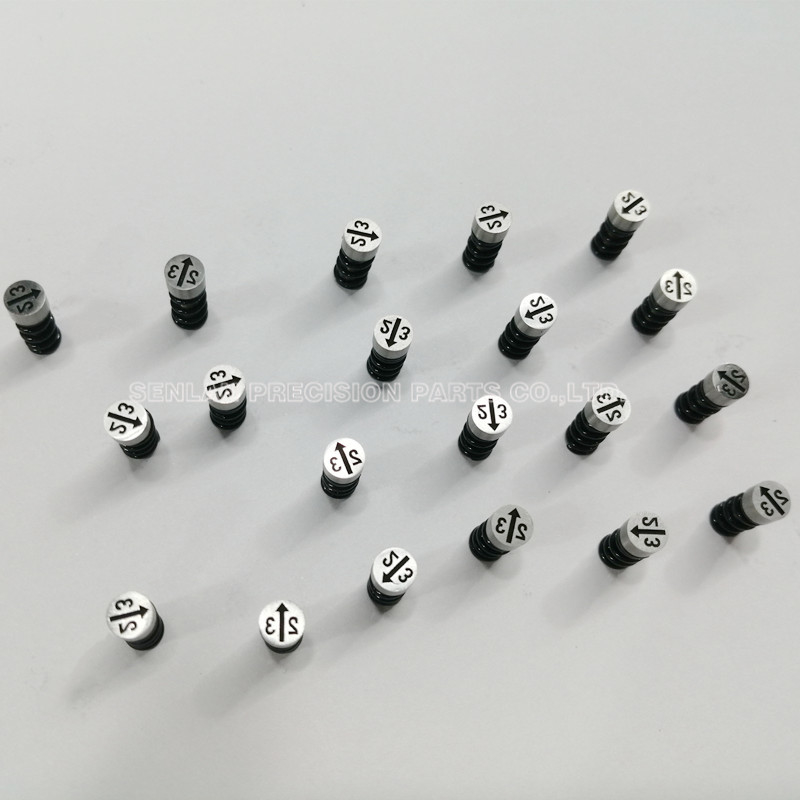

HASCO DME SUS420 Mold Date Inserts Marked Pins With Screw

HASCO DME SUS420 Mold Date Inserts Marked Pins With Screw
HASCO DME SUS420 Mold Date Inserts Marked Pins With Screw HASCO DME SUS420 Mold Date Inserts Marked Pins With Screw

Large Image :  HASCO DME SUS420 Mold Date Inserts Marked Pins With Screw

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL428
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

HASCO DME SUS420 Mold Date Inserts Marked Pins With Screw

Description
Product Name: Date Marked Pins Tolerance: +/-0.01mm
Application: Plastic Injection Molding Dimensions: As Per Drawings
Parallelism: 0.01mm Concentricity: 0.01mm
High Light:

SUS 420 Mold Date Inserts

,

Pins Mold Date Inserts

,

Injection Mold Date Stamp With Screw

DME HASCO SUS420 Mold Date Inserts Mold Date Pins Date Marked Pins With Screw

Stainless steel Date Marking Pin for plastic injection mold, standard type.Save the cost of mold engraving, and the date marking pin can be replace making the maintenance easier.



We manufature European Spanish Standard,Germany Standard,American Standard,Janpanese Standard, OPITZ, Standard.
We can provide replaceable date stamps, innner pointer of date stamps, three-lay combined date stamps, inserted renewable date seal, split-type date stamp,recycling inserts,date stamp of srew die casting die, multi date stamp,die casting die date stamp,traditional date stamps.

We're familiar with HASCO,DME,MISUMI,PCS,PROGRESSIVE,DANLY,STRACK standards etc standards.Our products incuding mold interlocks,,date stamps,cooling series,wear plates,self lube bushing,guide bushes guide pins/pillars,etc.


Product Detail of date marked pins

Material

SUS420

Hardness

48-52HRC

Heat treatment

Available

Service

Made-to-order

Surface treatment

/

Closest tolerance

+ - 0.01mm

Polishness

Ra0.6

Axiality

0.01mm

Verticality

0.01mm


Brief Instruction of date marked pins
(1). Date mark pin can take apart,according to different time to choose different type of inner pointer insert.
(2). Double date stamps, allows two different indications on the plastic part without the need for two date codes, reducing cost and space required.
(3). can save to periodically change the central insert during 7 consecutive years.
(4). It can reduce costs and space required, In the standard version(12 months + 6 years).
(5). The lower the internal hardness, toughness especially good for high-temperature operating environment of the mold.
(6). According to special Inject condition,use this date stamp will avoid mold take off from positive, at the same time, no need to take apart the mold when you change the insert part.


Install method of date marked pins
(1). Use copper or other soft material to knock when install it.
(2). Make sure the diameter and the depth of the hole is right.
(3). The center hole can not exceed the range of the lid,to avoid sinking when ejecting.
(4). Notice the characters direction,to make sure the plastic products beauteous.
(5). Can per the bevel to process when find R face or bevel when install it.

Business Range
Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts,Cavity pins, core pins,Punches,Ejector sleeve,CNC machining parts etc...
Services:CNC machining,CNC Milling,Sodick EDM,Sodick Wire-cut,OD grinding,ID grinding,Surface grinding,Thread grinding,Polishing etc..
Industries Served: Medical/Packaging/Aerospace/Electronic


Application field
Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.



Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available
Package
Coated with anticorrosive oil, packed in carton box
Shipment ways
DHL,TNT,Fedex are available

Advantage

(1) Highly polished finish 6-8 micro finish.

(2) Precision form ground to close diameter tolerance +/-0.005mm

(3) Common fractional sizes available up to 3 1/2″ long.

(4) M-2 high speed steel 60-63 Rockwell C.

(5) Custom sizes can be made to order up to 1″ diameter.

(6) Custom hardness RC 64-65 and triple drawn available on request.


How to order?
(a) Please send us drawing or sample(non-standard parts) or series number(standard parts).
We can sign NDA if the file is belongs to intellectual property and confidential.
(b) We evaluate the drawing and requirement immediately.
(c) We try to send the offer at the same day back to customer.
(d) If we both agreed on the offer, for trade rules, we accept 50% Deposit before order, and 50% Balance when shipment is taking.Then we can start manufacturing or sample process.
(e) Our production time usually takes 10 working days,sample process takes 7 days. It depends on order quanity and product itself.
(f) We can ship the parts by express,air,sea according to your need.

To make the inquiry efficient and without confusion, please try to give me the following details of your products during your inquiry:
1) The drawing of the products if it is possible.
2) The material that you need for your product.
3) The dimension and the tolerance of the product.
4) The hardness and the surface treatment.
5) Quantity of the order if it is available.

I think a lot of items will match your interest,and really hope to establish business relationship with you!
Any questions,pls feel free to contact me at any time.
