Precision Collapsible Cores for Internal Undercuts - High-Hardness Mold Units

Product Overview

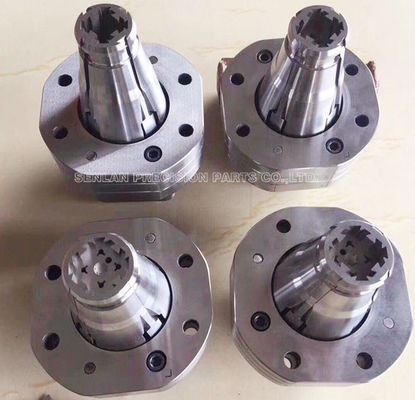

The Collapsible Core Injection Mold Parts are precision-engineered components made from NAK80 or SKD61 steel, with a hardness range of 46-56 HRC. These high-quality mold components are designed for efficient and reliable performance in complex plastic injection molding applications. Ideal for multi-cavity molds, they are used in packaging, medical, and consumer goods industries for producing bottle caps, closures, and other intricate molded parts.

Key Features & Technical Advantages

• NAK80 and SKD61 steel for superior strength, durability, and wear resistance

• Hardness range of 46-56 HRC ensures long-lasting performance and resistance to wear and tear

• Collapsible core design for creating undercuts and complex geometries in molded parts

• High precision manufacturing for tight tolerances and perfect fit in multi-cavity molds

• Corrosion-resistant for reliable operation in high-cycle injection molding environments

• Ideal for multi-cavity molding applications, ensuring uniformity and consistency across all cavities

• Customizable to meet specific mold design and part requirements

• CNC machined for exceptional accuracy and surface finish

Applications & Industries

The Collapsible Core Injection Mold Parts are used in a variety of industries requiring precise, high-quality mold components, including:

• Packaging manufacturers for bottle caps, closures, and sealing components

• Medical device manufacturers for syringe components, disposables, and medical parts

• Consumer goods for thin-wall injection molding and complex geometries

• OEM manufacturers requiring high-precision collapsible core molds

These components are especially beneficial in multi-cavity molds, improving cycle time and production efficiency while maintaining part consistency.

Mold Structure & Design Description

The Collapsible Core Mold Components are engineered to allow for the creation of undercuts and other complex geometries that cannot be easily achieved with traditional molding techniques. These parts are integrated into the mold to facilitate easy ejection of parts without damaging intricate features.
Key design considerations include:

• Collapsible core design that allows for the removal of parts with complex undercuts

• High-strength steel for improved wear resistance and durability

• Precise machining to ensure proper fit and alignment in mold cavities

• Corrosion resistance for long-term reliability in high-cycle molding

• Adjustable insert design for varying part geometries and mold configurations

These design features ensure smooth ejection, reliable mold function, and consistent part quality.

Manufacturing & CNC Machining Capability

We utilize state-of-the-art CNC machining to manufacture the Collapsible Core Injection Mold Parts, ensuring precise tolerances and high-quality finishes. Our capabilities include:

• CNC turning, milling, and grinding for high-precision components

• Material selection for strength, durability, and wear resistance (NAK80, SKD61)

• Tight tolerance control to ensure consistent part dimensions and fit in the mold

• High-precision surface finish to ensure smooth operation and part ejection

• Advanced heat treatment (HRC 46-56) for optimal strength and resistance to wear

Each part undergoes a rigorous quality control process to ensure that it meets the high standards required for precision injection molding.

Custom Development & OEM Cooperation Process

We offer full OEM and built-to-print services for custom collapsible core mold components. Our process includes:

1. Review of customer drawings and mold specifications

2. Engineering analysis to assess manufacturability and design feasibility

3. CNC machining and material selection

4. Dimensional and functional testing to ensure proper fit and performance

5. Packaging and shipping for overseas mold assembly

All products are custom-manufactured according to customer specifications or industry standards.

Quality Control & Export Experience

Quality is a top priority in our manufacturing process. We employ a thorough quality control system to ensure each part meets the required standards:

• Incoming raw material inspection to verify the quality of NAK80 and SKD61 steel

• In-process quality checks to monitor tolerances and functionality

• Final inspection to ensure parts meet dimensional and performance standards

Our Collapsible Core Mold Parts are regularly used in international projects, and we provide shipping and export services to ensure on-time delivery for overseas mold assemblies.

Related Products (Internal Links)

• Injection Mold Positioning Components

• Custom CNC Machined Mold Components

• Multi-Cavity Mold Parts

• Plastic Injection Mold Parts

Frequently Asked Questions (FAQ)

Q1: Can you manufacture collapsible core mold parts based on customer drawings?
Yes, we offer custom-built collapsible core mold parts based on customer drawings or industry standards such as NAK80 or SKD61.

Q2: What materials are used for the Collapsible Core Mold Parts?
We use NAK80 and SKD61 steel, known for their strength, durability, and wear resistance in high-cycle injection molding.

Q3: Are these mold parts suitable for multi-cavity molds?
Yes, the Collapsible Core Mold Parts are designed for use in multi-cavity molds, ensuring consistent part production and efficiency across all cavities.

Q4: Can you handle international shipping for overseas mold assembly?
Yes, we support international shipping and provide overseas mold assembly services for our mold components.

Request a Technical Quotation

Please send us your drawings or mold specifications to receive a detailed technical evaluation and quotation for custom Collapsible Core Injection Mold Parts.
