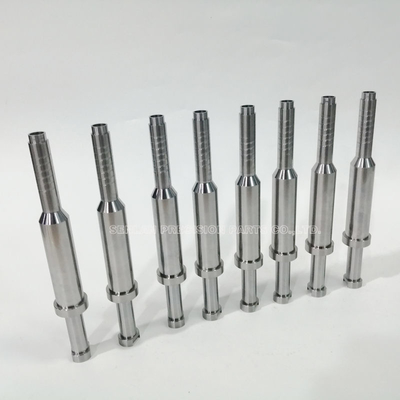

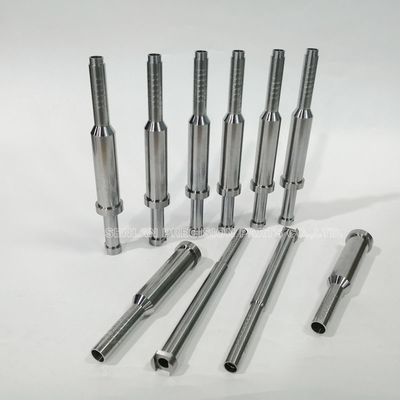

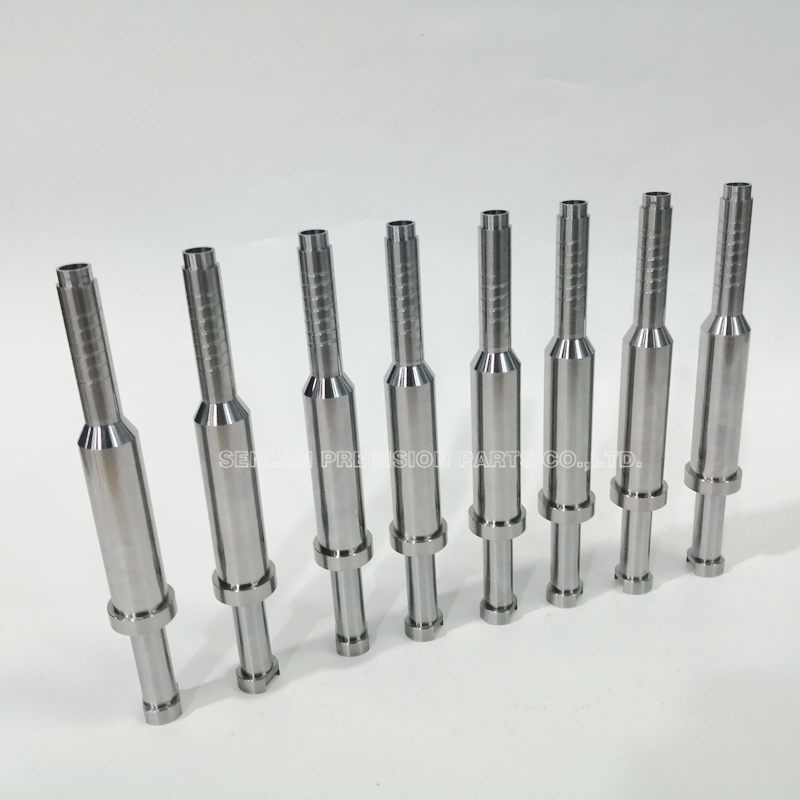

High Precision Mold Components - Ejector Sleeve Pin
Our high precision ejector sleeve pins feature excellent grinding quality for superior performance in injection molding applications. These components can incorporate molding detail on internal and/or external surfaces, function with shut-off features, or provide basic molding surfaces at the sleeve end where ejection force is applied.
Manufacturing ejector sleeves from tool steel requires specific production procedures and precise heat treatment to ensure maximum attainable lifespan and performance. Our specialized processes deliver components that exceed industry expectations for durability and precision.
Download Product Documentation
Ejector Sleeve Features & Specifications
| Materials |
S136 |
| Industry Standards |
Customized |
| Minimum Order Quantity (MOQ) |
1 piece |
| Production Capacity |
2000 pieces per week |
| Lead Time |
7-20 days from deposit |
| Payment Terms |
T/T, Paypal, Western Union, Cash |
| Quality Control |
Hardness tester, Callipers, Altimeter, CMM, Projector, 2.5D |
| Machines/Equipment |
CNC lathes, OD Grinder, EDM, CNC Milling |
| Other Services |
OEM & ODM, Customized Specification, One to One Communication, Free Samples |
Additional Information
- Sample orders and small quantities accepted
- Delivery methods: DHL, EMS, UPS, or FedEx
- Located in Dongguan manufacturing base, China
- Custom design services available based on requirements and applications
Technical Specifications
Tolerance
±0.005mm (customizable to customer requirements)
Drawing Format
PDF, DWG, DXF, IGS, STEP, etc.
Packaging
Inner packaging with recycled plastic boxes and anti-corrosive oil, outer packaging with sponge and PE bags, or customized to customer requirements.
Application Fields
Automobile parts, medical equipment, daily necessities packaging, cosmetic packaging, and more.
Our Products & Services
Main Products
We manufacture a comprehensive range of standard and customized ejector pins, punches, insert pins, cavity pins, core pins, mold cores, and other mold accessories and die parts.
Service Commitment
- Professional technical advice and operational support
- 24/7 online customer service
- Comprehensive pre-shipment inspection of all products
- Excellent after-sales service
- Strict quality control standards
- Flexible shipping terms: EXW, FOB, CIF
- OEM and ODM services available
Frequently Asked Questions
How long does production take for mold components?
Production typically takes 3-5 weeks depending on part complexity and cavity count. After tool approval, parts delivery occurs within 3-5 days.
Can you produce based on provided samples?
Yes, we can manufacture components using your samples or 2D/3D technical drawings.
Do you provide samples and are they free?
Yes, we offer free samples but shipping costs are the responsibility of the customer.
