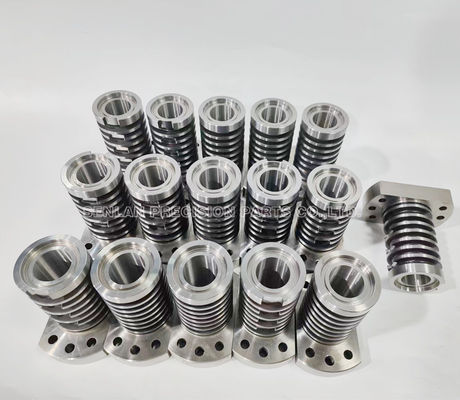

SKD61 Threaded Core Inserts for Plastic Injection Molds
Threaded core inserts are precision forming components used to create true internal threads in injection-molded parts. Because threads are functional features, accuracy is critical—small deviations in profile, pitch, or alignment can cause cross-threading, torque variation, leakage, or assembly failures.
Our SKD61 threaded core inserts are custom-manufactured to customer drawings for stable thread forming and long-run durability. SKD61 (JIS) is widely used for tooling components that require toughness, thermal fatigue resistance, and stable performance under repeated cycles—especially when the threaded core operates in high-stress conditions or in molds with rotary/unscrewing mechanisms.
Product Description
A threaded core insert forms the internal thread feature of a molded part. Depending on the part design and mold architecture, it may be used with an unscrewing mechanism or other demolding methods. Regardless of ejection style, threaded cores must maintain precise geometry and stable surface condition to keep thread quality consistent over production life.
What a threaded core insert typically controls:
- Thread profile, pitch, and lead-in geometry
- Thread-to-axis alignment for consistent assembly and torque
- Locating datums for repeatable installation into the mold
- Surface finish that supports release and protects thread integrity
- Interface features required by the mold mechanism
Why SKD61 is commonly used for threaded cores:
SKD61 is valued for its balanced performance in demanding mold conditions:
- High toughness to resist chipping and cracking at thread edges
- Thermal fatigue resistance for repeated heating/cooling cycles
- Stable heat-treatment response for practical hardness and durability
- Good overall reliability for high-cycle tooling components
Final hardness, tolerances, and surface finish are produced to your drawing and project requirements.
Common threaded core structures:
- Thread-forming section with controlled crest/root geometry
- Locating shoulder/diameter for stable positioning
- Retention details (threads, flats, key features)
- Wear zones optimized for long service life
Applications
SKD61 threaded core inserts are used in plastic injection molds for:
- Molds requiring true internal thread forming
- High-volume production where thread consistency affects yield
- Multi-cavity molds needing matched threaded core sets
- Tooling programs using interchangeable spares for maintenance efficiency
- Mold designs using unscrewing/rotary demolding systems
End products vary by customer design; we focus on mold function and threaded feature performance.
Precision & Manufacturing Capabilities
Threaded core inserts require both geometric precision and stability after heat treatment. We manufacture with process control designed to protect thread form accuracy and set consistency.
Manufacturing processes:
- Precision CNC turning/milling for datums and interfaces
- Thread machining to specified profile and tolerance
- Grinding for critical fits and rotation datums
- EDM / wire EDM for special features
- Heat treatment coordination for target hardness and stability
- Fine finishing/polishing for thread surfaces and wear zones
- Set matching for multi-cavity orders
Key quality controls for threaded cores:
- Thread profile verification per drawing requirements
- Concentricity/runout control between thread geometry and locating datums
- Fit tolerance control for drop-in installation and interchangeability
- Surface finish management to reduce galling and improve release behavior
- Consistency control across sets
Inspection & documentation:
- Dimensional inspection reports available
- Material certificates and heat treatment records upon request
- Serial marking/traceability options for cavity and set management
Customer Value for Thread Quality & Tool Life
- Consistent assembly and torque performance - Accurate threads help reduce cross-threading and stabilize torque in assembly processes.
- Higher yield in multi-cavity production - Matched threaded core sets reduce cavity-to-cavity variation and improve overall production consistency.
- Longer service life under demanding cycles - SKD61's toughness and thermal fatigue resistance help maintain thread integrity over extended production runs.
- Faster maintenance with interchangeable threaded cores - Replaceable cores enable quick swap-in repairs and reduce downtime without major mold rework.
What We Need for Quotation
To quote SKD61 threaded core inserts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Quantity (single pieces or multi-cavity sets)
- Material requirement: SKD61
- Heat treatment / target hardness specification
- Thread specifications (profile, pitch, tolerance, lead-in requirements)
- Critical tolerances (datums, fits, runout/concentricity, functional zones)
- Surface finish requirement for thread and sealing-related areas
- Mold interface details (locating diameter/shoulder, retention method)
- Inspection/document needs (FAI, report format, sampling vs. 100% inspection)
- Lead time and packaging requirements
If replacing existing cores, providing mating plate/interface dimensions helps ensure drop-in compatibility.
Frequently Asked Questions
Is SKD61 suitable for threaded core inserts?
Yes. SKD61 is commonly used for tooling components that require toughness and stability under repeated cycles, helping protect thread edges and maintain long-run performance.
Why do molded threads sometimes show inconsistent torque or cross-threading?
Common causes include thread profile deviation, runout relative to the axis, surface finish issues, wear, or installation alignment problems. Precise machining and stable fits reduce these risks.
Can you supply matched threaded core sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key thread and datum features.
Do you provide inspection reports and material certificates?
Yes. Inspection reports, material certificates, and heat treatment records are available upon request.
Send us your STEP/2D drawings, thread specifications, quantities, target hardness, tolerance/finish requirements, and required delivery date. We'll reply quickly with a clear quotation, lead time, and available quality documentation options for SKD61 threaded core inserts.
