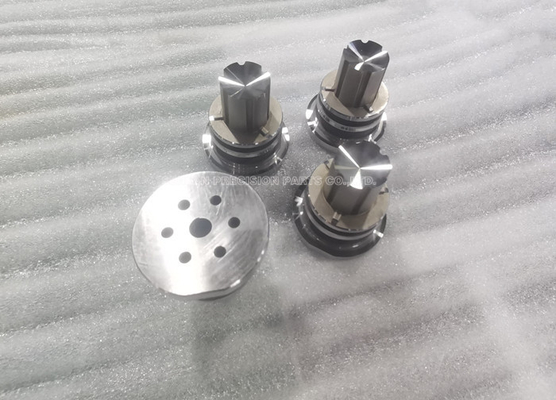

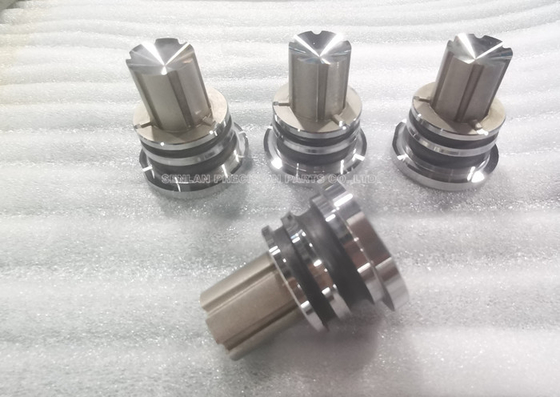

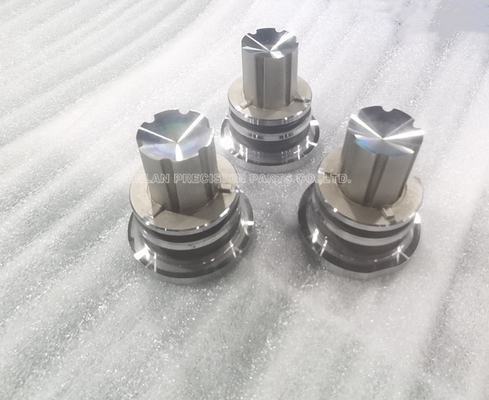

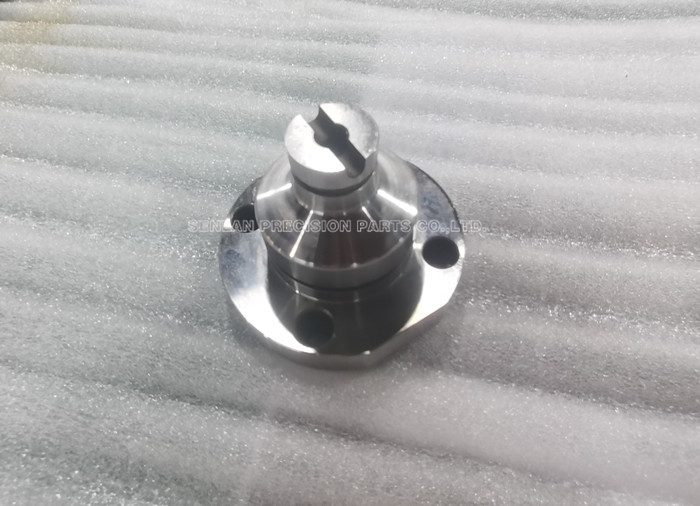

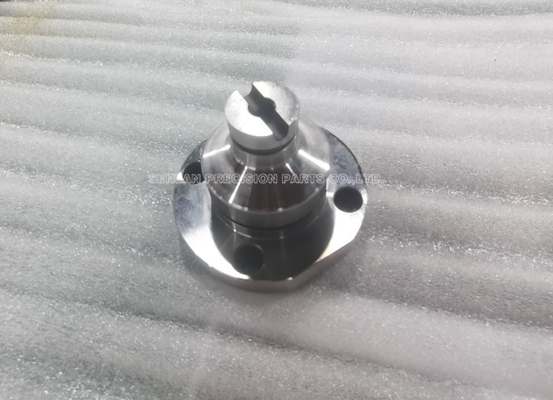

EDM Machined S136 Precision Mould Inserts For Packaging Industry

EDM Machined S136 Precision Mould Inserts For Packaging Industry
EDM Machined S136 Precision Mould Inserts For Packaging Industry EDM Machined S136 Precision Mould Inserts For Packaging Industry EDM Machined S136 Precision Mould Inserts For Packaging Industry EDM Machined S136 Precision Mould Inserts For Packaging Industry

Large Image :  EDM Machined S136 Precision Mould Inserts For Packaging Industry

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-20working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

EDM Machined S136 Precision Mould Inserts For Packaging Industry

Description
Parts Name: Inserts Parts Hardness: 48~54 HRC
Tolerence: +/-0.01-0.005mm Color: Silver
Usage: Packing Industry Process: EDM
High Light:

Packaging Industry EDM Mould Inserts

,

S136 Precision Mould Inserts

,

EDM Machined Precision Mould Parts

EDM Machined S136 Precision Inserts For The Packaging Industry



Insert molding is the process of molding thermoplastic material around a preformed component (an insert) to create a finished part that incorporates multiple materials. The inserts are typically metal parts that are used to reinforce the mechanical properties of the plastic part.





Specification Of Insert Mold Parts:



Material SKD11, SKD61, HSS, M2, D2, SUJ2, S45C
Standard DIN, MISUMI, EDM, MOELLER, HASCO ect
Size Depend on your drawings or products standard
Place of origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.0025mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.





Purchase Insert Mold Parts Process Chart:



Plastic Mold (Moulds) Components

Production Process

Description
1. 3d Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations

Including the price of mold components

for cores & cavities, weight of product, payment, lifetime, delivery, etc.

3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold(moulds) components

Confirm drawing, start to do DFM, mold flows and mold detail agreed

with the customer, start production

5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot

We provide the moulds Components test samples for confirmation (about 1-2piece), then,

get your signature sample, mass production

7. Package Cartons box for parts, or as your requiretment
8. Delivery Deliver goods by air or by sea. Express





Manufactuing Equipment



CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
YB-25 0.05mm 2
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
618 0.001mm 2
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan







FAQ:



Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock. or it is 16-23 days if the goods are not in stock, it is according to quantity and your customization need



Q2: Do You Have Any Office In My Country ?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturer for plastic mold parts in dongguan city, which has exported the goods to nearly 35 countries, each components was tested through the strict quality control system before delivery, and we never get any complaint from clients yet



Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as the special report you require from the third party inspection company



Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal



EDM Machined S136 Precision Mould Inserts For Packaging Industry 0
