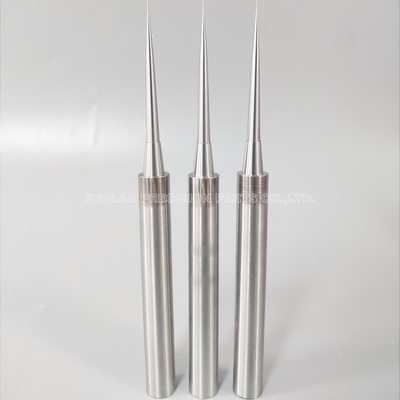

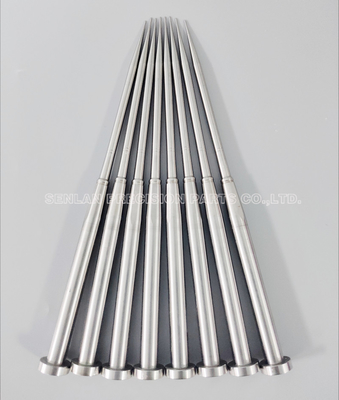

High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance

Certification
China Senlan Precision Parts Co.,Ltd. certification
China Senlan Precision Parts Co.,Ltd. certification
Customer Reviews
Thank you for doing such good quanlity work,and you can expect more orders from me in the future

—— Fernando

We have cooperated with senlan for many years and they always can provide good quality of mold parts and service

—— Amir Choroo

I received my package today and i'm happy with the pins you've done,they seems pefect,thank you.

—— Peter

I'm Online Chat Now

High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance

High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance
High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance

Large Image :  High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: SL-395
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 2000pcs/week

High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance

Description
Parts Name: Mold Core Pins Material: SS420
Hardness: 52-54HRC Application: Medical Industry
Tolerance: +/-0.005-+/-0.01mm Size: As Per Drawings
High Light:

High Polished Mold Core Pins

,

0.005 Tolerance Mold Core Pins

,

Medical Core Pins Injection Molding

SS420 Mold Core Pins High Polished Mould Parts For Medical With 0.005 Tolerance



Senlan capabilities include but are not limited to:

Offer special and custom mold core pins with high-strength and high-accuracy. Normally, core pins are hardened, tempered and grinded to tolerance m6, peak and chamfer turned.
Offer special and custom nitrided ejector pins & core pins. Internal hardness: 40-45 HRC and surface hardness 900HV above. Thickness of nitration case: 0.02-0.05mm. After surface treatment, the ejector pins and core pins will have an anti-wearing and corrosion-resistant surface with fairly high hardness. Meanwhile, its body has fairly low hardness and high tenacity, applicable with molds operating under high temperature.
Offer high-speed steel ejector pins & core pins. The minimum diameter of pin to be machined to Φ0.4mm, with maximum precision up to 0.002mm. Further machining is allowed for working end. Due to its high hardness, high grinding resistance and high heat resistance, better for precision mold, capable of increasing the service life significantly, particularly being very effective in controlling the hot deformation for precision mold.



Fetures of Mold Core Pins

Materials SS420
Industry Standards

DIN, JIS, AISI, GB

Minimum Order Quantity (MOQ) 1 piece
Production Capacity 2000 pieces per week
Lead Time 7-20 days from deposit
Payment Term T/T, Paypal, Western Union, Cash
Quality control Hardness tester, Callipers, Alitimeter, CMM, Projector, 2.5D
Machines/equipment

 CNC lathes, OD Grinder, EDM, CNC Milling

Other Service OEM &OEM, Customized Specification, One to One Communication, Free Samples
Additional 1) Sample Order and Small Order are acceptable;
2) The methods of delivery: DHL,EMS,UPS or Fedex (fast and safer)
3) Located in manufacturing base of china-dongguan city,we also help customer design according to customers' requirements and products' application.
Our Website http://www.precision-mouldparts.com


Tolerance of
Mold Core Pins
+-0.002mm, Depends on customer’s requirements.

Drawing Format
PDF/DWG/DXF/IGS/STEP,etc

Packaging of
Mold Core Pins
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.

Application field of
Mold Core Pins
Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.

Sales team
Only with teamwork can leadership be maintained.
Team spirit is a company’s core competitiveness. Only team can lead the way, only strong team can go further.

Main products
SENLAN manufactures a full line of standard and customized ejector pins,punches,insert pins ,cavity pins,core pins,mold core, and other mould accessories and die parts etc.

Product display
Senlan Precision Mould Parts Co., Ltd, is a professional OEM die casting parts manufacturer. We provide tooling design,tooling fabrication, die casting, secondary process, precision machining,T6 treatment,finish treatment and assembling.
We have a team with rich quality control experience which helps us meet customers' requirements and satisify the customers' demands .High quality, competitive price, quick response are our missions.


Custom Mold Core Pin is made from the finest grade of SKD-61 hotwork die steel. The heads are hot forged and stress relieved for uniform grain flow and high tensile strength.The surface could be ion nitride coated to a hardness of HV 1000°±100°. The core of vacuumed pin could be hardened to HRC 52°±2°. Of course,you could also select the other steels.Our coating is done in a proprietary process that produces an ideal combination of toughness and long life. The high surface finish reduces friction and increases pin service life. If you need we could reach the tolerance to 0.005mm.



High Polished Parts SS420 Mold Core Pins For Medical 0.005 Tolerance 0
