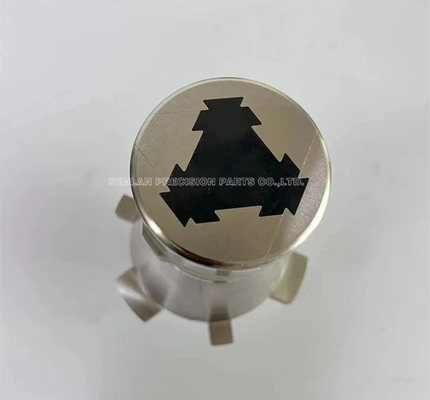

CNC Turning And Milling Tool Precision Mold Core Pin Shaft
Material: 1.2343 - Custom precision shaft core pin parts manufactured using CNC turning and milling compound machine tools.
Cavities and cores are essential components in the injection molding process, where the concave part of the mold is the cavity and the convex part is the core. These components work in pairs, with the cavity serving as the female mold and the core as the male mold.
Core Pin Specifications
| Specification |
Details |
| Hardness |
45-52 HRC or dependent on material |
| Heat Treatment |
Available |
| Service |
Made-to-order |
| Surface Treatment |
TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Closest Tolerance |
±0.005mm |
| Polishing |
Close to Ra0.2 |
| Processing Technology |
Die polished, Polishing, Plating titanium, Lettering, Wire EDM, Electro-discharge machining, Titanize, Heat treatment, Fast wire cutting, Slow wire cutting, Head annealing, Sintering |
Technical Details
| Parameter |
Specification |
| Material Options |
Carbide, ASP23, Vanadis, SKD11, SKD61, HSS, A2, M2, SUJ2, S45C |
| Standard |
Non-Standard |
| Size |
Custom according to drawings or product standards |
| Place of Origin |
Dongguan, Guangdong, China |
| Delivery Time |
3-5 working days (depending on quantity), shipped via DHL, UPS, FEDEX, TNT or Ocean Shipping |
Main Products
- Core pin, cavity pin, insert pin, etc.
- HSS punch, Precision punch, Special-shaped punch
- Ejector pins, ejector sleeve, two-stage ejector pins, etc.
- Guide pillars, Guide bushings, Guide post set
- Slide Core Units, Latch locks, locating Series
Why Choose Our Products
- One-stop service solution
- Competitive pricing
- Specialized corporate culture
- Excellent quality control systems
- Custom requirements fulfillment
- Extensive experience in mold industry
- Comprehensive product range
- Outstanding merchandise and customer service
