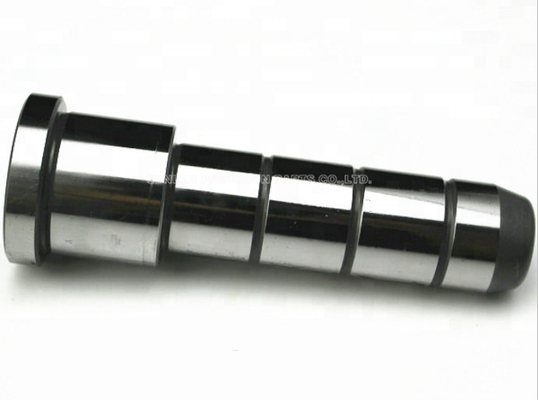

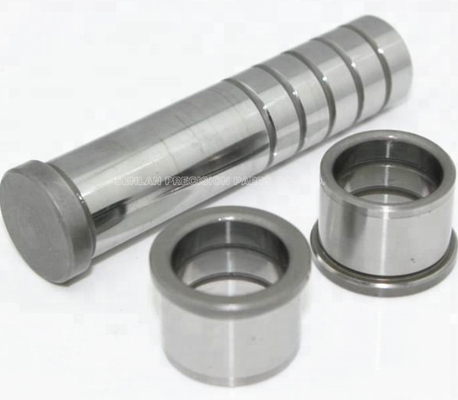

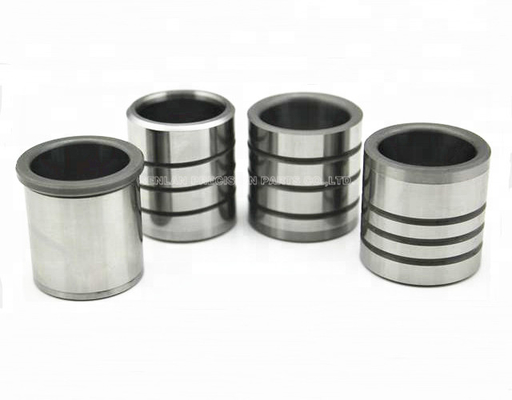

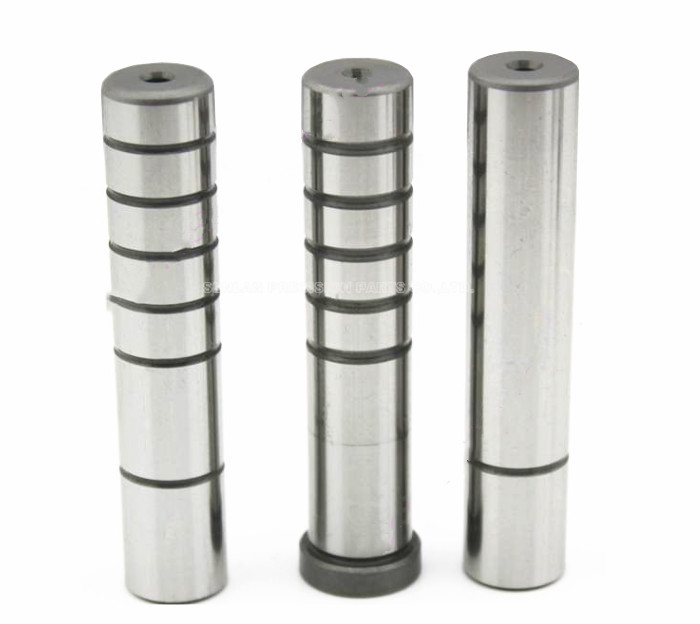

Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI

Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI
Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI

Large Image :  Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Standard SKD61 Guide Pins And Bushings Precision Mould For MISUMI

Description
Parts Name: Guide Bushing Tolerence: +/-0.003mm
Usage: Medical Tube Bottle Embryo / Cosmetic Packing Hardness: 48~54 HRC
Color: Silver Machining: CNC Machining, EDM
Highlight:

54 HRC Guide Pins And Bushings

,

SKD61 Guide Pins And Bushings

,

Guide Bushing Precision Mould Parts

Standard SKD61 Guide Pins and Bushings for Precision Moulds
Product Overview

Standard SKD61 guide pins and bushings from MISUMI are engineered for reinforcing mechanical properties in plastic parts and thermoplastic elastomer products manufactured through insert injection molding processes.

Benefits of Insert Injection Molding
  • Improves component reliability
  • Enhanced strength and structural integrity
  • Reduces assembly and labor costs
  • Minimizes part size and weight
  • Increased design flexibility
Product Specifications
Technical Details
Hardness 45-52 HRC or material-dependent
Heat Treatment Available
Service Made-to-order
Surface Treatment TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc.
Closest Tolerance ±0.001mm
Polishing Close to Ra0.2
Processing Technology Die polished, Polishing, Plating titanium, Lettering, Wire EDM, Electro-discharge machining, Titanize, Heat treatment, Fast wire cutting, Slow wire cutting, Head annealing, Sintering
Material & Manufacturing Specifications
Material Carbide, ASP23, Vanadis, CPMRTXM4, SKD11, SKD61, HSS, A2, M2, D2, SUJ2, S45C, etc.
Standard Dayton, Lane, DIN, ISO, MISUMI, EDM, FIBRO, MOELLER, HASCO, etc.
Size Custom according to drawings or product standards
Place of Origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc.
Tolerance ±0.002mm
Polishness Close to Ra0.2
Hardness HRC60-94 (material-dependent)
Delivery Time 3-5 working days (quantity-dependent) via DHL, UPS, FEDEX, TNT or Ocean Shipping
Main Products Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Product Range
  • Core pin, cavity pin, insert pin, etc.
  • HSS punch, Precision punch, Special-shaped punch
  • Ejector pins, ejector sleeve, two-stage ejector pins, etc.
  • Guide pillars, Guide bushings, Guide post set
  • Slide Core Units, Latch locks, Locating Series
Why Choose Senlan Precision Mould
  • One-stop service solution
  • Competitive pricing
  • Specialized corporate culture
  • Excellent quality control systems
  • Custom requirements fulfillment
  • Extensive experience in mold industry
  • Comprehensive product range
  • Responsive customer service
Company Profile

Founded in 2012, Senlan Precision Mould provides global JIS, DIN, AISI standard mold parts, custom-built mold components, and solutions for plastic mold and die casting mold applications. As a manufacturing factory, we specialize in global standard mold parts including Ejector Series, Slide Core Units, Latch locks, Locating Series, Date Stamps, Slide Retainers, Cooling Series, and mold counters.

With over 15 years of experience, 6 manufacturing plants, and a professional team deeply knowledgeable in global standard mold parts, we possess the capability to meet diverse customer requirements.

Manufacturing Equipment
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop Lathe JINGCHENG YB-15 0.05mm 4 China
Desktop Lathe JINGCHENG YB-25 0.05mm 2 China
OD Grinder HOTMAN FX-03 0.002mm 5 China
ID Grinder HOTMAN FX-05 0.002mm 3 China
Centerless Grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM Drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Packaging & Shipping
Packaging

Outer packing: Cartons with foam packing or wooden boxes

Inner packing: Sponge with plastic bag protection

Payment Terms

T/T, Paypal, Western Union - 50% deposit, balance before shipment

Shipping Methods

DHL, TNT, Fedex available for air freight; Sea shipping also available

Frequently Asked Questions
What information is required for a quote?
Product standard: model + size, or customer drawing specifications.
How do you ensure product quality?
We maintain a dedicated QC department that monitors quality throughout the entire production process until completion.
What if products don't meet quality standards?
We maintain strict quality control and manufacture products to your complete satisfaction.
Do you test goods before delivery?
Yes, we perform 100% QC testing and provide QC reports for all mold parts before delivery.
Can you produce from samples or drawings?
Yes, we can manufacture parts according to your samples or technical drawings.
