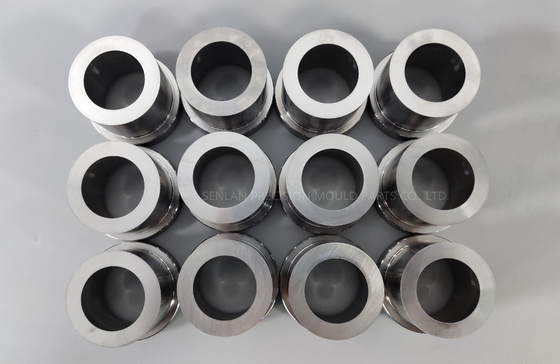

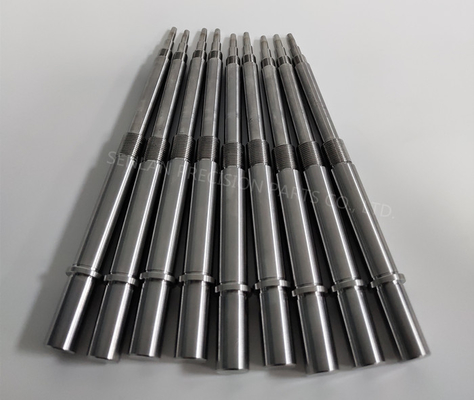

1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover

1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover
1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover 1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover 1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover 1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover

Large Image :  1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 5-17working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover

Description
Type: Milling Or Other Machining Services Tolerence: +/-0.005mm
Surface Treatment: Polishing Application: Packing Mold Parts/Medical Mould Parts
Size: Customized Color: Silver
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Hardness: 48-52HRC
Highlight:

1.2344 Mold Core Pin

,

Stavax Mold Core Pin

,

Medical Core Pin Precision Mould Parts

1.2344 / Stavax Material Mold Core Pin Customized Medical Packaging Cover
Hot Selling Mold Parts 1.2344/Stavax Material Customized Medical Needle Pin/Packaging Cover Mold

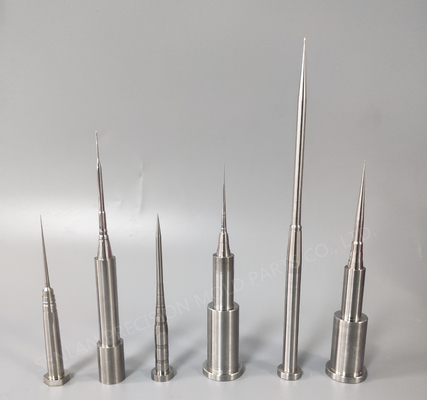

Mold Core Pin Description

A Mold Core Pin is an extended or male portion of the mold which creates the internal surface used in plastic injection molding, particularly in the medical industry. This specific Mold Core Pin is designed for injection molding medical pipettes used in fluid sampling. Mold Core Pins are typically manufactured from M2 steel, High-Strength H13, or other tool steels. These pins require a specific level of toughness and must withstand misalignment during the molding process without breaking. The successful performance of Mold Core Pins largely depends on the grinding process and adherence to essential manufacturing points.

Mold Core Pin Specifications
Material SKD11, SKD61, HSS, M2, D2, SUJ2, S45C
Standard DIN, MISUMI, EDM, MOELLER, HASCO etc
Size Dependent on your drawings or product standards
Place of Origin Dongguan, Guangdong, China
Heat Treatment Available
Surface Work TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Tolerance +/- 0.002mm
Polishness Close to Ra0.2
Hardness Depends on material (HRC45~64)
Delivery Time 3-5 Working days, depends on order quantity. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Core Pin Purchase Process
Production Process Description
1. 3D Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations Including price of mold components for cores & cavities, product weight, payment, lifetime, delivery, etc.
3. Purchasing Order After customer confirms mould design and quotation
4. Making Mold Components Confirm drawing, perform DFM, mold flows and mold detail agreed with customer, start production
5. Production Schedule Weekly feedback to customer with mold progress (pictures)
6. Sample Shoot Provide mold components test samples for confirmation (1-2 pieces), obtain signature sample, then mass production
7. Package Cartons box for parts, or as required
8. Delivery Deliver goods by air or by sea. Express
Manufacturing Equipment for Core Pins
Equipment Type Brand Model Precision Quantity Origin
CNC TAKISAWA NEX-108 0.002mm 4 Japan
WEDM SODICK AQ400LS 0.003mm 2 Japan
WEDM CHMER G435 0.005mm 1 Taiwan
EDM CREATOR CJ-235 0.005mm 4 Taiwan
Mirror EDM SODICK Sodick-AM30LS 0.003mm 2 Japan
Mirror EDM MAKIMO EDGE2 0.002mm 1 Japan
Desktop lathe JINGCHENG YB-15 0.05mm 4 China
Desktop lathe JINGCHENG YB-25 0.05mm 2 China
OD grinder HOTMAN FX-03 0.002mm 5 China
ID grinder HOTMAN FX-05 0.002mm 3 China
Centeless grinder HOTMAN FX-12S 0.001mm 2 China
Surface Grinder SHUGUANG 614 0.001mm 4 China
Surface Grinder SHUGUANG 618 0.001mm 2 China
EDM drilling ZENBANG ZB-03 0.01mm 1 Taiwan
Miller TOPINR AVA 0.01mm 2 Taiwan
Frequently Asked Questions
Q1: How Long Will We Get The Goods?
A: Generally 2-5 days if goods are in stock, or 16-23 days if not in stock, depending on quantity and customization requirements.
Q2: Do You Have Any Office In My Country?
A: We currently have no offices in other countries. However, with 15 years of development, we have become one of the leading manufacturers for plastic mold parts in Dongguan city, exporting to nearly 35 countries. Each component undergoes strict quality control before delivery, and we have never received any complaints from clients.
Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material reports, dimensional reports, heat treatment reports, as well as special reports from third-party inspection companies as required.
Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, and Paypal.
