DC53 Mold Parts Sprue Bushing for Injection Molding
Misumi Standard DC53 Mold Parts Heated Die Casting Sprue Bush Mould for 3D Printing Cooling
We offer several types of sprue bushings including "A" series, "B" series, "U" series, "UV" series, "LN" series, "AR" series, "UR" series, "L" series and high performance sprue bushings. All standard bushings feature a base hardness of 43-45HRc, while the "LN" series includes additional surface treatment achieving approximately 60-62HRc surface hardness. High performance gate bushings are constructed from copper alloy with hardened 420 stainless steel inserts.
Our "PSB" performance sprue bushings are direct replacements for existing Mugang "B" series sprue bushings, and "PSU" type high performance sprue bushings serve as drop-in replacements for existing DME "U" series sprue bushings.
Product Specifications
| Product Name |
Sprue Bushing Mould Parts |
| Material |
DC53 |
| Hardness |
58-60 HRC or dependent on material |
| Polishness |
Ra0.6 |
| Closest Tolerance |
±0.002mm |
| Surface Treatment |
TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, etc. |
| Place of Origin |
China (mainland) |
| Customized Size |
Available |
| Inspection |
100% before shipment |
| Service |
Made-to-order |
Our Main Products
- Core pin, cavity pin, insert pin, etc.
- HSS punch, Precision punch, Special-shaped punch
- Ejector pins, ejector sleeve, two-stage ejector pins, etc.
- Guide pillars, Guide bushings, Guide post set
- Slide Core Units, Latch locks, Locating Series
Why Choose Us
- One-stop service
- Competitive pricing
- Special corporate culture
- Excellent quality control
- Custom solutions to meet your requirements
- Extensive experience in mold industry with wide product range
- Outstanding merchandise and considerate customer service
Company Information
Founded in 2012, Senlan Precision Mould provides global JIS, DIN, AISI standard mold parts, custom-built mold components, and solutions for global plastic mold and die casting mold applications. As a manufacturing factory, we specialize in global standard mold parts including Ejector Series (pins, sleeves, two-stage ejector pins), Slide Core Units, Latch locks, Locating Series, Date Stamps, Slide Retainers, Cooling Series, and mold counters.
With over 15 years of experience, 6 manufacturing plants, and a strong professional team in the global standard mold parts market, we offer comprehensive commodities and services with deep insight into customer requirements.
Manufacturing Equipment
| Equipment |
Brand |
Model |
Precision |
Quantity |
Origin |
| CNC |
TAKISAWA |
NEX-108 |
0.002mm |
4 |
Japan |
| WEDM |
SODICK |
AQ400LS |
0.003mm |
2 |
Japan |
| WEDM |
CHMER |
G435 |
0.005mm |
1 |
Taiwan |
| EDM |
CREATOR |
CJ-235 |
0.005mm |
4 |
Taiwan |
| Mirror EDM |
SODICK |
Sodick-AM30LS |
0.003mm |
2 |
Japan |
| Mirror EDM |
MAKIMO |
EDGE2 |
0.002mm |
1 |
Japan |
| Desktop lathe |
JINGCHENG |
YB-15 |
0.05mm |
4 |
China |
| Desktop lathe |
JINGCHENG |
YB-25 |
0.05mm |
2 |
China |
| OD grinder |
HOTMAN |
FX-03 |
0.002mm |
5 |
China |
| ID grinder |
HOTMAN |
FX-05 |
0.002mm |
3 |
China |
| Centeless grinder |
HOTMAN |
FX-12S |
0.001mm |
2 |
China |
| Surface Grinder |
SHUGUANG |
614 |
0.001mm |
4 |
China |
| Surface Grinder |
SHUGUANG |
618 |
0.001mm |
2 |
China |
| EDM drilling |
ZENBANG |
ZB-03 |
0.01mm |
1 |
Taiwan |
| Miller |
TOPINR |
AVA |
0.01mm |
2 |
Taiwan |
Packaging
Outer packing: Cartons with foam packing or wooden box
Inner packing: Sponge with plastic bag
Payment & Shipping
Payment terms: T/T, Paypal, Western Union (50% deposit, balance before shipment)
Shipping methods: DHL, TNT, Fedex available
Delivery: Shipping by sea or by air

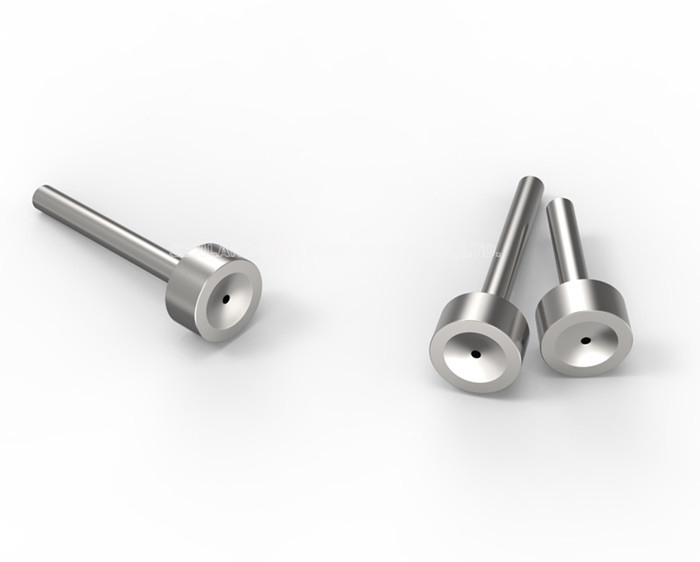

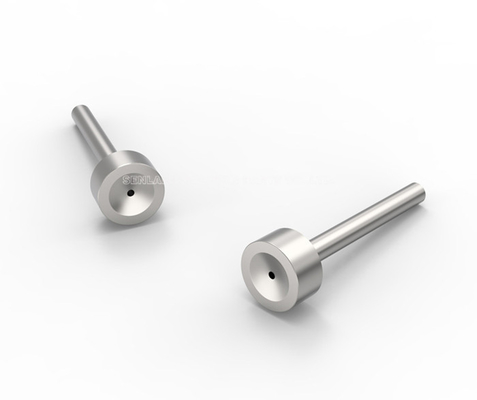

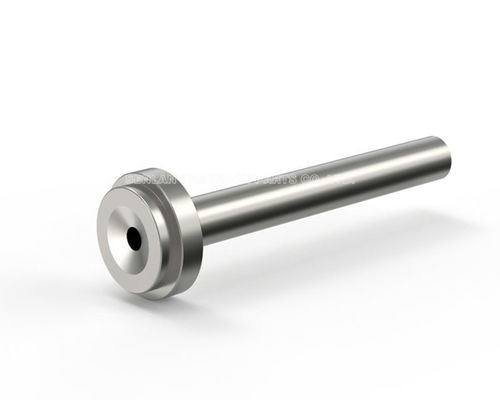

Product Image
