Product Details:
|
| Product Name: | Sprue Bushing | Material: | SKD61 |
|---|---|---|---|
| Hardness: | 48-52HRC | Application: | Plastic Mould |
| Tolerance: | +/-0.01mm | Standard: | HASCO,MISUMI,JIS,DME,DIN |
| High Light: | HASCO Plastic Injection Parts,HASCO Injection Mold Components,SKD61 Injection Mold Components |
||

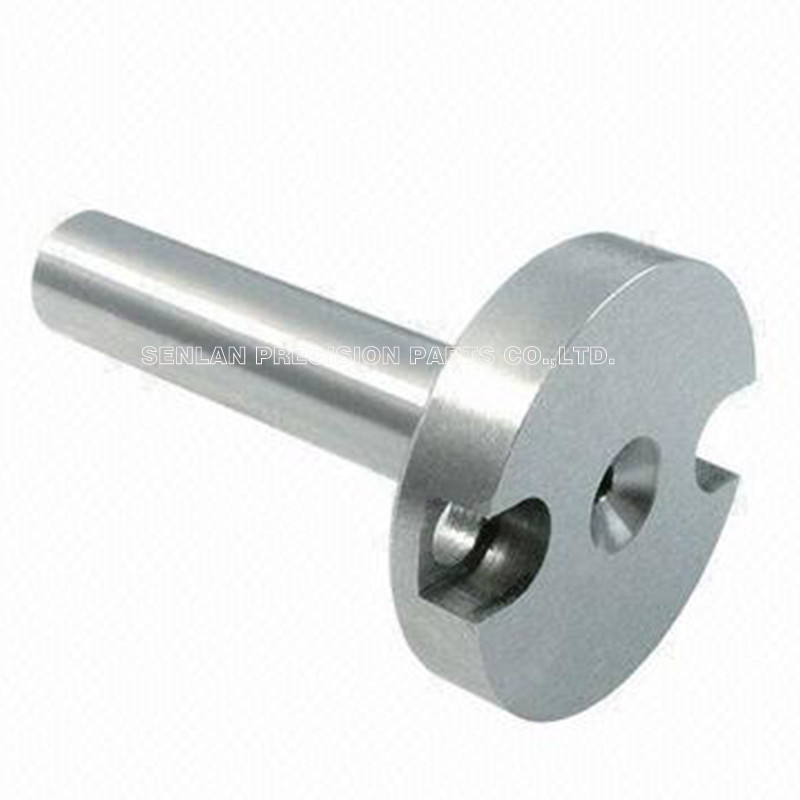

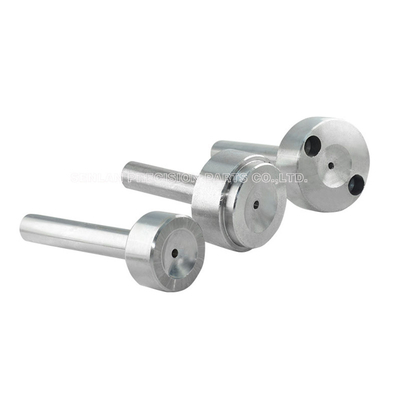

Z51 HASCO Sprue Bushing Injection Mold Components Nozzle Tips
A sprue bushing made of hot working die steel SKD61 features the properties of heat/wear resistance.
To prevent leakage of plastic materials, the feed throat is usually designed into a chamfer R. The SR (spherical radius) of the mold sprue should be 1 – 2mm larger than the sr of the injection nozzle. Please refer to injection machine specs for the sr of the injection nozzle.
Feature of Sprue Bushing
| Material | Inner Hardness | Surface Hardness | Heat Treatment |
| S45C | SR HRC50~55 | Partial | |
| SKD11 | HRC58~62 | HRC58~62 | Vacuumed |
| SKD61 | HRC34~38 | HV900~1100 | Nitrided |
| HRC50~54 | HRC50~54 | Vacuumed | |
Manufacturing Equipments
OD Grinding,ID Grinding, CNC Milling, CNC turning, Wire cutting, EDM, Drilling, etc.
Delivery time
7-15 days, depending on quantity.
Payment terms
50% T/T before production, 50% TT before shipment.
Inspection Equipments
CMM, 2.5D, Projector, Calipers, Hardness Tester, Micrometer, Altimeter, etc.
Tolerance of Sprue Bushing
+-0.05mm, Depends on customer’s requirements.
Drawing Format of Sprue Bushing
PDF/DWG/DXF/IGS/STEP,etc
Certificate
ISO9001-2008
Packaging of Sprue Bushing
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.
Application field
Parts are used on cosmetic packaging, medical, Daily necessities packaging, automobile etc.
Our advantages
(1). Competitive price with good quality
(2). Low MOQ (10pcs is kindly accepted in some special conditions)
(3). Customized size and OEM available
(4). Precise tolerance: +/-0.05mm
(5). 100% inspection
Sales team
Professional sales team make sure we could offer you great service
Corporate Culture
Our mission: help our costumer boost its competitiveness,help our employees be successful and rich,create more values for our society.
Our vision: become first-class enterprise in Mould Accessory Industry worldwide.
Our tenet: responsibility, technology,quality,punctuality,honesty,service.
Management concept:Cohering hearts and minds with cooperate-culture,regularizing behaviour with systems and regulations.
Work shop
With high precision machining equipments and experienced technicians, make sure all the dimensions meet tolerance requirement.
Inspection Equipment
Complete QC system and strict test means ensure the high grade of product quality.
Main products
Q:Are you trading company or manufacturer?
A:We are factory.
Q:How long is your delivery time?
A: Generally it is 10-20 days if the goods are not in stock, it is according to quantity.
Q:What is your quote elements?
A:Product standard: model + size, or customer Drawing.
Q:How can you ensure the quality?
A:We have QC department to control the quality from the begining of production until goods finish.
Q:If you make poor quality goods,will you refund our fund?
A:As a matter of fact, we wont take a chance to do poor quality products. Meanwhile, we manufacture goods quality products until your satisfaction.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% QC test and QC report for mold parts before delivery.
Q. Can you produce according to the samples or drawings?
A: Yes, we can produce parts by your samples or technical drawings.
