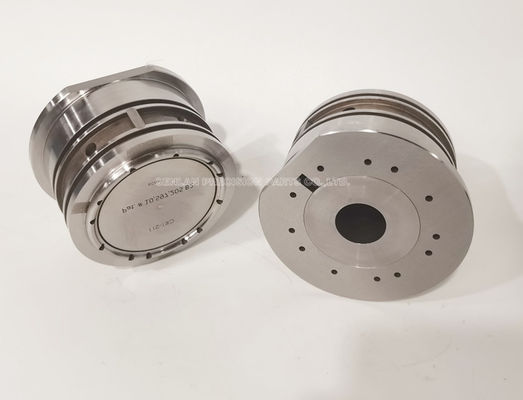

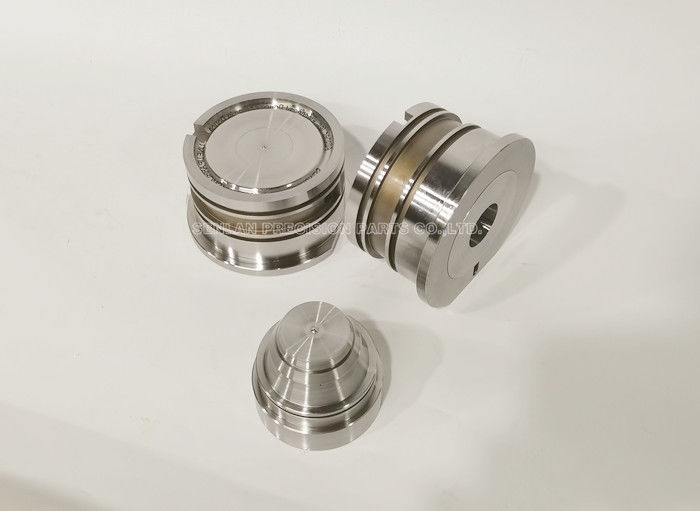

Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing

Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing
Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing

Large Image :  Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 10-20working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing

Description
Product Name: Round Shape Precision Mold Parts Tolerance: +/-0.005mm
Processing: Lathe Processing/ Grinding/ EDM Machining, Etc. Surface Finish: Polishing
Size: Customized Color: Silver
Highlight:

S136 Precision Mold Parts

,

HRC52 Precision Mould Parts

,

S136 Injection Molding Parts

Round Shape S136 Precision Mold Parts With 48-52 HRC EDM Processing
Product Overview

High-precision round shape mold parts manufactured from S136 stainless steel with EDM processing, achieving 48-52 HRC hardness for superior performance in demanding applications.

Key Manufacturing Processes
  • Internal and external lapping
  • Lathe machining
  • Electrical Discharge Machining (EDM)
Technical Specifications
Type Precision mold parts machining
Material Stainless steel, S136
Surface Finish Polishing, mirror polishing, PVD coating, DLC coating
Application Medical, electrical, daily packing
Size Customized
Tolerance 0.005 mm or as required
Service Fully customized service
Precision Parameters
  • Accuracy of EDM: 0.002 mm
  • Accuracy of Grinding processing: 0.001 mm
  • Tolerance: 0.005 mm
  • Custom tolerances available per drawings
Production Equipment
CNC milling machine
Lathe machine
EDM machine
Internal-external machine
Wire cutting machine
Grinding machine
Testing & Quality Control

Comprehensive testing using advanced measurement equipment:

  • Measuring Projector
  • Mitutoyo Digital Height Gauge
  • Feeler Gauge & Plug Gauge & Thread Gauge
  • Hardness Inspection Instrument
  • Salt spray testing machine
  • Roughness Tester
Quality Control Process
  • Material incoming: 100% inspection
  • Rough Finished: 100% inspection
  • Heat treatment: random inspection
  • Face grinding: 100% inspection
  • Center-less cylindrical grinding: 100% inspection
  • OD/ID grinding: 100% inspection
  • EDM: 100% inspection
  • Wire-Cutting: 100% inspection
  • Packing: Final 100% inspection before shipment
Why Choose Us
  • Specialized manufacturer of precision core pins, cavity pins, and insert pins
  • 8+ years experience in stamping die parts, injection die parts, auto parts, and metal-working products
  • Advanced production equipment with experienced operators
  • Extensive OEM and ODM experience
  • Competitive pricing, superior quality, and fast delivery
Our Product Range
Core pin, cavity pin, insert pin
HSS punch, Precision punch, Special-shaped punch
Ejector pins, ejector sleeve, two-stage ejector pins
Guide pillars, Guide bushings, Guide post set
Slide Core Units, Latch locks, locating Series
Packaging & Delivery

Packaging: PE film covered first, plastic box, then carton. Flexible packaging management to ensure product safety and customer satisfaction.

Delivery Time: 7-15 working days for ejector pin types, specific timing based on quantity.

Shipping: Express services (DHL, UPS, FEDEX) with 3-5 day delivery. Ocean shipment available for larger quantities. Proof of shipment with tracking numbers provided.

Frequently Asked Questions
What is your quote elements?
Product standard: model + size, or customer drawing.
How can you ensure the quality?
We have QC department to control the quality from the beginning of production until goods finish.
If you make poor quality goods, will you refund our fund?
We maintain strict quality standards and manufacture goods to your satisfaction.
Do you test all your goods before delivery?
Yes, we have 100% QC test and QC report for mold parts before delivery.
Can you produce according to the samples or drawings?
Yes, we can produce parts by your samples or technical drawings.
