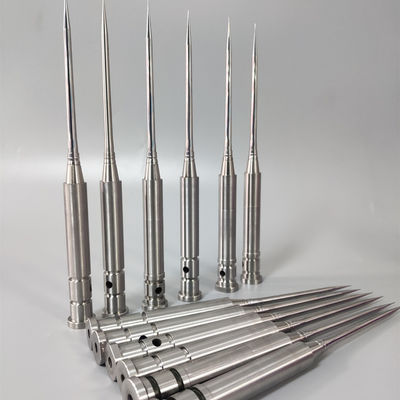

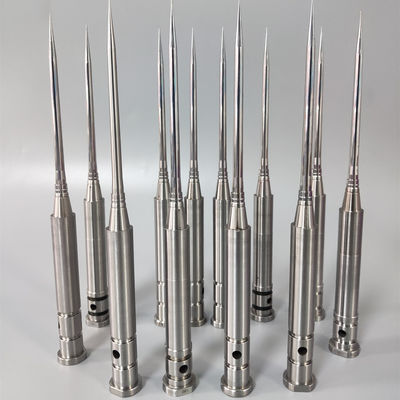

Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding

Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding
Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding
Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding

Large Image :  Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20000Pcs/Week
Contact Now

Bohler M314 Stainless Steel Mold Core Pin with HRC50 Hardness and +/-0.002mm Accuracy for Injection Molding

Description
Material: Bohler M314 Stainless Steel Hardness: HRC50
Accuracy: +/-0.002mm Surface Treatment: Polished, Tin, Ticn, Crn, DlC Etc
Parts Name: Mold Core Pin Application: Plastic Injection Mould
Standard: JIS, DIN, En, ASTM, AISI Design Software: Auto Cad, Autocad/Ug/Solidworks, CAD
Dimension: Customized Processing: CNC Lathe, Grinding Etc
Highlight:

M314 Stainless Steel Mold Core Pins

,

HRC50 Mold Core Pins

,

M314 Stainless Steel Core Pins

M314 Stainless Steel Mold Core Pins Small Custom Machined Bohler

Small Custom Machined Bohler M314 Stainless Steel Mold Core Pins with Ticrn Surface Treatment

Product Features
  • High Precision: High thermal conductivity reduces the need for complex cooling designs, requiring no additional heat treatment and can be machined using conventional methods or EDM
  • Longer Life Usage: High resistance to thermal stress, wear and abrasion ensures long life under virtually any molding conditions, with reduced metal-to-metal pick up and wear
  • Wider Range Of Size Available: Available in series length, width and tolerance according to different client requirements
Product Specifications
Business Type Factory/Manufacturer
Material Alloy, Brass, Stainless Steel, Tungsten, Steel and others as per requirements
Equipment Grinder, Mirror Spark Machine, Carved high-speed CNC processing center, High-precision heartless grinder, Milling machine, Outer diameter grinding puncher etc
Quotation According to your drawing (size, material, processing content, etc)
Processing CNC turning, milling, drilling, CNC Milling, Wire cutting etc
Testing Equipment CMM triple meter, Projector, Tool microscope, Altimeter, Caliper, Roche hardness meter, Surface roughness meter etc
Tolerance/Surface Roughness +/-0.002 - 0.01mm (Customize available) | Ra0.2 - Ra3.2 (Customize available)
Application Automotive, Medical, Consumer, Home appliance, Electronic, Cosmetics etc
Surface Treatment Anodizing, Sandblasting, Powder Coating, Zinc/Chrome/Gold Plating, Polish, Nitriding, Heat treatment etc
Size Depends on your drawing or product standards
Drawing Format Jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. etc or samples
QC 100% inspection before shipment
Samples Leading Time 7~15 days
Packaging & Delivery

Packaging Details: Plastic bags, cartons or as customer's requirement.

Delivery Details: Shipped in 3-7 days after payment.

Frequently Asked Questions
Q1: What Is Your Quote Elements?
A: Product standard: model + size/or drawing + quantity
Q2: Before Shipment How To Make Sure the Quality?
A: We will provide various reports, including material report, dimensional report, heat treatment report etc, or through third party as required
Q3: How Do I Know About The Delivery?
A: We will inform you of the tracking number once we get it from shipping agent. We will keep updating the latest delivery information for you
Q4: What Will You Do For After Sales?
A: When you apply any requirement, we will follow up and await your feedback. Any question related to our products, our experienced engineers are ready to help
