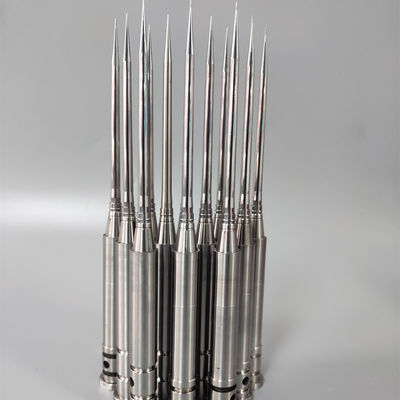

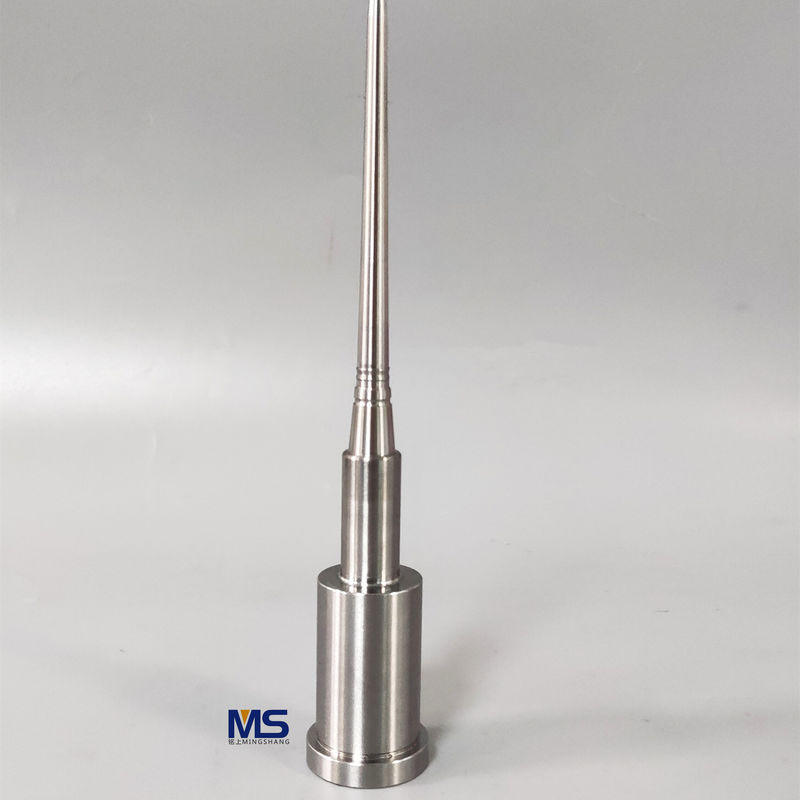

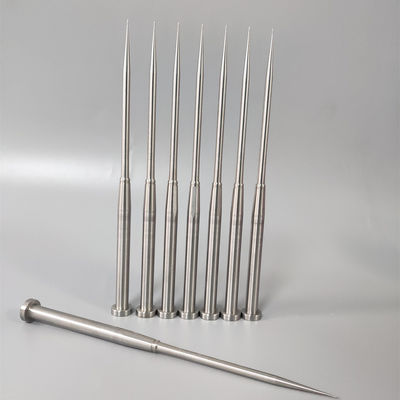

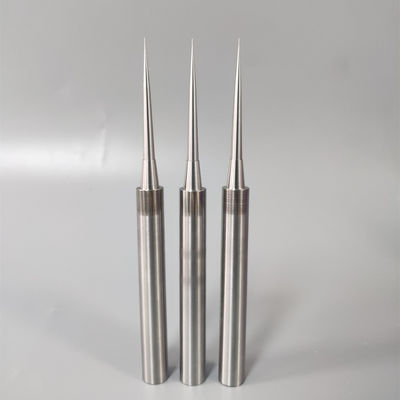

HASCO Standard Syringe Mold Core Pins | Medical Grade Injection Tooling

Product Overview

Stainless steel precision CNC machined parts with integrated washer features are designed for injection molding systems requiring tight dimensional control and stable assembly performance. Manufactured with controlled tolerances up to ±0.01 mm, these components are suitable for mold structures where accuracy, repeatability, and corrosion resistance are critical. Senlan Precision supplies fully customized CNC machined parts strictly based on customer drawings for industrial plastic mold applications.
(Approx. 75 words)

Key Features & Technical Advantages

• Precision CNC machining with tolerance up to ±0.01 mm

• Stainless steel material for corrosion and wear resistance

• Integrated washer geometry for stable load distribution

• High dimensional repeatability for mold assembly consistency

• Suitable for long-cycle and high-frequency mold operation

• Built-to-print manufacturing, no standard parts

Applications & Industry Use

• Injection mold assemblies for packaging and closure tooling

• Mold fastening and positioning components

• Medical plastic mold systems requiring clean and stable materials

• Precision mold sub-components for industrial plastic parts

• Customized CNC parts for multi-cavity mold structures

Mold Structure & Design Description

These stainless steel CNC machined parts are typically used as functional structural elements within injection mold assemblies, often combined with washers to improve contact stability and reduce localized stress. Washer dimensions, thickness, and surface finish are produced according to drawing specifications to ensure proper load transfer and alignment within the mold structure.

Manufacturing Capability & CNC Machining

Senlan Precision operates advanced machining and finishing equipment, including high-precision systems from MAKINO (Japan) and HARDINGE (USA).

Manufacturing capabilities include:

• CNC turning and milling of stainless steel components

• Precision surface finishing and deburring

• Tight tolerance control up to ±0.01 mm

• Batch consistency for multi-cavity mold applications

• Drawing-based production with full dimensional verification

Custom Development & OEM Cooperation

We provide OEM / Built-to-Print CNC machining services only.

Standard cooperation workflow:

1. Customer drawing or 3D model submission

2. Engineering review and tolerance confirmation

3. Material and process definition

4. Precision CNC machining and inspection

5. Packaging and delivery

No catalog parts or off-the-shelf designs are supplied.

Quality Control & Export Experience

• Incoming material inspection for stainless steel grades

• In-process dimensional checks during CNC machining

• Final inspection using calibrated measuring equipment

• Traceable quality records per production batch

• Stable export experience supporting international mold manufacturers

Related Products

• Precision mold inserts and structural components

• CNC machined fastening parts for injection molds

• Stainless steel mold sleeves and spacers

• Customized CNC parts for multi-cavity mold systems

Technical FAQ

Q1: Is this product supplied as a standard part?
No. All parts are manufactured strictly according to customer drawings.

Q2: What tolerance level can be achieved?
Typical tolerance is ±0.01 mm, depending on geometry and design requirements.

Q3: Can washer dimensions be customized?
Yes. Washer size, thickness, and surface finish are produced per drawing.

Q4: Are these parts suitable for medical mold applications?
Yes, stainless steel material and precision machining support medical mold usage where applicable.

Request a Quote

To receive a quotation, please provide your technical drawings and specifications.
Our engineering team will review the design and respond with manufacturing feedback.
