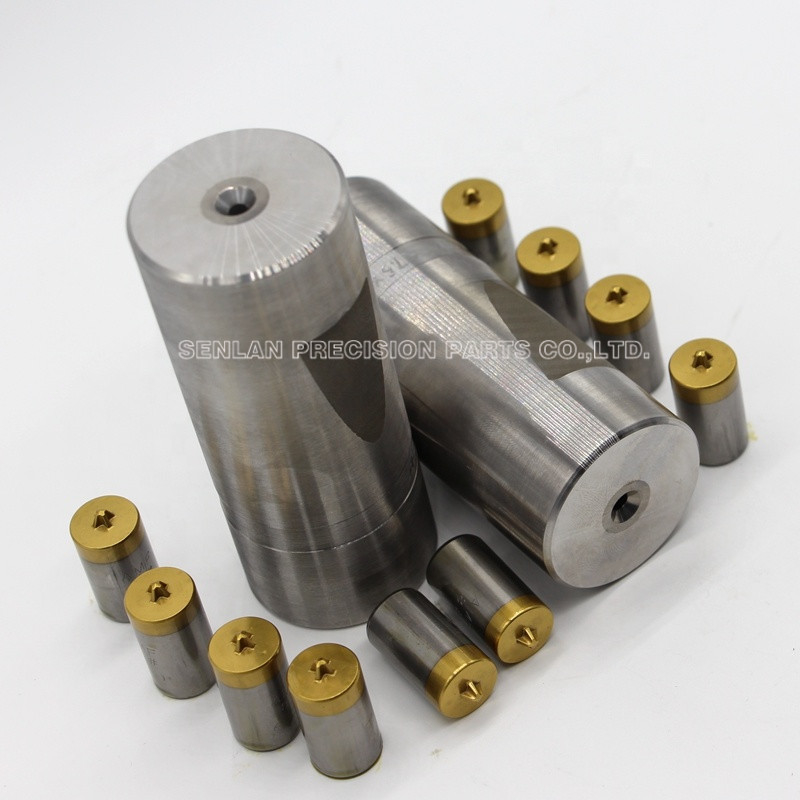

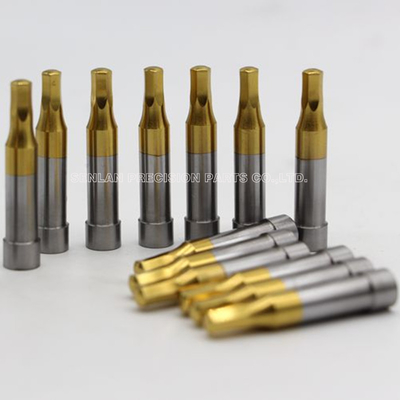

Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds

Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds
Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds

Large Image :  Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil, packed in carton box
Delivery Time: 5-15 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 2000pcs/week
Contact Now

Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds

Description
Product Name: Punch Pins Material: Tungsten Carbide
Tolerance: +/-0.01mm Hardness: 60-80HRC
Application: Stamping Punch Die Dimensions: Customized
Highlight:

0.01mm Punching Pins

,

Tungsten Carbide Punching Pins

,

0.01mm Die Pins And Bushings

Tungsten Carbide Die Punching Pins Ejector Punch For Stamping Moulds
Our precision tungsten carbide punching pins are engineered for stamping mould applications with exceptional accuracy and durability.
Precision Manufacturing Capabilities
  • Manufacturing diameters from 0.004 to 1.250 inches while holding tolerances down to 0.0001 inches
  • Manufacturing lengths up to 12 inches long
  • Surface finishes down to 2 micro (Ra or RMS)
  • Metric manufacturing available for special and custom parts
  • Straightness up to 0.0004 T.R.I., with potential for tighter tolerances based on part design
Product Specifications
Material Tungsten Carbide
Hardness 60-80HRC or dependent on material requirements
Heat Treatment Available
Service Made-to-order
Surface Treatment TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating, and other options available
Closest Tolerance ±0.01mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm
Manufacturing Process
  1. Drawing & Cutting
    Raw materials are drawn to desired diameter sizes using wire drawing machines, then cut into rod-shaped punching pin blanks of fixed lengths.
  2. Heat Treatment
    Blanks are straightened on a straightening platform with dial gauge measurement, then heated to 800-1300°C for 2-5 minutes in high-frequency electric or salt bath furnaces. Oil quenching achieves tip hardness of Hv590-800, followed by low-temperature tempering.
  3. Grinding Processing
    Punching pins are clamped on machine tool spring collets, with grinding forming processes performed according to specific angular requirements for various needle bases.
  4. Polishing
    Surface cleaning removes oil, rust, and other contaminants to ensure optimal surface quality.
  5. Inspection & Storage
    Comprehensive quality inspection against required specifications, with qualified products packaged and stored in warehouse facilities.
Quality & Service Commitment
Team Expertise: Our experienced workforce includes skilled operators, programmers, QC specialists, sales professionals, and management personnel working cohesively to fulfill customer requirements.
Technical Development: Monthly skill exploration training sessions facilitate knowledge sharing among engineers, programmers, and operators to continuously advance machining capabilities.
Customer Communication: Our sales team members are fluent English speakers with comprehensive machining knowledge, ensuring clear understanding and effective communication of your requirements.
Main Product Categories
  • Core pins, cavity pins, insert pins, and related components
  • HSS punches, precision punches, special-shaped punches
  • Ejector pins, ejector sleeves, two-stage ejector pins
  • Guide pillars, guide bushings, guide post sets
  • Slide core units, latch locks, locating series components
Frequently Asked Questions
Are you a trading company or manufacturer?
We are the factory manufacturer.
How long is your delivery time?
Standard delivery is 10-20 days for non-stock items, depending on quantity requirements.
What information do you need for quoting?
Product standards including model and size specifications, or customer technical drawings.
How do you ensure quality?
Our QC department maintains quality control throughout the entire production process until completion.
Do you provide refunds for quality issues?
We maintain strict quality standards and manufacture products to customer satisfaction, minimizing quality concerns.
Do you test all goods before delivery?
Yes, we perform 100% QC testing and provide quality control reports for all mold parts before delivery.
Can you produce according to samples or drawings?
Yes, we can manufacture parts based on your samples or technical drawings.
