CNC Machining H13 Threaded Bush Mould Parts With HRC 48 To HRC 52

Precision flange yokes are CNC machined coupling components designed to connect rotating shafts and transmit torque with stable alignment and controlled tolerances for reliable assembly fit and consistent rotational accuracy.

Flange yokes are coupling components used to connect rotating shafts and transmit torque with stable alignment. In high-speed or high-load assemblies, even small deviations in concentricity, flatness, or bolt-hole positioning can create vibration, premature wear, and inconsistent performance. Our precision flange yokes are CNC machined to customer drawings with controlled tolerances to support reliable assembly fit and consistent rotational accuracy.

As a custom precision machining manufacturer, we produce flange yokes and related coupling parts with strict control over datums, concentricity/runout, face flatness, and mounting interfaces. Whether you need prototypes or production batches, we focus on repeatability, documentation, and stable quality for demanding mechanical applications.

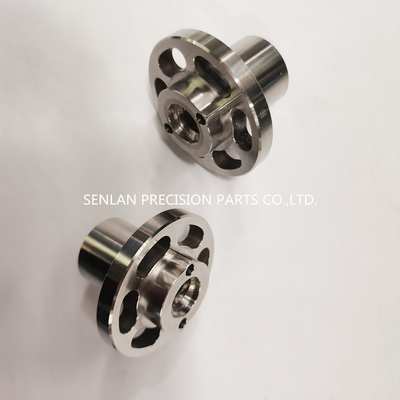

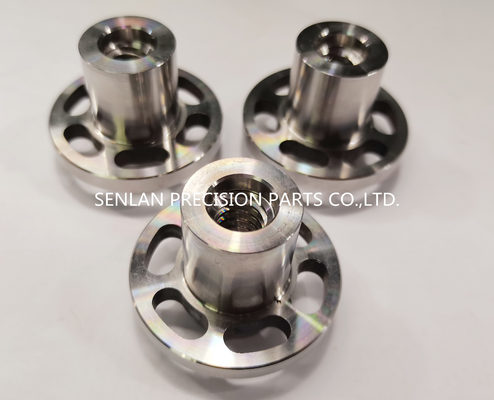

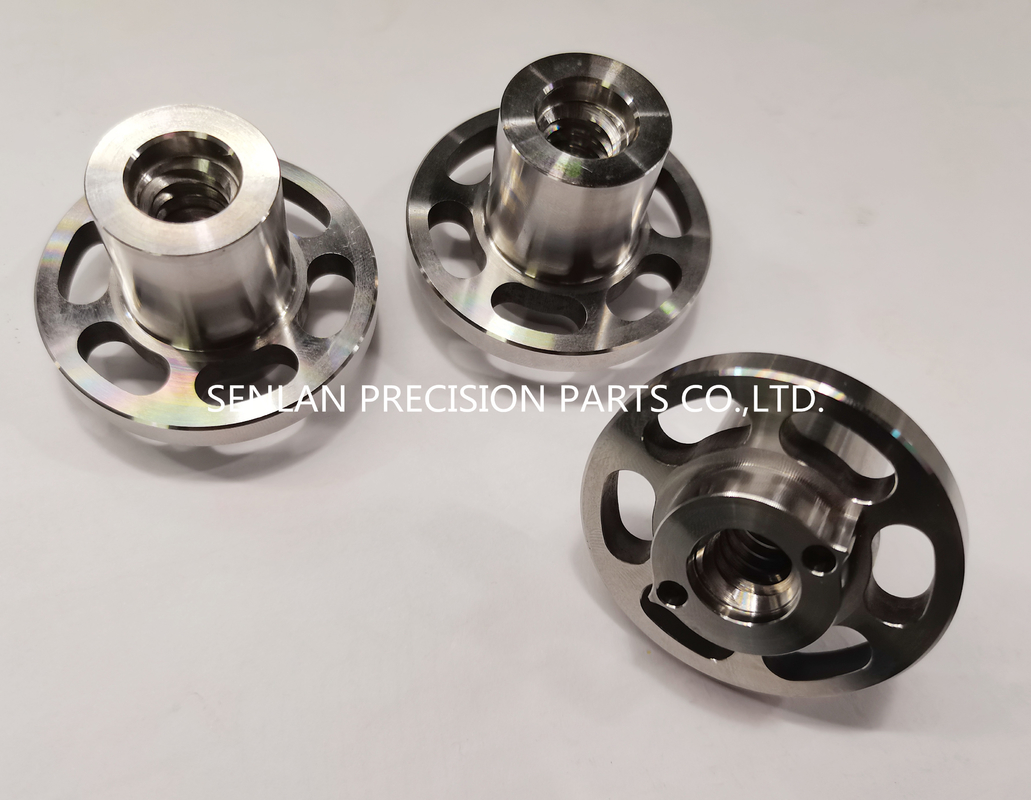

A flange yoke is a machined coupling element typically featuring a flanged mounting face and a hub section that interfaces with a shaft or mating coupling. Depending on the design, it may include internal threads, pilot diameters, bolt circles, weight-reduction pockets, and balancing-related geometry.

• Transmit torque between connected components
• Maintain coaxial alignment to reduce vibration and wear
• Provide a stable mounting interface via flange face and bolt pattern
• Support repeatable assembly and serviceability in mechanical systems

• Flange face with bolt circle / mounting holes
• Pilot diameter for accurate centering
• Hub section with internal/external threading or shaft interface geometry
• Machined pockets or lightening holes to optimize weight and stiffness
• Surface finish and edge control for safe handling and consistent fit

Flange yokes are commonly produced from alloy steels, stainless steels, or other engineering metals based on torque requirements, corrosion exposure, and weight targets. Heat treatment and surface finishing can be applied according to your specification to improve strength, wear resistance, and corrosion performance.

Precision flange yokes are used in coupling and power transmission assemblies, including:

• Shaft coupling systems requiring accurate alignment
• Rotating assemblies where runout control is critical
• Custom mechanical interfaces for OEM equipment
• Prototype-to-production programs for precision machined coupling parts
• Replacement components for maintenance and upgrades

Exact equipment varies by customer design; we manufacture strictly to your drawings and requirements.

Flange yokes combine multiple critical features—flange face, bolt pattern, pilot, and hub geometry—so process control and inspection are essential.

• CNC turning for hub and coaxial features
• CNC milling for bolt patterns, pockets, and key geometries
• Grinding or lapping for face flatness (as required)
• Deburring and edge control for assembly safety
• Optional heat treatment coordination and surface finishing

• Concentricity/runout control between pilot, hub, and mounting datums
• Face flatness and perpendicularity for stable flange mounting
• Accurate bolt circle positioning and hole tolerances
• Surface finish control on pilot and mating interfaces
• Dimensional inspection aligned with your GD&T and critical dimension list

• Dimensional inspection reports available
• Material certificates and heat treatment records upon request
• Traceability marking options if required

More stable rotation and less vibration
Accurate runout and concentricity reduce imbalance-related vibration and improve assembly stability.

Reliable fit and faster assembly
Controlled flange faces, pilots, and bolt patterns reduce rework and ensure repeatable installation.

Longer service life for bearings and connected components
Better alignment reduces uneven loading, improving the lifespan of shafts, bearings, and couplings.

Consistent quality from prototype to production
Repeatable CNC processes and inspection support scalable supply without performance drift.

• 2D drawing (PDF/DWG) and 3D CAD (STEP/IGES)
• Material requirement (or load/environment details for recommendation)
• Quantity and target lead time
• Critical tolerances and GD&T (runout, concentricity, flatness, perpendicularity)
• Bolt circle details (hole size, count, PCD, positional tolerance)
• Pilot diameter and fit requirement
• Shaft interface details (thread, bore, keyway, spline, etc., if applicable)
• Surface finish/coating requirements
• Inspection/document needs (FAI, report format, traceability)

• What is a flange yoke used for?
  A flange yoke is used to connect components in a rotating assembly, providing a flanged mounting interface and a hub section for torque transmission and alignment.
• Which tolerances matter most for flange yokes?
  Most commonly runout/concentricity between rotating features, face flatness/perpendicularity, and bolt-hole positional accuracy—because these affect vibration and assembly fit.
• Can you manufacture custom flange yokes from prototype to production?
  Yes. We support prototype runs, small batches, and production quantities with consistent machining and inspection control.
• Do you provide inspection reports and material certificates?
  Yes. Inspection reports and certificates can be provided upon request.
