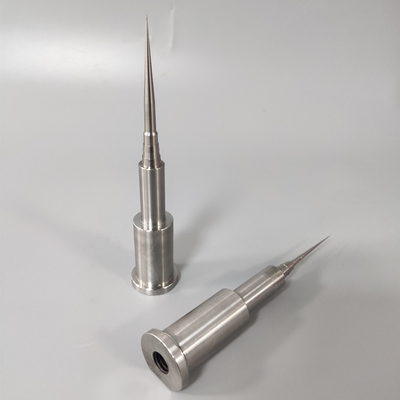

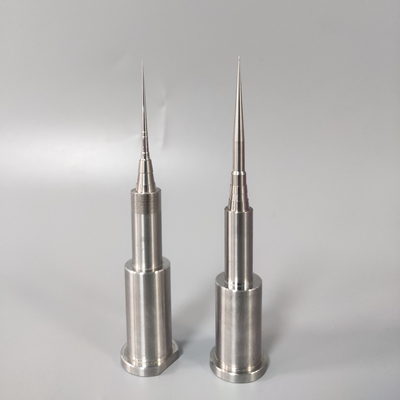

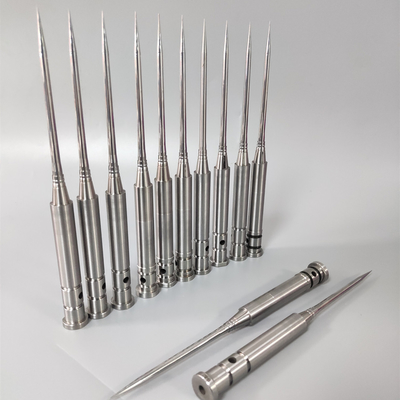

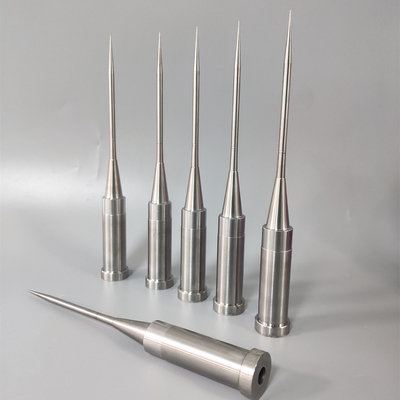

Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling

Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling
Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling
Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling

Large Image :  Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling

Description
Material: Bohlor M333 Hardness: HRC45
Accuracy: +/-0.002mm Surface Treatment: Polished, Tin, Ticn, Crn, DlC Etc
Parts Name: Mold Core Pin Application: Plastic Injection Mould
Standard: JIS, DIN, En, ASTM, AISI Design Software: Auto Cad, Autocad/Ug/Solidworks, CAD
Dimension: Customized Processing: CNC Lathe, Grinding Etc
High Light:

HRC45 Mold Core Pins

,

Bohlor M333 Mold Core Pins

,

HRC45 Custom Core Pins

Custom High Hardened Mold Core Pins For Medical Cavity Rubber Tooling



Customized High Hardened Die Steel Mold Core Pins for Medical Cavity Rubber Tooling



The Introduction Of Mold Core Pin

Be very careful when selecting the type of pin to use. I found one supplier that says its Mold Core Pins are through-hard but specify a surface hardness of 62 to 65 Rc, and a core hardness of 50 to 52 Rc. Additionally, since we are only human, you will find discrepancies between what is specified in a supplier’s catalog, its website, and the actual product itself. It is always a good idea to check the diameter of any pin to four decimal places, and occasionally check the Rockwell hardness on the diameter and in the center of the face. If you buy molds offshore, you might be very concerned about the measurements you get. you might also be surprised with the measurements you get from a domestic supplier that purchases its pins offshore



Mold Core Pins are typically made of H-13 or M-2 tool steel. The H-13 pins have a standard hardness of 30 to 35 Rc throughout. Higher hardness H-13 Mold Core Pins are also commercially available with a 50 to 55 Rc hardness, and M-2 pins with a 60 to 63 Rc hardness throughout. In cases where the Mold Core Pin butts off against the cavity or another pin, i prefer the harder hardness. In cases where the Mold Core Pin enters a hole in the cavity or other component, I prefer the softer Mold Core Pins, which will wear faster. It is cheaper to replace the Mold Core Pin if it wears than it is to repair a worn hole in the cavity



Specification Of Mold Core Pin:

Product name
Mold Core Pin
Materials
SKD61/SKH51/SKD11/Stavax/Bohler/D2/A2 etc
Hardness
58~60HRC
Standard
MISUMI, EDM,HASCO ect
Tolerance
±0.002mm
Coating
TiCN, TiN, Aitain, Ticrn, Nitriding, Black Coating etc available
Production Address
Dongguan, Guangdong, China
Lead Time
Sampling: 7-10 workdays
Normal making: 10-12 workdays
Complex design/making: 15-20 workdays
Order Process
Customer inquiries → Provide Spec./CAD/3D drawing → Engineer check and quote → Offer PI → Customer Send PO → 50% advanced
payment(100% for First time cooperation) → Factory production process → QC passed → Packing and deliver at the first time → Fly to customers' hands soon
After-sell Service
Contact us if have any question after receiving the samples and products, our team will try best to offer you the best quality





Our Services:

1. More than 15 years professional manufacture experience in this field

2. EDM processing part, our core of EDM processing part reflect on the dimensional accuracy(2-3um), copy accuracy and surface roughness Ra0.3), which are able to achieve the mold part demand for Medical Plastic Parts, Cosmetics, Daily Packaging etc

3. WDM-LS processing part, accuracy 0.0015-0.003mm, roughness Ra<0.5um

4. Grinding part, special guys responsible for the equipments daily maintenance, make sure them work smoothly, Maximum the grinding accuracy <1um

5. Custom nonstandard parts, we strict follow your drawings to produce parts so it can perfect fit your machine, all the parts accuracy can roughness<Ra0.03, grinding<1um



FAQ:

Q1: Are You Trading Company Or Manufacturer ?
A: We are factory



Q2: How Long Is Your Delivery Time?
A: Generally it is 1-2 days in stock. or it is 4-5 days if the goods are not in stock, it is according to quantity



Q3: Do You Provide Samples ? Is It Free Or Extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight



Q4: What Is Your Terms Of Payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, 70% balance before shippment
