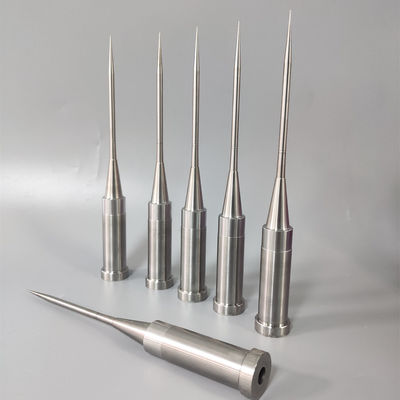

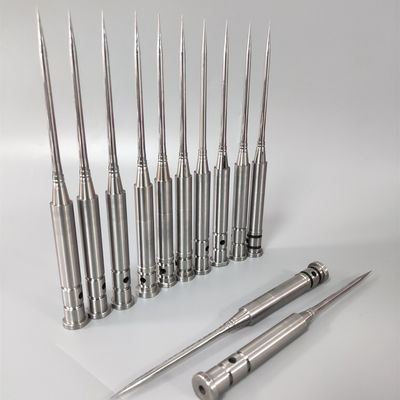

Custom High Hardened HRC45 Mold Core Pin for Medical Cavity Rubber Tooling with Precision Dimensions

Careful selection of pin types is crucial for optimal performance. Some suppliers claim their Mold Core Pins are through-hardened but specify surface hardness of 62-65 Rc with core hardness of 50-52 Rc. Discrepancies between supplier catalogs, websites, and actual products are common, so it's essential to verify diameter measurements to four decimal places and occasionally check Rockwell hardness on both diameter and center face.

Mold Core Pins are typically manufactured from H-13 or M-2 tool steel. Standard H-13 pins feature 30-35 Rc hardness throughout, while higher hardness options include H-13 pins at 50-55 Rc and M-2 pins at 60-63 Rc hardness. For applications where pins butt against cavities or other pins, harder hardness is preferred. When pins enter holes in cavities or other components, softer pins are recommended as they wear faster, making pin replacement more cost-effective than cavity hole repair.

1. Customer inquiries
2. Provide specifications/CAD/3D drawing
3. Engineer check and quote
4. Offer PI
5. Customer Send PO
6. 50% advanced payment (100% for first time cooperation)
7. Factory production process
8. QC passed
9. Packing and deliver at the first time
10. Fly to customers' hands soon

Contact us with any questions after receiving samples and products. Our team is committed to providing the highest quality service and support.

• More than 15 years professional manufacturing experience
• EDM processing with dimensional accuracy (2-3um), copy accuracy and surface roughness Ra0.3, meeting mold part demands for Medical Plastic Parts, Cosmetics, Daily Packaging etc
• WDM-LS processing with accuracy 0.0015-0.003mm, roughness Ra<0.5um
• Grinding parts with maximum accuracy <1um
• Custom nonstandard parts following your drawings precisely with roughness<Ra0.03, grinding<1um

A: We are factory

A: Generally 1-2 days for stock items, or 4-5 days for non-stock items depending on quantity

A: Yes, we offer samples free of charge but customers pay freight costs

A: Payment <=1000USD: 100% in advance. Payment >=1000USD: 30% T/T in advance, 70% balance before shipment
