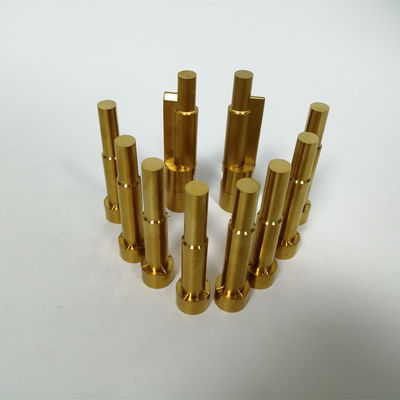

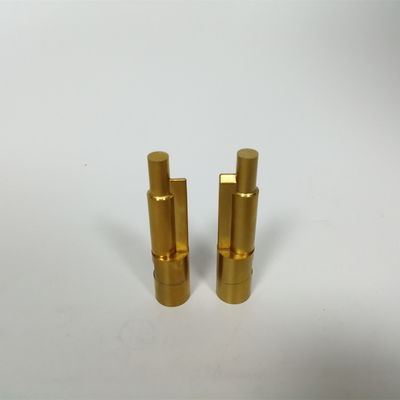

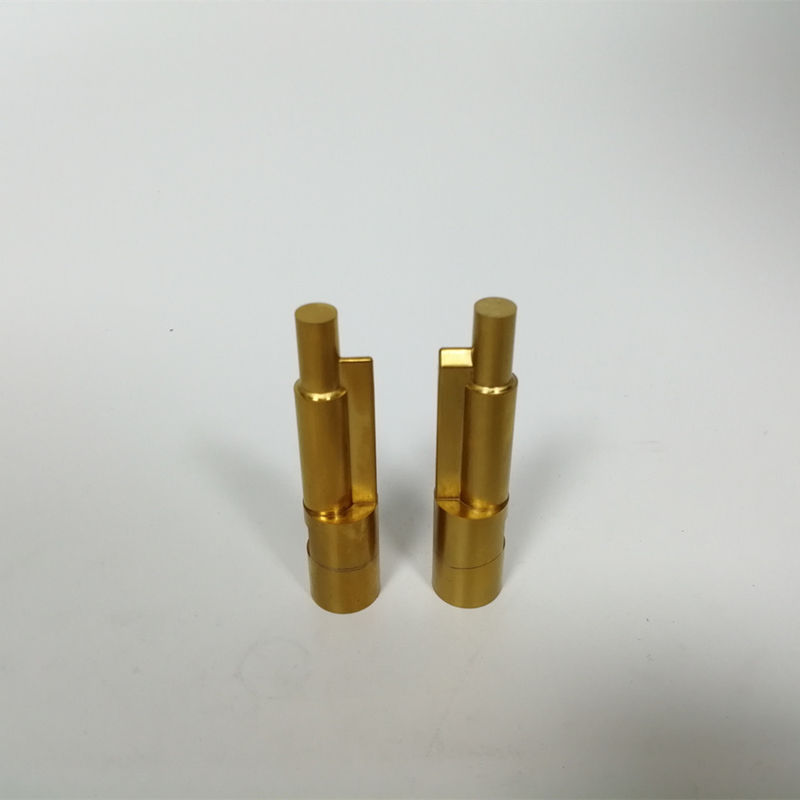

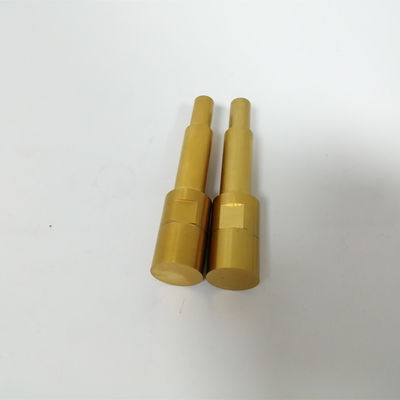

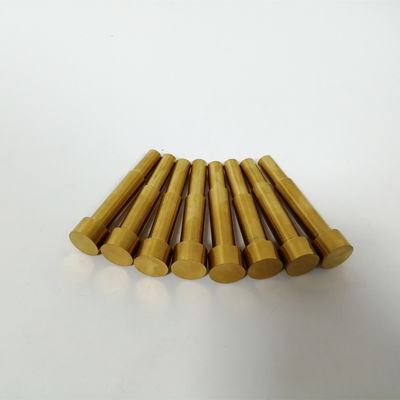

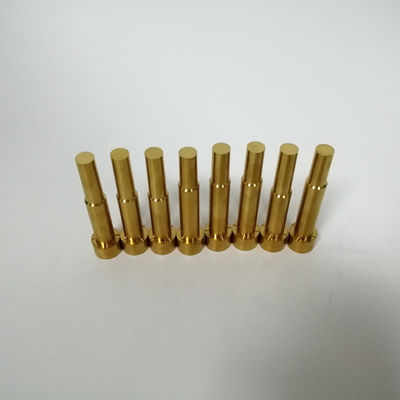

Precision Beryllium Bronze Tooling Components for High-Volume Appliance Parts

Product Overview

Beryllium bronze precision mould tools are engineered for injection molding applications requiring excellent thermal conductivity, dimensional stability, and reliable mechanical strength. These components are commonly used in plastic mold systems where heat dissipation efficiency directly affects cycle time and part quality. Senlan Precision manufactures beryllium bronze mould tools strictly according to customer drawings for packaging, medical, and industrial plastic mould applications.
(Approx. 70 words)

Key Features & Technical Advantages

• Beryllium bronze alloy with high thermal conductivity

• Excellent heat dissipation for reduced molding cycle time

• Stable mechanical properties under continuous operation

• Good wear resistance and dimensional consistency

• Suitable for complex and high-cavity mold structures

• Fully customized manufacturing based on drawings (Built-to-Print)

Applications & Industry Use

• Injection molds for plastic components in appliance-related tooling

• High-cycle plastic moulds requiring efficient cooling

• Packaging and closure mould systems

• Medical plastic mold components requiring stable thermal control

• Precision mold inserts and cores for industrial plastic parts

Mold Structure & Design Considerations

Beryllium bronze mould tools are often applied in mold areas where rapid heat transfer is critical, such as cores, inserts, and localized cooling zones. The material helps reduce temperature gradients during molding, improving part consistency and surface quality. All geometries, tolerances, and interface features are manufactured strictly according to customer-supplied drawings to ensure proper integration into existing mold assemblies.

Manufacturing Capability & CNC Machining

Senlan Precision is equipped with advanced CNC machining and finishing systems, including high-precision equipment from MAKINO (Japan) and HARDINGE (USA).

Our manufacturing capabilities include:

• CNC milling and turning of beryllium bronze components

• Precision grinding for tight tolerance control

• Complex geometry machining for mould inserts and tooling parts

• Typical dimensional tolerance up to ±0.002 mm (design dependent)

• Consistent batch repeatability for multi-cavity mould applications

Custom Development & OEM Cooperation

We provide OEM / built-to-print manufacturing services only.

Standard cooperation process:

1. Technical drawing or 3D model submission

2. Engineering feasibility and process review

3. Material and tolerance confirmation

4. Precision CNC machining and finishing

5. Final inspection and delivery

No standard catalog parts or branding services are involved.

Quality Control & Export Experience

• Incoming beryllium bronze material verification

• In-process dimensional and surface inspections

• Final inspection using calibrated measuring instruments

• Traceable quality records per production batch

• Stable export experience supporting overseas mold manufacturers

Related Products

• Copper alloy mold core inserts

• High thermal conductivity mold components

• Precision core pins and cavity inserts

• Customized mould tooling parts for injection molding

Technical FAQ

Q1: Are these mould tools manufactured according to drawings only?
Yes. All parts are produced strictly on a built-to-print basis.

Q2: Why use beryllium bronze in injection moulds?
Beryllium bronze offers excellent thermal conductivity, helping improve cooling efficiency and reduce cycle time.

Q3: What tolerance range can be achieved?
Typical tolerances range from ±0.002 mm to ±0.01 mm depending on design and geometry.

Q4: Is this material suitable for high-cavity molds?
Yes. It is commonly used in high-cavity and high-cycle mould systems requiring stable heat control.

Request a Quote

To receive a quotation, please submit your technical drawings and specifications.
Our engineering team will evaluate manufacturability and provide a detailed response.
