Product Details:
|
| Material: | Nickel Alloy Copper | Hardness: | HRC58 |
|---|---|---|---|
| Accuracy: | +/-0.004mm | Surface Treatment: | Polished, Tin, Ticn, Crn, DlC Etc |
| Parts Name: | Mold Core Insert | Application: | Plastic Injection Mould |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Auto Cad, Autocad/Ug/Solidworks, CAD |
| Dimension: | Customized | Processing: | CNC Lathe, Grinding Etc |
| High Light: | OEM Copper Precision Mould Parts,ASTM Precision Mould Parts,ODM Precision Moulded Components |
||

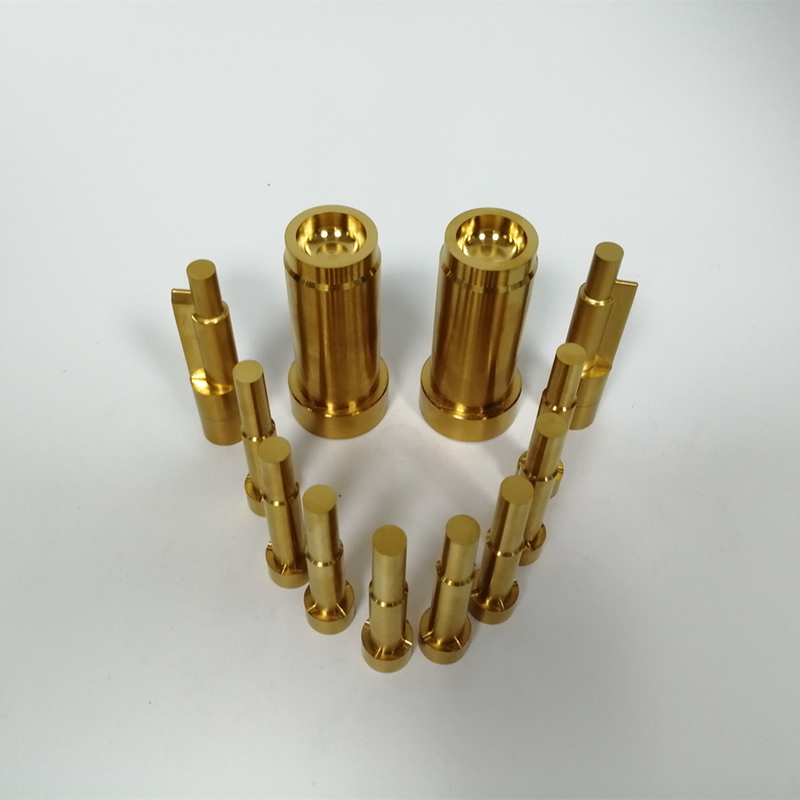

Nickel Alloy Copper Precision Mould Parts For Nail Polished Bottle Cap

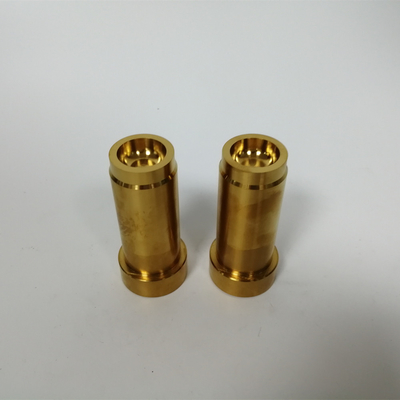

High Finished Nickel Alloy Copper Mold Core Insert Components for Nail Polished Bottle Cap
Characteristics Of Mold Core Inserts:
A real Mold Core Insert is characterized by an arrangement of different cavities with different geometries. the simulation of filling a single independent cavity as described above is only a part of the simulation to characterize the filling behavior of a typical microstructured Mold Core Insert, because the filling behavior is influenced by the pressure distribution in the remaining layer and the arrangement of cavities with different geometries. A detailed filling simulation of microstructured molds requires much CPU power, is time-consuming, and varies for every design. To obtain general information on the filling behavior during the compression state, a characteristically geometric representation of a typical Mold Core Insert has to be chosen
Specification Of Mold Core Insert:
| Shaping Mode | CNC/Milling/+Grinding |
| Product Material | High Speed Steel |
| Hardness | HRC50-64 |
| Tolerance | +/-0.002mm |
| Surface Finishing | Polished |
| Coating | TiN/TiCN/ALTiN |
| Brand Name | Standard |
| Delivery time | Stocks Now (Or 7-8 Days) |
| MOQ | 1 pcs |
| Port of loading | Shenzhen |
| Payment | T.T Western Union ,Paypal |
Our Service
1. Professional technical team
2. High precision with 0.002mm
3. Reasonable price
4. Strong production line
5. OEM and ODM Services
FAQ:
Q1: How To Guarantee The Quality Of Industrial Parts?
A: We have been in Plastic mold parts field over fifteen years with full experience. and there are 5 checks in the whole processing, we have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts production
Q2: Can I Get A Sample Before Mass Production?
A: We can provide free sample if we have this in stock, as long as you afford the freight.if no stock, we can produce for you after get sample fee. lead time: 5-7 workdays
Q3: What Is The Lead Time Of The Mass Production?
A: Normally, 7-15 workdays, it depends on the quantity
Q4: What's The Advantage?
A: The competitive prices, fast delivery and high quality. responsible-oriented employees strict tolerance, smooth finish and long-life performance
