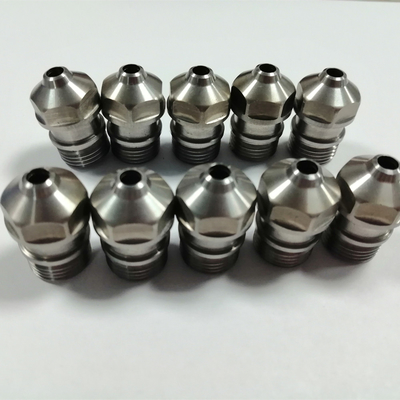

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type

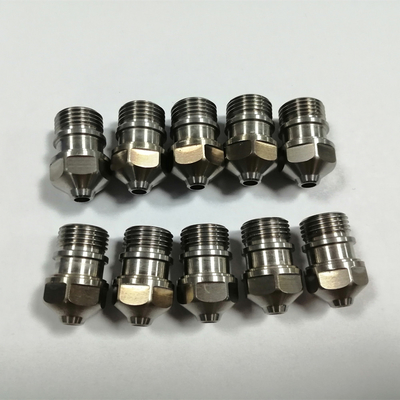

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type

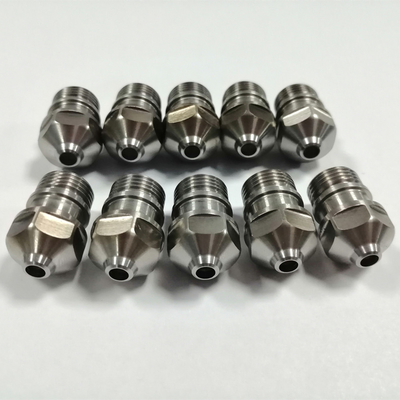

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type

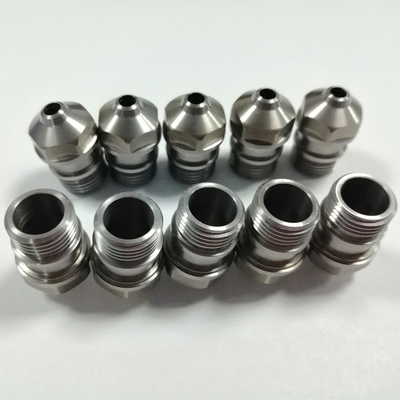

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type

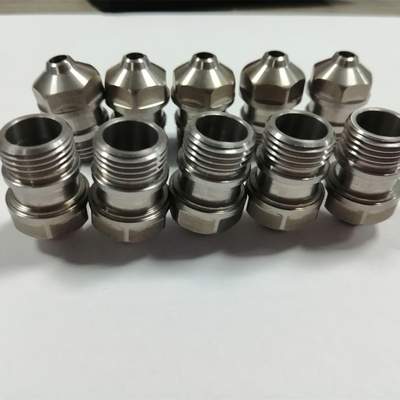

Large Image :  Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type

Description
Hardness: HRC58 Accuracy: +/-0.004mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Mold Core Insert
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: H13 Steel Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Customize
Feature: Durable Usage: Bottle Caps Mold Insert
High Light:

Precision Mould Parts

,

ISO 9000 Precision Mould Parts

,

H13 Die Steel Injection Mold Components

Heat Treatment H13 Die Steel Precision Mould Parts Core Insert Type



ODM Heat Treatment H13 Die Steel Mold Core Insert Components for Edible Oil Plastic Bottle Cap



What is Core Insert Components Molding?



Core Insert Components molding is a specific case of the wider concept of injection molding. In Core Insert Components molding, components are inserted into the mold before injecting the molding material, in order to form part of the final product. These components usually consist of materials with properties different from the parent material. A classic case is where a brass fastener is molded into a softer parent material, in order to be used as a structural bearing surface



Injection molding is a widely used manufacturing technique with many advantages. The molding material sometimes lack mechanical, chemical or electrical properties with a certain application. By combining multiple materials into one product, an efficient trade-off can often be achieved. This combines, for example, the low cost of injection molding with the good mechanical properties of a brass nut. It is a process with many advantages over injection molding and assembly, which will be discussed in this article



The process of Core Insert Components molding differs from conventional injection molding in that certain parts are inserted into the mold prior to the molding material. It is very similar in this regard to the process of over molding. The mold is designed in such a way that makes provision for these inserts. The Mold Core Insert Components have to be held in their respective positions during the material injection, so as to retain the location and orientation thereof. these Mold Core Insert Components may be inserted into the mold by hand, or with an automated process. A simplification of the process is shown below:



Step 1: The component is inserted onto a retainer inside the mold
Step 2: The molding material is injected into the mold, flowing around the Mold Core Insert Components
Step 3: The product is removed from the mold, encapsulating the Mold Core Insert Components





Specification Of Mold Core Insert Components:



Mould Type Plastic Injection Mould
Design Software UG, ProE, Auto CAD, Solidworks, etc.
Hardness 20~60 HRC
Mould Base HASCO, DME, LKM etc.
Runner

Hot runner, Cold runner, as per customers requirement and part structure.

Mould Cavity

Single-cavity or Multi-cavity, as per customers requirement and part structure.

Heat Treatment Quencher, Nitridation, Tempering etc.
Equipments High Speed CNC, Standard CNC, EDM, Wire Cutting, Grinder, Lathe, Milling Machine, Plastic Injection Machine
Lead Time 20~60 days
Certificate

ISO 9000







Our Service:



1. Product Design
We Provide Plastic Mold Parts Design Service As Customer's Request


2. Provide The Sample
Once the sample finish, we will send the sample to customer confirm


3. Mass Production
After customer confirmed the sample, we will start mass production plastic products


4. Assembly
We Also Provide Assembly Service For Our Customer


5. Painting&Coating
We can provide coating service for your customers


6. Packaging Carton Box
We also make the packaging box as customer request





FAQ:


Q1: Are You Trading Company Or Manufacturer?
A: We are original manufacturer. we can do OEM/ODM business


Q2: How Long Is Your Delivery Time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days


Q3: What Is Your Terms Of Payment?
A: T/T 30% as deposit, and 70% before delivery


Q4: How To Buy Your Products?
A: You can buy the products from our company directly. Normally the procedure is sign the contract, payment by T/T, Contact the shipping company to delivery the goods to your country


Q5: What Is The Warranty?
A: The free warranty is one year from the day of Commissioning qualified. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free
