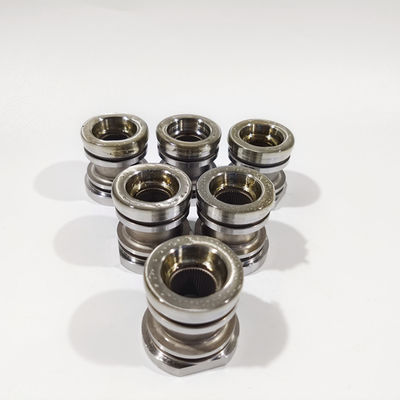

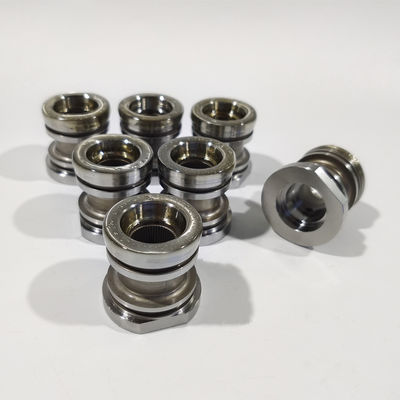

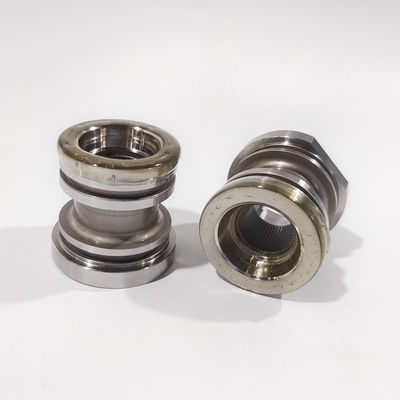

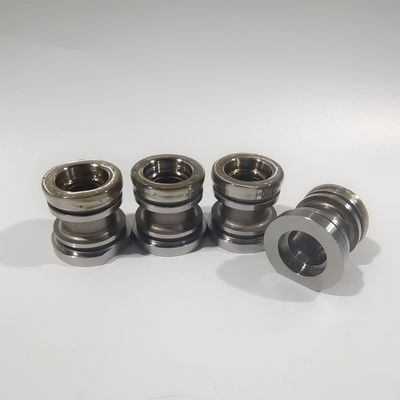

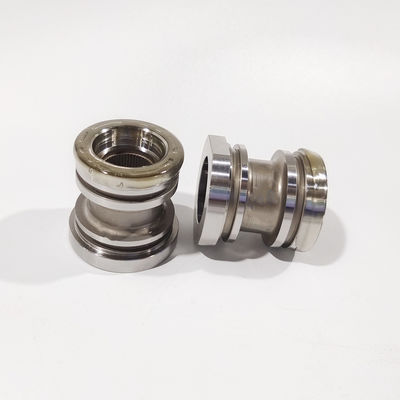

Precision D2 Die Steel Core Inserts | Custom Wire EDM Mold Components (OEM/ODM)

Product Overview

Senlan Precision supplies OEM / ODM core insert precision mould parts manufactured from D2 (1.2379) die steel, featuring wire cutting (EDM) processing for complex geometries and tight tolerances. These components are produced strictly under Built-to-Print requirements and are designed for stable performance in precision injection molds.

Key Features & Technical Advantages

• D2 cold work die steel with high wear resistance and dimensional stability

• Wire cutting (EDM) for complex contours, sharp corners, and fine features

• Suitable for long production runs and high-cycle injection molds

• Stable hardness after heat treatment, minimizing deformation risk

• Precision machining for consistent core-to-cavity alignment

• Fully customized OEM / ODM manufacturing based on drawings

Application Scenarios / Industry Applications

• Bottle cap and closure injection molds

• Precision packaging plastic molds

• Medical and laboratory plastic component molds

• Multi-cavity injection molds requiring consistent core geometry

• High-wear mold areas where tool life is critical

Mold Structure & Design Description

D2 die steel core inserts are commonly used as threaded cores, shaped cores, or functional mold inserts. Wire cutting enables accurate formation of internal profiles, parting features, and sharp edges that are difficult to achieve by conventional milling. The inserts are designed to integrate seamlessly into core plates or cavity blocks, ensuring repeatable molding accuracy.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision operates an integrated precision manufacturing workflow, including:

• MAKINO high-precision CNC machining centers (Japan)

• HARDINGE CNC turning machines (USA)

• Wire cutting (EDM) and sinker EDM processes

• Precision grinding and controlled heat treatment

• Typical achievable tolerances: ±0.003 mm to ±0.01 mm, depending on structure

Custom Development / OEM & ODM Cooperation Process

1. Drawing review and technical clarification

2. Material confirmation (D2 / 1.2379 or equivalent)

3. CNC machining and wire cutting (EDM)

4. Heat treatment and stress relief (if required)

5. Precision grinding and final inspection

6. Export-standard packing and shipment

All production follows OEM / ODM and Built-to-Print principles.

Quality Control & Export Experience

• Raw material certification and incoming inspection

• In-process dimensional and geometric checks

• Final inspection with measuring records

• Stable export experience serving international mold makers and plastic manufacturers

Related Products Recommendation

• Precision threaded core inserts

• Mold cavity inserts and core sleeves

• Ejector pins and wear-resistant mold components

• Custom EDM-processed mold spare parts

FAQ – Technical & Procurement

Q1: Why choose D2 die steel for core inserts?
D2 offers high wear resistance and dimensional stability, making it suitable for high-cycle injection molding.

Q2: Is wire cutting necessary for all core inserts?
Wire cutting is recommended for complex profiles, sharp internal corners, or high-precision features.

Q3: Do you support OEM and ODM projects?
Yes. Both OEM and ODM projects are supported strictly according to customer drawings and specifications.

Q4: Can these inserts be used in multi-cavity molds?
Yes. D2 core inserts are widely used in multi-cavity molds requiring long service life.

Q5: What tolerance levels can you achieve?
Typical tolerances range from ±0.003 mm to ±0.01 mm, depending on part geometry.

Get a Quote

For OEM / ODM D2 die steel core insert precision mould parts with wire cutting, please contact Senlan Precision with your drawings or technical specifications. Our engineering team will provide a clear, engineering-driven manufacturing solution.
