Product Details:
|
| Hardness: | HRC58 | Accuracy: | +/-0.003mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Mold Core Insert |
| Quality: | High Quality | Shaping Mode: | Plastic Die Mould |
| Product Material: | Skh | Product: | Plastic Injection Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Customize |
| Feature: | Durable | Usage: | Bottle Caps Mold Insert |
| Delivery Time: | 5-20 Days | ||
| High Light: | OEM Die Steel Core Insert,High Concentricity Mold Core Inserts,Mold Inserts for Injection Molding Tool |
||

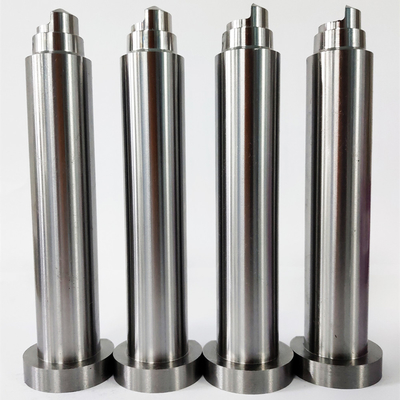

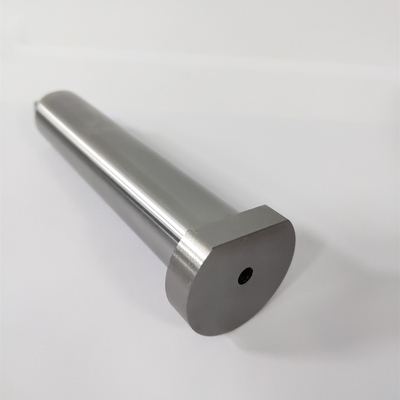

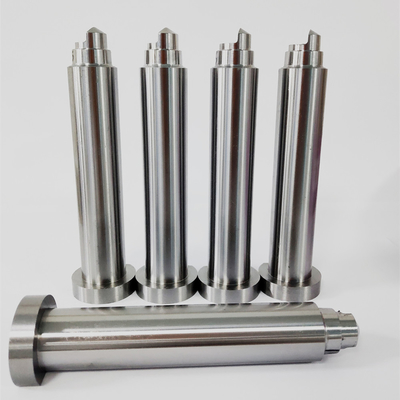

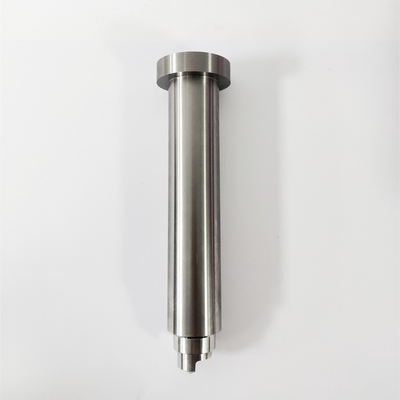

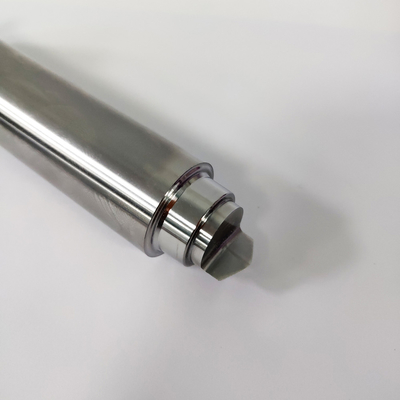

The Description Of Mold Core Insert:
A Core Insert molding procedure whereby a heat-softened plastic material is forced from a cylinder into a cavity which gives the article the desired shape. Used with both thermoplastic and thermosetting materials
Core Insert molding is just one of the processes used to mold plastic around a non-plastic item. Perhaps you are wondering how Core Insert Molding differs from overmolding. In simple terms, the key difference is that overmolding is typically molding a rubber-like plastic over top of another plastic component, while Core Insert Molding involves molding plastic around a non-plastic component. overmolding is used for creating features like ergonomic grips, bump stops, or aesthetics features
Specification:
| Item | Precision mold core and cavity |
| Process | Milling- CNC- Heat treatment-Grinding-CNC-walking silk-EDM-Polishing |
| Material | SKD61, S136, Stavax, 1.2344, 1.2379, 1.2312 etc |
| Tolerance | +/-0.003mm as per requirement |
| Facility | CNC Machining Center, Japan Sodick CNC, Sodick EDM EDGE3 etc |
| Certificates | Material certificate, CMM inspection report, dimension report, final QC reports |
| Processing Time | 15 days |
| Shipping | 3~10 days by DHL/UPS/FedEx express, air freight etc. |
| Delivery & Service: | Timely delivery with safe carton box packaging. our target is to satisfy every customer with the best products and services |
Our Service:
We can provide one-stop plastic injection molding service
1. 2D&3D mold design (CAD, UG, Solidworks, ProE, etc, 2D drawing: DXF, DWG, PDF file, 3D model: IGS,PRT,X-T, e-drawing for free.)
2. Mold flow analysis report
3. Weekly report for progress
4. ISIR (Sample Inspection Report)
5. Pilot production
6. Mass production
7. Assembly
8. Packing & Delivery arrangement
Delivery:
Delivery time is usually 6days for type oF ejector pin and sleeve, specific time is according to quantity and drawing.
Shipping:
We ship using express such as DHL, UPS, FEDEX etc. or according to customer's requirement . It takes about 3days to arrive your front door, and proof of shippments are provided with a shipping or tracking number. and we ship by occean shippment for larger quantity items, it will be economic for customers
Our Advantage:
1. More than 15 years experience in mold parts manufacturing with skilled professional
2. Range of high-end equipment is in the factory, such as Sodick EDM, Takisawa CNC Lathing machine etc
3. Prefect quality control system before shipment
4. On time lead time with guaranteed
FAQ:
Q1: How Long Is It Of Your Processing Time For A Mold Core?
A: Well, it depends on the products, usually lead time is 7-15days, but we ever finished some cases in 2days, because of emergency needs from customer
Q2: What Kind Of Material Will Be Used To Make A Mold?
A: We usually use SKD61, S136, Stavax, Bohler etc, many alternative material can be available according to the different request from customer
Q3: Do You Provide Samples? Is It Free Or Extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q4: What Is Your Terms Of Payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment
