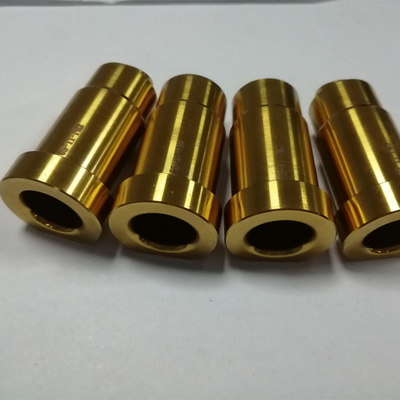

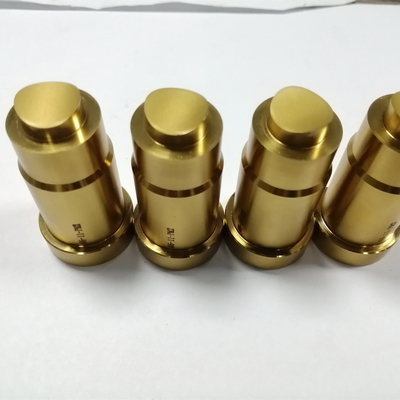

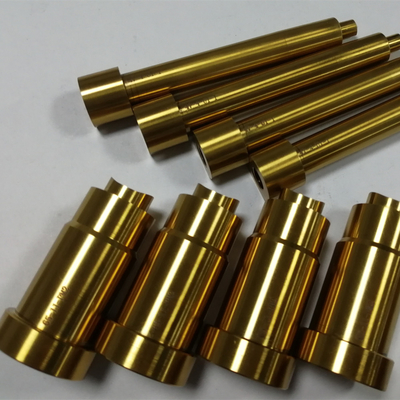

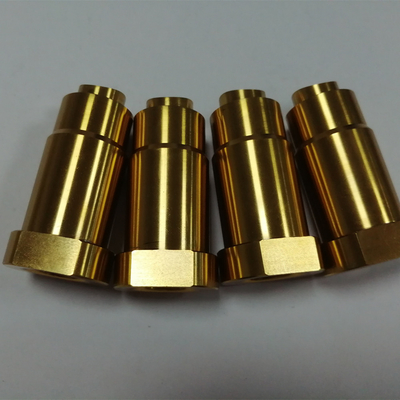

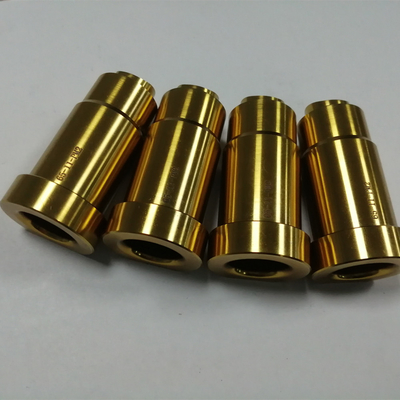

Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts

Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts
Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts
Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts

Large Image :  Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Model Number: CI-038
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000Pcs/Week

Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts

Description
Hardness: HRC58 Accuracy: +/-0.003mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Mold Core Insert
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: Copper Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Customize
Feature: Durable Usage: Bottle Caps Mold Insert
Delivery Time: 5-20 Days
High Light:

High Real Roundness Mold Core Insert

,

Polished Precision Mold Components

,

Copper Precision Mold Core Insert

Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts



The Manufacturing For The Mold Core Insert



When we manufacture the Mold Core Insert and cavity inserts during the mold manufacturing, there are some dimensions that we need to manufacture with some tolerances so that it fits well in the pocket of the insert plate or mold cavity/core



And this will save some work when we will fit the Mould cavity & Core Insert, high tolerance, and good manufacturing technology will save lots of time for the mold-master, below are some manufacturing Mold Core /cavity Insert Guideline that we need to pay attention to make high quality plastic mold



When we make the corner radius In the manual milling machine, make a 0.2mm big step there, after hardening, we don’t have to grind on the corner when we fit the Mold Core Insert



For the outside dimension of the Mold Cavity/Core Inserts, the tolerance should be +0/-0.015mm, this will be easy fit into the pocket, smooth and good quality



The tolerance for the hole to the sprue bushing should be H7 (0/+0.015mm)



The depth of the treading should be 1.5-2 multiply by the diameter of the tread. in this case for M8 screw, the depth of the treading should be 1.5 to 2 multiply by 8, equal to 12-16mm



The guidance of the ejector pin should be about 15-20mm long, this will make sure that the ejector pins ejecting smoothly with long lifetime



The clearance area for the ejector pins should be 1mm bigger than the diameter of the ejector pins., please see below illustration with explaining





Specification:













Material

Steel:HSS , ASP23, Carbon steel, ASSAB Steel, 1.2379, 1.2842 etc

Stainless Steel: 303 / 304 / 316 / 416 / etc

Titanium: Grades 1-4 Grade 5 Grade 9 etc.

Tungsten Carbide: YG6, YG6X, YG8, YG8x, YG8A, YG8N, YG10, YG13X, YG13, YG15X, YG15, YG18X, YG18, YG20 etc.

Brass,Copper, Bronze etc.

Surface Treatment

Polishing, Chrome plating, Laser engraving, Coating etc

Our Equipments

6 sets CNC Machining Center, 4 sets CNC Auto Lathe Machine, 4 sets CNC Milling Machine, 4 sets Drilling Machine, 8 sets Grinding Machine, 4 sets EDM Wire Cutting etc.

Inspection Equipment

2 sets Japan Projector, 1 set Microscope, 2 sets 2D Projection, 4 sets Height gauge, 8 sets Micrometers, 6 sets vernier caliper, 10 pcs Plug Thread Gages, 10 pcs Ring Thread Gages etc.

Accuracy

Accuracy Of Machining: +/-0.005mm,  Accuracy Of Grinding: +/-0.005mm,Surface Roughness: Ra0.4,Parallelism:0.01mm,Verticality:0.01mm
Concentricity: 0.01mm

Surface Roughness

Ra0.1-Ra3.2/ Also can be customized

Leading Time Guarantee

A day's delay upon our ETD, 1% compensation, by parity of reasoning, up to 10%

Quality control

Strictly IQC---PQC---OQC





Why Choose Us:



1. Advanced Machine

2. OEM And ODM Service

3. Wide Material Selection

4. Professional Technicians

5. No MOQ, 1 Piece Accepted

6. Full Set Quality Control System





Our Service:



1. Factroy direct sales

2. Quickly quote, produce and delivery

3. Engineering service

4. Quality assurance

5. Timely delivery guaranteed

6. After sales tracking





Packing&Delivery



Packing Details : Plastic bags,bubble film,carton,pallet or as your request according to precision custom-made SKH 51 mold core mould inserts

Delivery Details : 3-30 days after order,it depends on the quantity and surface treatment





FAQ:



Q1: Are You A Trading Company Or A Manufacturer?
A: We are manufacturer for sure



Q2: What Is The Process Of An Order?
A: Send your detailed request → Feedback with quotation → Confirm quotation & make payment → Confirm drawings → Star production→Quality checking→Packing →Delivery →After Service →Repeat Order



Q3: How To Pay For The Order?
There are 5 options to pay the order: Bank Transfer;Western Union; Paypal ; Payoneer, Alibaba Trade Assurance. Kindly choose the most suitable way for you to arrange it



Q4: What Is The Shipping Method?
A: Most of goods were sent out by international airway express company like DHL, UPS, FedEx, TNT. Usually takes around 3-4 working days (door to door service). we also can arrange shipment via sea way



Q5: Can You Give Me Help If My Products Are Very Urgent?
A: Yes, we will try our best give you help. because we have our own factory to produce. we can flexible to adjust our production schedule



Q6: I Want To Keep Our Design In Secret, Can We Sign NDA?
A: Sure, we will not display any customers' design or show to other people, we can sign NDA
