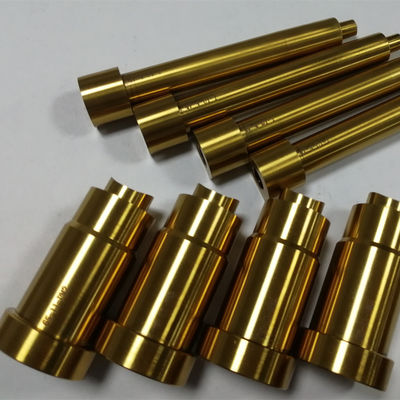

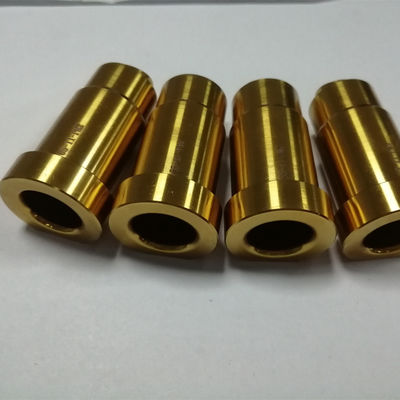

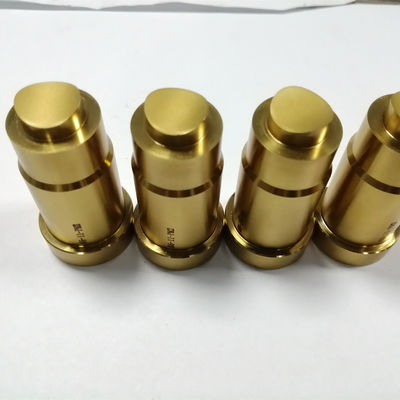

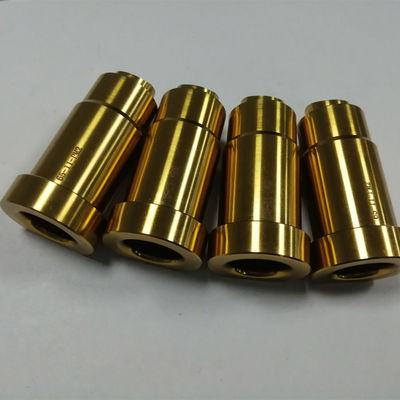

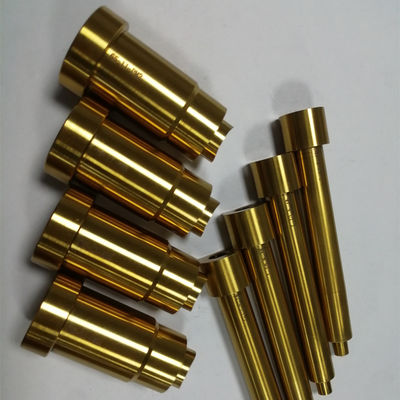

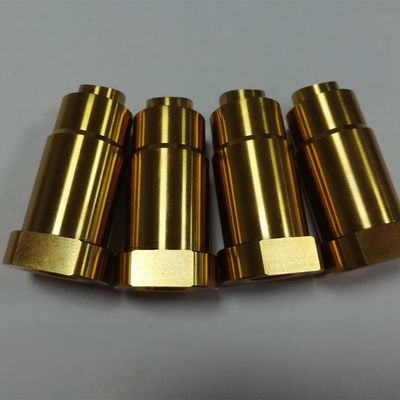

Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts

Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts
Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts
Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts

Large Image :  Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO 9000
Model Number: CI-038
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20000Pcs/Week
Contact Now

Copper Precision Mold Core Insert for Customizable Plastic Injection Mold Parts

Description
Hardness: HRC58 Accuracy: +/-0.003mm
Surface Treatment: Polished, Tin, Ticn, Crn, Dlc Product Name: Mold Core Insert
Quality: High Quality Shaping Mode: Plastic Die Mould
Product Material: Copper Product: Plastic Injection Mold
Standard: JIS, DIN, En, ASTM, AISI Design Software: Autocad, Autocad/Ug/Solidworks, CAD
Size: Customize Color: Customize
Feature: Durable Usage: Bottle Caps Mold Insert
Delivery Time: 5-20 Days
Highlight:

High Real Roundness Mold Core Insert

,

Polished Precision Mold Components

,

Copper Precision Mold Core Insert

Copper Precision Mold Core Insert for Shampoo Plastic Bottle Cap Mold Parts
Product Overview

Our copper precision mold core inserts are engineered for shampoo plastic bottle cap mold applications, manufactured with exacting tolerances to ensure perfect fit and optimal performance in insert plates and mold cavities.

Manufacturing Excellence

During mold manufacturing, we maintain precise dimensional tolerances to ensure seamless integration with insert plates and mold cavities. Our advanced manufacturing technology and high-tolerance standards significantly reduce fitting time for mold masters.

  • Corner radius manufacturing with 0.2mm step in manual milling machines eliminates post-hardening grinding requirements
  • External dimension tolerance: +0/-0.015mm for smooth pocket fitting
  • Sprue bushing hole tolerance: H7 (0/+0.015mm)
  • Thread depth: 1.5-2 times thread diameter (M8 screw requires 12-16mm depth)
  • Ejector pin guidance: 15-20mm length for smooth ejection and extended lifespan
  • Ejector pin clearance: 1mm larger than pin diameter
Technical Specifications
Material Steel: HSS, ASP23, Carbon steel, ASSAB Steel, 1.2379, 1.2842, etc.
Stainless Steel: 303 / 304 / 316 / 416 / etc.
Titanium: Grades 1-4, Grade 5, Grade 9, etc.
Tungsten Carbide: YG6, YG6X, YG8, YG8x, YG8A, YG8N, YG10, YG13X, YG13, YG15X, YG15, YG18X, YG18, YG20, etc.
Brass, Copper, Bronze, etc.
Surface Treatment Polishing, Chrome plating, Laser engraving, Coating, etc.
Our Equipment 6 sets CNC Machining Center, 4 sets CNC Auto Lathe Machine, 4 sets CNC Milling Machine, 4 sets Drilling Machine, 8 sets Grinding Machine, 4 sets EDM Wire Cutting, etc.
Inspection Equipment 2 sets Japan Projector, 1 set Microscope, 2 sets 2D Projection, 4 sets Height gauge, 8 sets Micrometers, 6 sets vernier caliper, 10 pcs Plug Thread Gages, 10 pcs Ring Thread Gages, etc.
Accuracy Machining: +/-0.005mm, Grinding: +/-0.005mm, Surface Roughness: Ra0.4, Parallelism: 0.01mm, Verticality: 0.01mm, Concentricity: 0.01mm
Surface Roughness Ra0.1-Ra3.2 (Customizable)
Lead Time Guarantee 1% compensation per day delay beyond ETD, up to 10% maximum
Quality Control Strict IQC → PQC → OQC process
Why Choose Us
  • Advanced Machinery
  • OEM and ODM Services
  • Wide Material Selection
  • Professional Technicians
  • No Minimum Order Quantity - 1 Piece Accepted
  • Comprehensive Quality Control System
Our Services
  • Factory Direct Sales
  • Rapid Quoting, Production, and Delivery
  • Engineering Support
  • Quality Assurance
  • Timely Delivery Guaranteed
  • After-Sales Tracking
Packaging & Delivery

Packaging: Plastic bags, bubble film, carton, pallet, or customized packaging for precision custom-made SKH 51 mold core inserts

Delivery: 3-30 days after order confirmation, depending on quantity and surface treatment requirements

Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer.
What is the process of an order?
Send detailed request → Quotation feedback → Confirm quotation & payment → Confirm drawings → Production → Quality checking → Packing → Delivery → After Service → Repeat Order
How to pay for the order?
5 payment options: Bank Transfer; Western Union; Paypal; Payoneer; Trade Assurance
What is the shipping method?
Most goods shipped via international express (DHL, UPS, FedEx, TNT) with 3-4 day door-to-door service. Sea freight also available.
Can you help with urgent product requirements?
Yes, we can flexibly adjust our production schedule to accommodate urgent requests.
Can we sign an NDA to protect our design?
Yes, we respect customer confidentiality and can sign Non-Disclosure Agreements.
