Product Details:
|
| Hardness: | HRC60 | Accuracy: | +/-0.005mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Mold Core Insert |
| Quality: | High Quality | Shaping Mode: | Plastic Die Mould |
| Product Material: | S136 Die Steel | Product: | Plastic Injection Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Customize |
| Feature: | Durable | Usage: | Bottle Caps Mold Insert |
| Highlight: | S136 Polished Mold Core Pin,Die Steel Core Insert Mold Tooling,Non Standard Mold Core Pins |
||

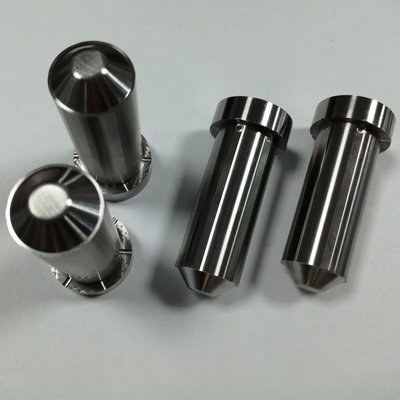

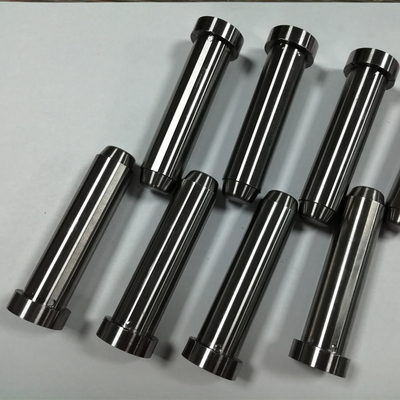

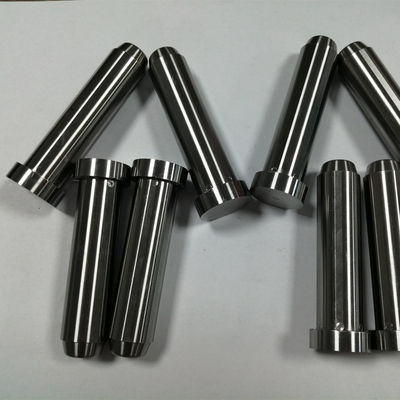

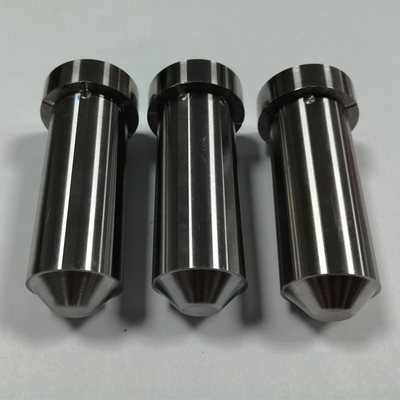

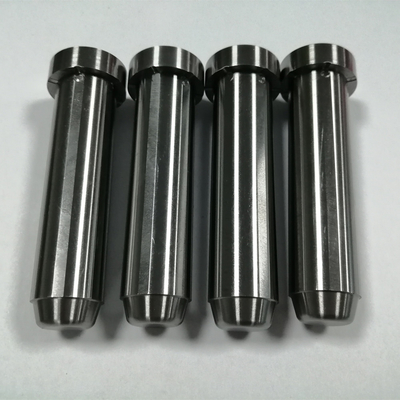

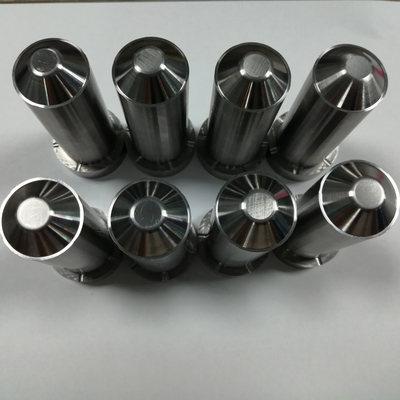

Non Standard S136 Die Steel Core Insert Mold Tooling for Daily Packaging Plastic Parts
The Description Of Mold Core Insert
Mold Core Inserts are made of metal and are attached to the mold. they are used to create a cavity in the part. Modeling the Mold Core Insert as a volume improves the accuracy of the heat transfer calculations. when you assign a mold material to elements instead of modeling the Mold Core Insert, a default small thickness is used for the Mold Core Insert material, which may be less accurate. this approach may be used when investigating mold design, but for more precise results you should model the Mold Core Insert as a volume
Basic Information:
| Brand | Senlan |
| Mold Material | SKD61, SKH51, S136, Stavax, 1.2344, 1.2738 and so on |
| Standard | HASCO, DME, MISUMI and so on |
| Runner | Cold/Hot Runner |
| Certificated | ISO 9000 |
Trade Information:
| MOQ | 1 set |
| Production lead time | 2-5 weeks, according to the order Qty |
| Payment term | 30% T/T deposit with PO, balance 70% T/T before shipment |
| Port of loading | Shenzhen port |
Our Services:
We can provide one-stop plastic injection molding service
1. 2D&3D mold design (CAD, UG, Solidworks, ProE, etc, 2D drawing: DXF, DWG, PDF file, 3D model: IGS,PRT,X-T, e-drawing for free)
2. Mold flow analysis report
3. Weekly report for progress
4. ISIR (Sample Inspection Report)
5. Mold trial, process sheet
6. Mass production
7. Assembly
9.Packing & Delivery arrangement
Order Flow Chart:
FAQ:
Q1: Can You Make The Production Mold With Short Run Production?
A: Yes, we can. we can make the production for any quantity you want
Q2: How Do We Control The Mold Processing?
A: We will send the processing report and mold processing picture every two weeks to the customer
Q3: Are The Samples Free Of Charge?
A: Yes, the first trial samples (1-2pcs) is free, and we will send you the sample by DHL, FEDEX or TNT as soon as we finish the first samples
Q4: What The Payment Term?
A: 35% deposit in advance, 65% remaining before shipment
