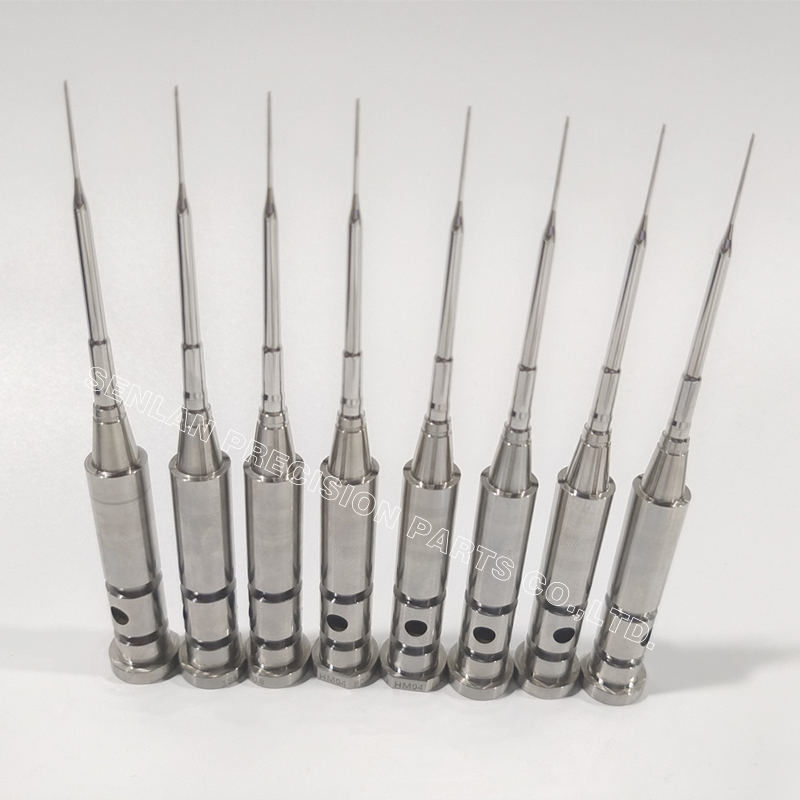

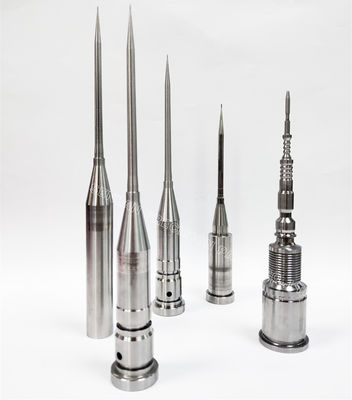

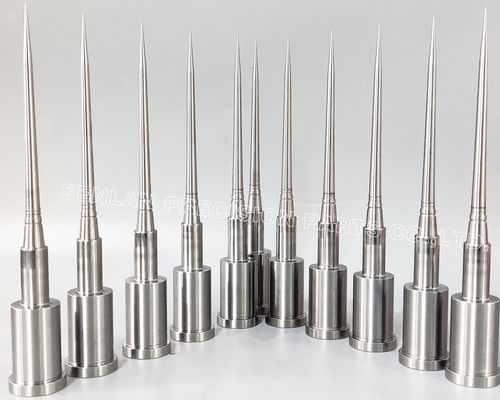

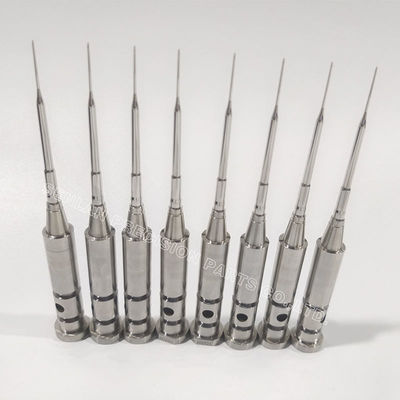

Medical Syringe Core Pins | Stavax Steel Multi-Cavity Mold Components

Product Overview

Senlan Precision supplies STAVAX mold core pins engineered for multi-cavity medical syringe injection moulds. Manufactured strictly to customer drawings (Built-to-Print), these core pins emphasize corrosion resistance, dimensional stability, and repeatable accuracy—key requirements for high-cavity, high-cycle medical moulding where process consistency and tool life are critical.

Key Features & Technical Advantages

• STAVAX stainless mould steel for enhanced corrosion resistance and clean processing

• Consistent hardness after controlled heat treatment for stable long-run performance

• Tight dimensional control suitable for multi-cavity syringe moulds

• Precision ground surfaces to support smooth demoulding and minimal wear

• Interchangeability support for cavity balance and maintenance efficiency

• Custom / OEM / Built-to-Print manufacturing only—no catalog parts

Application Scenarios / Industry Applications

• Medical syringe injection moulds (single-use and disposable)

• Multi-cavity medical consumables moulds

• Precision core pin systems for medical connectors and tubular components

• High-output moulds requiring stable cavity-to-cavity consistency

Mold Structure & Design Description

In multi-cavity syringe moulds, core pins define critical internal diameters and concentricity. STAVAX material provides corrosion resistance and dimensional stability under repeated cycles. Geometry, tolerances, surface finish, and mounting interfaces are produced exactly per customer drawings to ensure correct alignment, uniform filling, and reliable demoulding across all cavities.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision operates advanced equipment for high-accuracy mould components, including:

• MAKINO high-precision CNC machining centers (Japan)

• HARDINGE CNC turning and milling systems (USA)

• Precision cylindrical grinding and polishing

• Controlled heat treatment with hardness verification

• In-process and final dimensional inspection

These capabilities support repeatable accuracy for high-cavity medical mould components.

Custom Development / OEM Cooperation Process

1. Drawing and specification review

2. Material confirmation and heat treatment planning

3. CNC machining, grinding, and surface finishing

4. Dimensional inspection and quality verification

5. Final cleaning, protective packaging, and shipment

All projects are executed under OEM / Built-to-Print cooperation.

Quality Control & Export Experience

• Incoming material inspection and traceability

• In-process SPC and final inspection using precision gauges

• Focus on dimensional consistency for multi-cavity applications

• Experience supplying mould components to international medical and packaging customers

• Export-standard packaging to prevent corrosion and transport damage

Related Products Recommendation

• Medical mould ejector pins and sleeves

• STAVAX / S136 cavity and core inserts

• Precision mould bushings and guide components

• Custom mould spare parts for medical injection moulds

FAQ – Technical & Procurement

Q1: Is STAVAX suitable for medical syringe moulds?
Yes. STAVAX offers corrosion resistance and dimensional stability suitable for medical environments.

Q2: Can you maintain cavity-to-cavity consistency in multi-cavity moulds?
Yes. Precision grinding and controlled processes support tight tolerances and interchangeability.

Q3: Do you manufacture only to drawings?
Yes. All parts are Built-to-Print according to customer specifications.

Q4: Are surface finishes customizable?
Yes. Surface finish requirements are defined by the drawing and application needs.

Q5: Do you support small batches or replacements for maintenance?
Yes. Prototype, low-volume, and replacement orders are supported.

Get a Quote

For pricing, lead time, or technical consultation on STAVAX mold core pins for multi-cavity medical syringe injection moulds, contact Senlan Precision with your drawings or specifications. Our engineering team will provide a detailed evaluation and quotation.
