S136 Medical Mold Inserts | Precision Mirror EDM Core Components

Product Overview

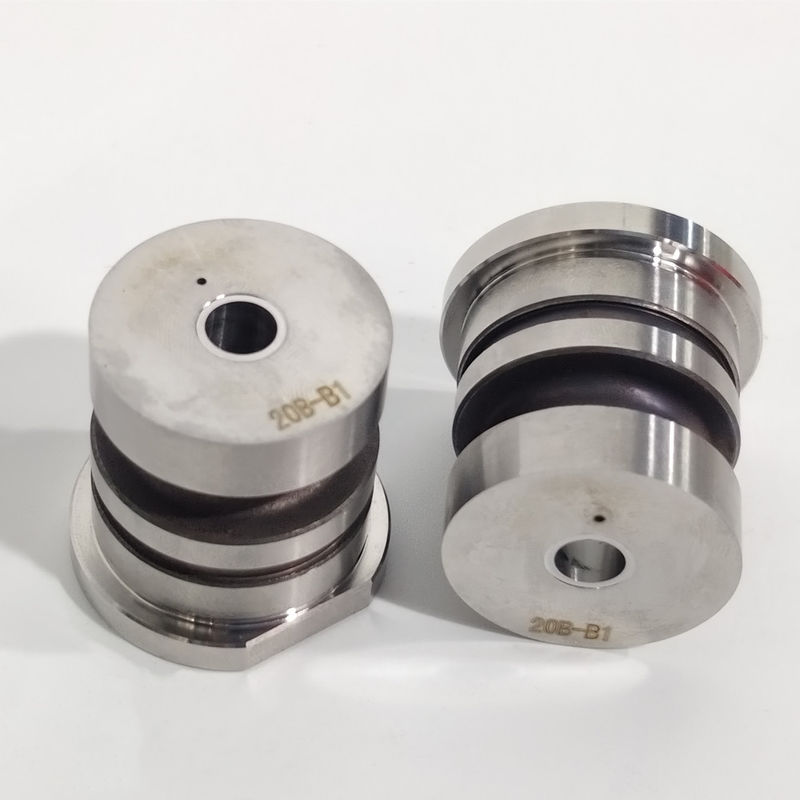

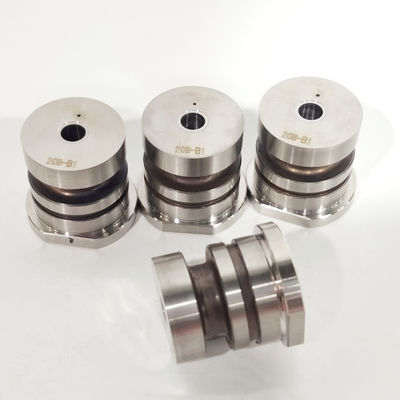

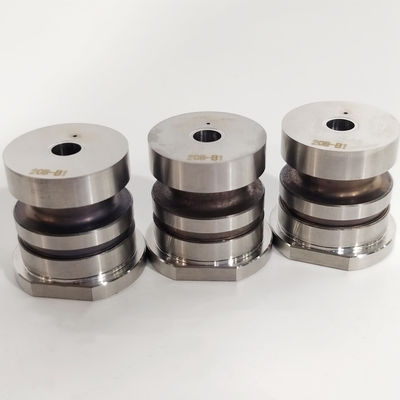

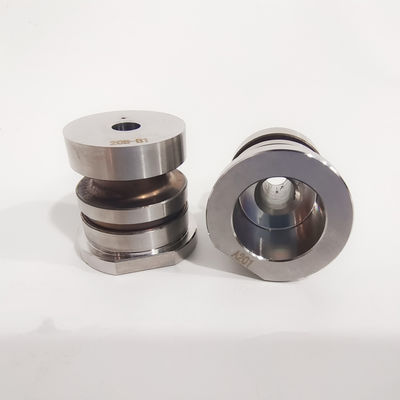

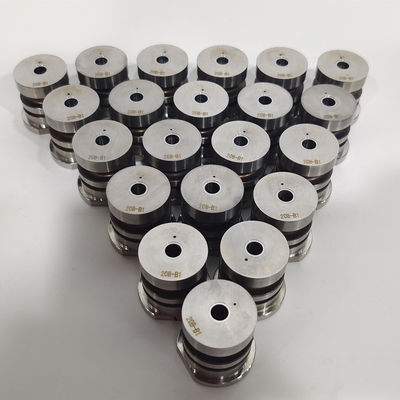

Senlan Precision provides S136 hardened plastic core inserts manufactured with EDM (spark discharge) processing for medical plastic injection molds. These core inserts are built-to-print components designed for high dimensional stability, corrosion resistance, and repeatable precision in multi-cavity and high-cleanliness molding environments.

Key Features & Technical Advantages

• S136 stainless mould steel with high corrosion resistance and stable hardness

• EDM (spark discharge) processing for complex geometries and sharp internal features

• Consistent dimensional accuracy suitable for multi-cavity medical molds

• Excellent surface integrity after polishing or secondary finishing

• Stable performance under continuous injection molding cycles

• Fully customized dimensions based on customer drawings or specifications

Application Scenarios / Industry Applications

• Medical consumables injection molds

• Syringe components and medical connectors

• Diagnostic and laboratory plastic parts

• Precision thin-wall medical packaging

• Cleanroom-grade injection mold tooling

Mold Structure & Design Description

These core inserts are typically integrated into multi-cavity medical molds where tight tolerances and surface integrity are required. EDM processing allows accurate formation of ribs, slots, and internal profiles that are difficult to achieve through conventional milling. Insert geometry, venting details, and fitting tolerances are manufactured strictly according to customer-provided drawings to ensure proper mold assembly and part consistency.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision operates advanced precision machining equipment, including:

• MAKINO high-speed CNC machining centers (Japan)

• HARDINGE precision turning and milling systems (USA)

• High-accuracy EDM and wire-cut machines

• Precision grinding and polishing processes

These capabilities enable stable control of concentricity, flatness, and dimensional repeatability for medical mold components.

Custom Development / OEM Cooperation Process

1. Customer submits drawings or technical specifications

2. Engineering feasibility review and material confirmation

3. Precision machining and EDM processing

4. In-process inspection and dimensional verification

5. Final inspection, cleaning, and packaging

6. Delivery according to agreed lead time

All parts are produced under a Built-to-Print / OEM manufacturing model.

Quality Control & Export Experience

• Incoming material inspection with traceable steel grades

• In-process dimensional control using CMM and precision gauges

• Final inspection reports available upon request

• Experience supplying precision mold components to overseas medical mold manufacturers

• Export-ready packaging for international shipment

Related Products Recommendation

• S136 core pins for medical injection molds

• EDM-processed cavity inserts for multi-cavity tooling

• High-precision ejector pins for medical applications

• Stainless steel mold inserts for cleanroom molding

FAQ – Technical & Procurement

Q1: Is the S136 core insert heat treated before EDM?
Yes. Heat treatment is typically completed prior to EDM to ensure dimensional stability.

Q2: Can you manufacture based only on drawings?
Yes. All parts are produced strictly according to customer drawings (Built-to-Print).

Q3: Is this suitable for multi-cavity medical molds?
Yes. The design and machining process support multi-cavity and high-repeatability applications.

Q4: What surface finishing options are available?
Polishing, fine grinding, and EDM surface control can be provided based on requirements.

Q5: Do you support small batch or prototype orders?
Yes. Prototype and low-volume production are supported for development stages.

Get a Quote

For technical drawings review or quotation of S136 EDM core inserts for medical plastic molds, please contact Senlan Precision. Our engineering team will respond with feasibility feedback and lead time details.
