|Surface Treatment:||Polished, Tin, Ticn, Crn, Dlc||Product Name:||Core Insert|
|Quality:||High Quality||Shaping Mode:||Plastic Die Mould|
|Product Material:||Pm23 High Speed Steel||Product:||Plastic Injection Mold|
|Standard:||JIS, DIN, En, ASTM, AISI||Design Software:||Autocad, Autocad/Ug/Solidworks, CAD|
|Feature:||Durable||Usage:||Injection Plastic Mold Parts|
|Delivery Time:||5-20 Days|

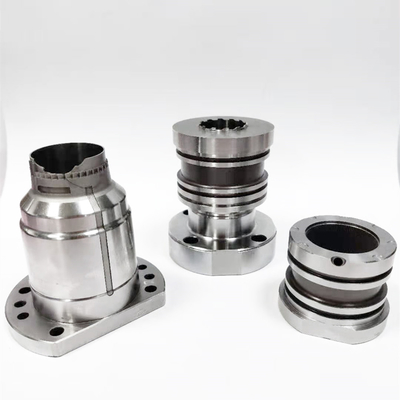

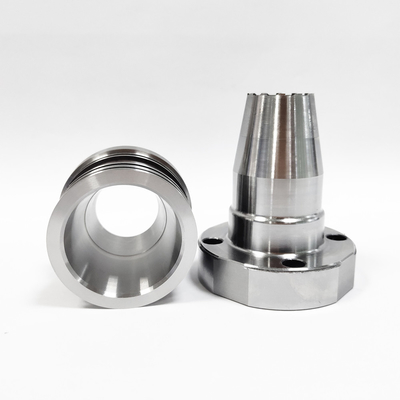

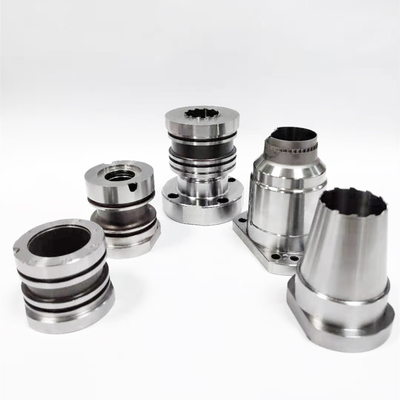

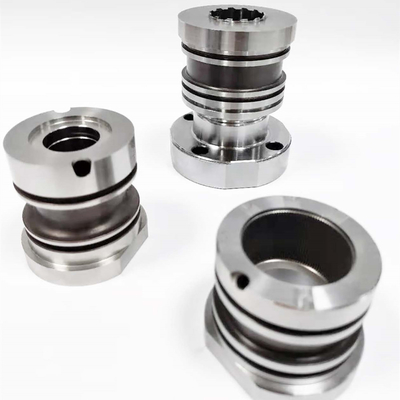

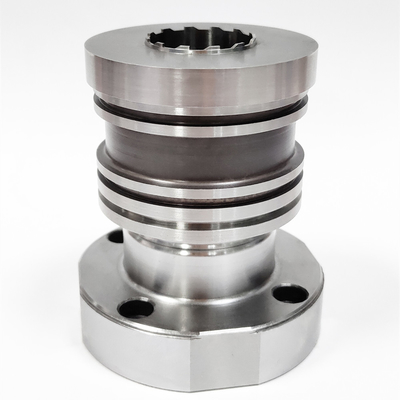

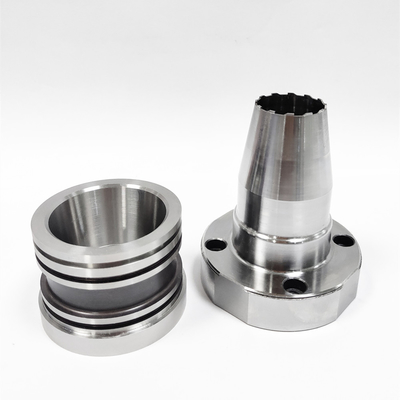

Customized CNC Lathing Core Insert,
Bottle Cap Plastic Mould Core Insert,
High Hardness Polished Core Insert
What's Suitable for Core Insert Molding
Simply put, Core Insert molding should be evaluated for any part that contains a threaded hole. An electronics housing unit or medical instrument case with a bolt-on cover are good examples. Knobs, handles, or dials that screw onto a threaded stud are also examples, as is a plastic air or hydraulic manifold requiring additional strength in threaded areas. In fact, almost any plastic component that attaches to a mating piece with screws or bolts will benefit from molded fasteners
A rotating part such as a fan blade or a drive gear is another good candidate for Core Insert molding. Here, a bronze or brass bushing is molded into the part and serves as the bearing surface, greatly improving product life over non-bushed parts. A metal surgical saw that calls for a plastic handle could be insert molded, size permitting. Wheels and sprockets, pulleys and augers, most any plastic part that requires greater strength or wear characteristics in certain areas is quite likely a match for insert molding
The Right Stuff Of Core Insert Molding
Which thermoplastics can be Core Insert molded? There are few limitations. Stiff, engineering-grade plastics such as Delrin or nylon are good options, as are polyethylene and ABS, but even elastic liquid silicone rubber (LSR) parts can be used. The largest constraint comes from those plastics with very high molding temperatures, such as PEI (Ultem) or PEEK. Since Core Inserts are hand-loaded at Protolabs, and because the quick-turn molding process uses non-cooled aluminum tools to reduce part cost and speed turnaround time, placing an insert into a mold that’s been heated to several hundred degrees is a like reaching into a hot oven for a freshly baked cookie—if you’re not careful, you’ll burn your fingers
Our Services & Advantage:
1. Support customized service, OEM service, small batch purchase, Fast reaction
2. High quality and guarantee, Using quality environmental protection material
3. Our product specifications are complete and diverse
4. Our products are well-known for its fine quality
5. Customer always first, we pay special attention to product quality and delivery, Fast response within one working day
6. Meet customer needs, competitive price with high quality
7. Professional production team can provide you with logo, color, pattern custom
8. Can meet the individual needs of customers, products prices are negotiable
Q1: Which Kind Of Product Can You Do?
A: Plastic injection molding and mass production for plastic parts
Q2: Which Kind Information Need For Quotation?
A: 1. Sample photo with size or 2D/3D design
2. Product material
3. The quantity
4. Runner type, cold or hot
5. Mould steel type, P20, 718, 2738, H13, S136, 2316, an so on
Q3: I Have No 3D Drawing, How Should I Start The New Project?
A: You can supply us a sample or tell me your idea,we will help to finish the 3D drawing design
Q4: How Long Will Be The Injection Mold Finished?
A: Usually it will take about one month to finish the mold
Q5: How About The Samples?
A: After mold finished. We will make some samples for you to check as soon as we finish the mold and then deliver the samples for you to check
Q6: How About The Mould Modify?
A: You can tell us your comment about the samples after you receive them.If there is any dimension different from the drawing,we will modify the mold for free in our side and ther make the new samples
Q7: How About The Proprietary Rights Of The Plastic Injection Mold?
A: Customer paid the mould so it all belong to Customer
