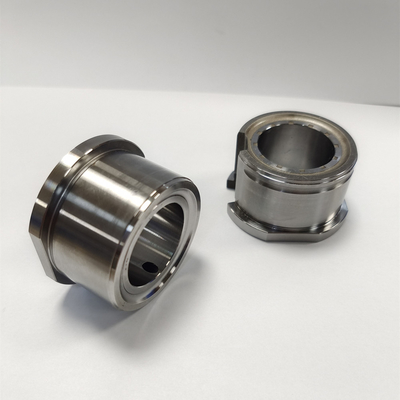

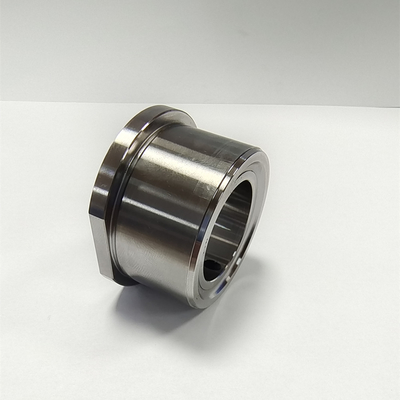

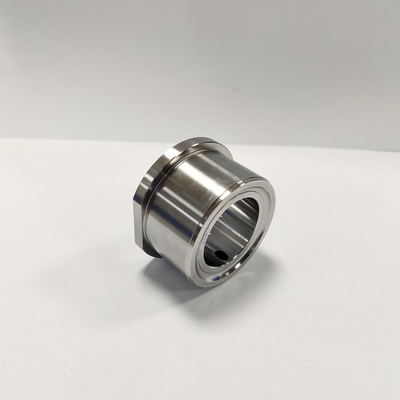

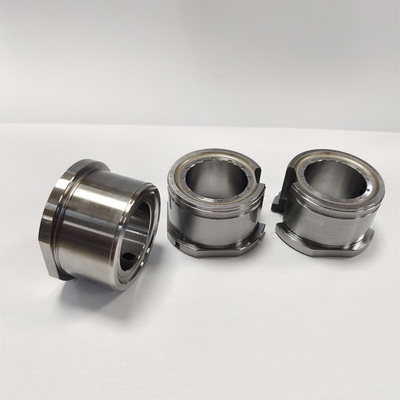

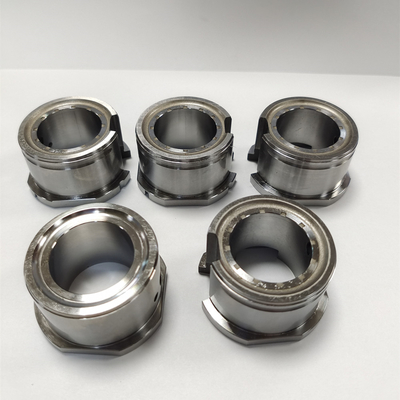

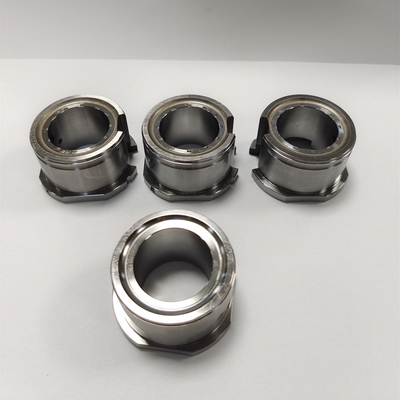

Product Details:
|
| Hardness: | HRC54 | Accuracy: | +/-0.005mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Core Insert |
| Quality: | High Quality | Shaping Mode: | Plastic Die Mould |
| Product Material: | S136 Die Steel | Product: | Plastic Injection Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Black |
| Feature: | Durable | Usage: | Injection Plastic Mold Parts |
| Delivery Time: | 5-20 Days | ||
| High Light: | S136 Mould Steel Core Insert,HRC54 Stavax Mold Core Insert,Inside Diameter Grinding Mold Core Insert |
||
The Convenience Of The Mold Core Insert:
1. Convenient to modify the mold
Molds are often modified according to customer requirements. you can add More Core Inserts in advance where you need to modify the mold. In the future, you only need to replace the More Core Inserts when changing the mold. you can even make more Mold Core Inserts for replacement when opening the mold.
2. Convenient for exhaust.
The mold exhaust is very important. you can add More Core Inserts where the mold needs to be exhausted, and use the matching gaps of the inserts to exhaust.
3. Convenient for mold processing
As we all know, it is very difficult to process and polish the holes in some deep valleys in injection molds, and to fill and eject the mold with plastics. however, setting up Mold Core Inserts in these places can reduce the processing difficulty
4. Save mold materials
When the mold material is set, it is always a piece of steel with a relatively regular shape. however, the material of the front and rear molds is determined by the highest point, so whether it is the front mold or the rear mold, if one place is higher than the other places, In this place, the height of the mold core can be reduced by making inserts, so that the die core set material does not need to be so high, thus saving mold material
5.Increase the service life of the mold
In general, the place where the mold needs to design the Mold Core Insert is often the place that is easily damaged. if the Mold Core Insert is damaged, it can be replaced, thereby prolonging the service life of the mold
Specification:
Our Service:
We can provide one-stop plastic injection molding service.
1. 2D&3D mold design (CAD, UG, Solidworks, ProE, etc, 2D drawing: DXF, DWG, PDF file, 3D model: IGS,PRT,X-T, e-drawing for free.)
2. Mold flow analysis report
3. Weekly report for progress
4. ISIR (Sample Inspection Report)
5. Mold trial, process sheet
6. Mass production
7. Assembly
8.Packing & Delivery arrangement
FAQ:
Q1: When Can I Get The Price?
A: We usually quote within 24 hours after we get your inquiry. if it is very urgent, please call us or tell us in your email so that we will regard your inquiry as priority
Q2: How Long Is The Lead Time For Mold?
A: It depends on the mold’s size and complexity. normally, the lead time is 25-35 days. if the molds are very simple and not in big size, we can work out with 15 days
Q3: I Have No 3D Drawing, How Should I Start The New Project?
A: You can provide us a sample, we will help finish the 3D drawing design
Q4: Before Shipment, How To Make Sure The Products Quality?
A: We are specialized in high quality products. we have QC to inspect the products before each shipment. you can come to visit our factory or ask a third party for inspection. or we can send you videos to show the production process
Q5: How Could I Pay Them?
A: Paypal, Western Union, T/T, L/C are acceptable, so just let us know which is convenient for you
Q6: Can I Get Discounts?
A: Yes, for big order, old customer and frequent customers, we give reasonable discounts
Q7: Which Shipment Way Is Available?
A : By sea to your nearest port
By air to your nearest airport
By express (DHL, UPS, FEDEX, TNT, EMS) to your door
