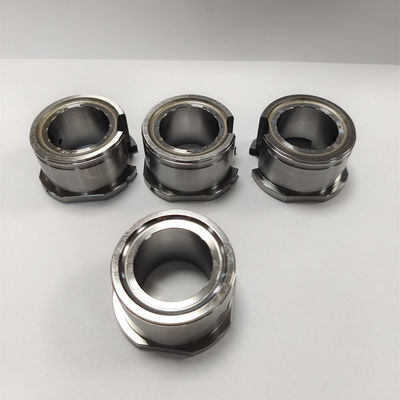

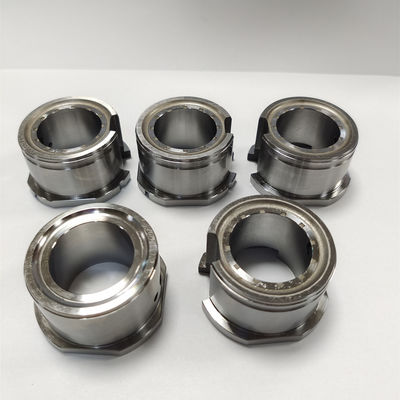

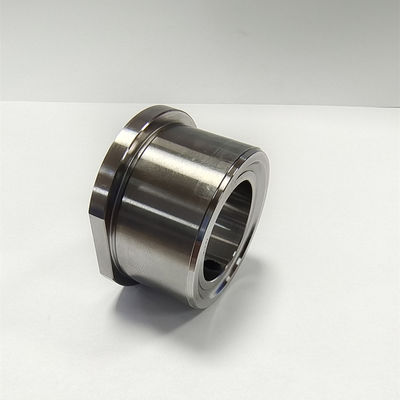

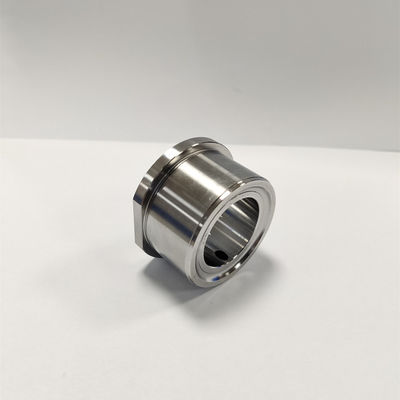

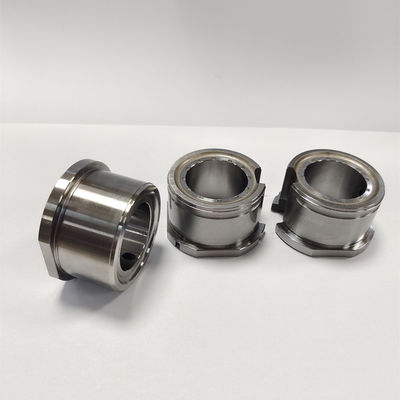

Stavax S136 Mold Core Inserts | Precision Parts for Plastic Bottle Molds

Product Overview

Stavax S136 mould steel core inserts are precision components used in plastic bottle making molds, requiring high corrosion resistance, dimensional stability, and consistent surface quality. Manufactured under a built-to-print model, these inserts are designed for long production cycles and stable performance in multi-cavity injection molding systems.

Key Features & Technical Advantages

• Manufactured from Stavax / S136 stainless mould steel

• Excellent corrosion resistance for moisture-sensitive molding environments

• Stable hardness distribution suitable for long-term production

• High dimensional accuracy and repeatability for multi-cavity molds

• Fine surface finish supporting consistent bottle geometry

• Fully customized / non-standard production based on customer drawings

Applications & Industry Use

• Plastic bottle injection molds

• Packaging molds for daily chemicals and liquid containers

• Medical and laboratory plastic container molds

• High-volume, multi-cavity bottle manufacturing systems

• Precision mold assemblies requiring corrosion-resistant inserts

Mold Structure & Design Description

The S136 core insert is typically installed within the cavity or core assembly of bottle molds. Design focuses on concentricity, cooling efficiency, and surface integrity. Proper fit and tolerance control ensure stable demolding, uniform wall thickness, and consistent product quality across all cavities.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision operates advanced machining equipment, including:

• High-precision CNC machining centers from MAKINO (Japan)

• Precision turning and milling systems from HARDINGE (USA)

• Achievable machining accuracy up to ±0.002 mm

• Controlled heat treatment and finishing processes for S136 steel

These capabilities support reliable production of high-precision mold inserts.

Custom Development & OEM Cooperation Process

1. Drawing or 3D model submission by customer

2. Technical evaluation and tolerance confirmation

3. Material and heat treatment specification approval

4. Sample manufacturing and dimensional inspection

5. Batch production after approval

6. Final inspection and export packaging

All projects follow a Built-to-Print / OEM manufacturing workflow.

Quality Control & Export Experience

• Incoming material verification (steel grade and condition)

• In-process dimensional and surface inspections

• Final inspection before shipment

• Extensive export experience serving international mold manufacturers

Inspection reports and quality records are available upon request.

Related Products

• Mold cavity inserts

• Core pins for bottle and cap molds

• Corrosion-resistant mold components

• Multi-cavity mold precision parts

FAQ (Technical & Purchasing)

Q1: Is this insert produced as a standard part?
A: No. All S136 core inserts are manufactured as non-standard components based on customer drawings.

Q2: What tolerances can be achieved?
A: Typical machining tolerance is ±0.002–0.005 mm depending on geometry.

Q3: Why choose Stavax S136 for bottle molds?
A: S136 offers excellent corrosion resistance, stable hardness, and consistent surface quality for long production cycles.

Q4: Can these inserts be used in high-cavity molds?
A: Yes. Dimensional consistency supports stable performance in multi-cavity bottle molds.

Get a Quote

Submit your technical drawings or specifications to receive a professional evaluation and quotation for custom Stavax S136 mould steel core inserts.
