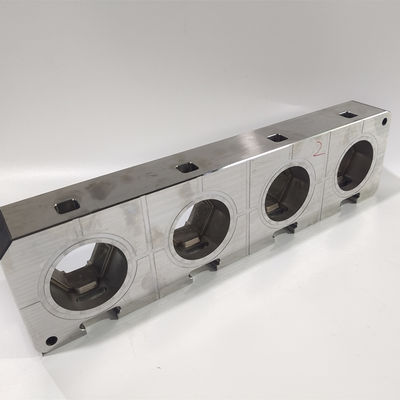

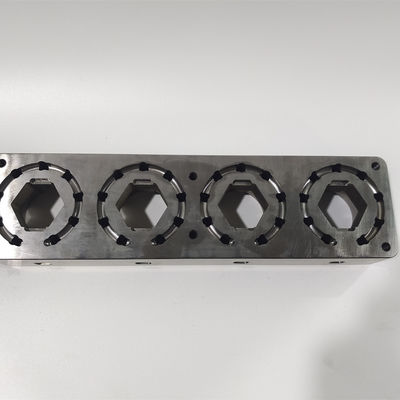

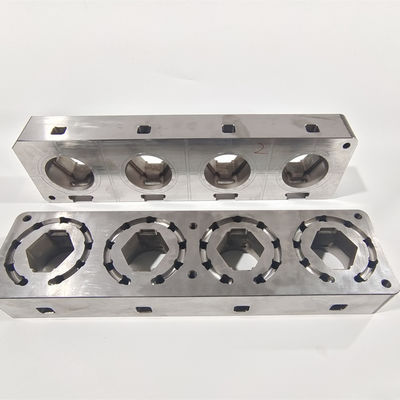

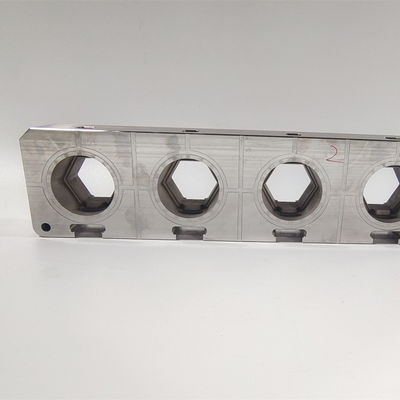

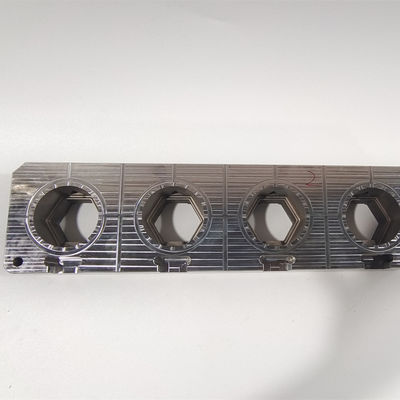

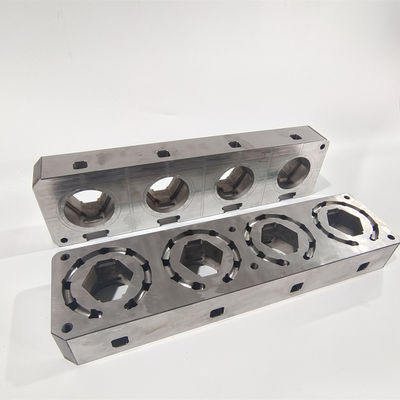

Custom Stainless Steel Mold Core Plates | Precision Tooling for Daily Packaging

Product Overview

Non-standard stainless steel mold core plates are critical structural components used in plastic injection molds for daily packaging parts. Manufactured strictly according to customer drawings, these core plates provide stable mold support, precise cavity positioning, and long-term dimensional reliability in high-cycle production environments.

Key Features & Technical Advantages

• Manufactured from stainless steel for corrosion resistance

• Designed as non-standard, built-to-print components

• High structural rigidity for stable mold assembly

• Precision CNC machining ensures flatness and parallelism

• Suitable for long production cycles and frequent mold operation

• Compatible with multi-cavity and high-speed injection molds

Applications & Industry Use

• Daily packaging plastic part molds

• Bottle, container, and closure injection molds

• Medical consumable and disposable product molds

• Multi-cavity injection molding systems

• Mold assemblies requiring high structural accuracy

Mold Structure & Design Description

The mold core plate serves as a primary load-bearing and positioning element within the injection mold structure. Its dimensional accuracy directly affects cavity alignment, part consistency, and mold service life. Stainless steel material improves corrosion resistance and structural stability during long-term operation.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision operates advanced machining systems, including:

• High-precision CNC machining centers from MAKINO (Japan)

• Turning and milling equipment from HARDINGE (USA)

• Achievable machining accuracy up to ±0.002 mm

• Controlled surface finishing and flatness inspection

These capabilities support consistent production of large and complex mold core plates.

Custom Development & OEM Cooperation Process

1. Customer submits drawings or 3D models

2. Engineering feasibility and tolerance review

3. Material selection and machining process planning

4. Sample manufacturing and inspection

5. Customer confirmation

6. Batch production and final quality inspection

All products are manufactured under a Built-to-Print / OEM cooperation model.

Quality Control & Export Experience

• Incoming stainless steel material inspection

• In-process dimensional and flatness control

• Final inspection before shipment

• Stable export experience supporting global mold manufacturers

Inspection reports and dimensional records are available upon request.

Related Products

• Mold cavity plates and insert plates

• Core inserts and cavity inserts

• Mold guide components and alignment parts

• Multi-cavity mold structural components

FAQ (Technical & Purchasing)

Q1: Is this a standard mold core plate?
A: No. All core plates are manufactured as non-standard components based on customer drawings.

Q2: What tolerance level can be achieved?
A: Typical machining tolerance is ±0.002–0.005 mm, depending on size and structure.

Q3: Why choose stainless steel for mold core plates?
A: Stainless steel offers improved corrosion resistance and stable mechanical performance in humid or high-cycle environments.

Q4: Can this core plate be used in multi-cavity molds?
A: Yes. It is suitable for both single-cavity and multi-cavity injection mold structures.

Get a Quote

Please provide your drawings or technical specifications to receive a professional evaluation and quotation for custom stainless steel mold core plates.
