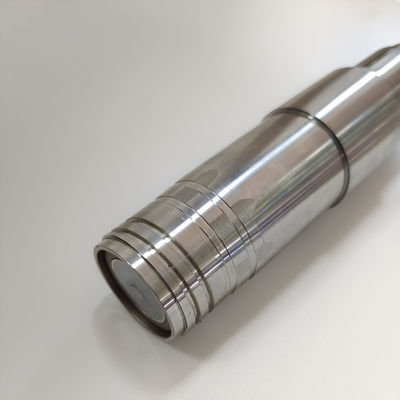

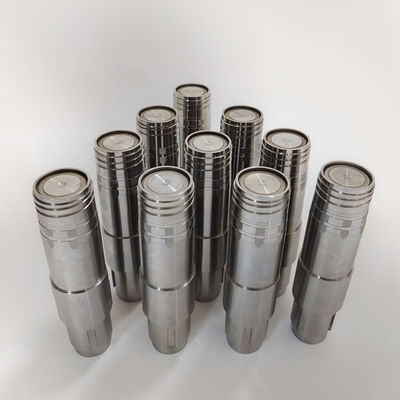

Precision DLC Coated Core Pins & Inserts | Durable Hasco Standard Tooling Parts

Product Overview

Senlan Precision manufactures Hasco-standard DLC coated core inserts for injection mold core plates, designed for high-cycle, multi-cavity injection molding applications. Produced strictly on a Built-to-Print (OEM) basis, these inserts combine precise dimensional control with low-friction DLC surface treatment to improve wear resistance, reduce sticking, and ensure stable long-term mold performance.

Key Features & Technical Advantages

• Manufactured according to HASCO standard dimensions

• DLC (Diamond-Like Carbon) coating for reduced friction and wear

• Improved demolding performance and reduced plastic adhesion

• High surface hardness with minimal impact on core dimensional accuracy

• Suitable for high-speed, high-cavity injection molding

• Consistent repeatability for mold maintenance and replacement

Application Scenarios / Industry Applications

• Injection mold core plates for packaging components

• Bottle caps, closures, and sealing part molds

• Multi-cavity molds with frequent opening and closing cycles

• High-volume injection tooling requiring low wear and stable surfaces

• Mold refurbishment and standardized spare part replacement

Mold Structure & Design Description

The DLC coated core insert is mounted within the injection mold core plate and directly forms the internal geometry of molded parts. The HASCO-standard interface ensures reliable interchangeability, while the DLC coating minimizes surface friction, reduces galling, and improves resistance to abrasion caused by reinforced or filled plastics. All dimensions, tolerances, and coating specifications follow customer drawings or HASCO standards.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision maintains full in-house manufacturing control, including:

• MAKINO high-precision CNC machining centers (Japan)

• HARDINGE CNC turning centers (USA)

• Precision CNC milling, turning, EDM, and grinding

• Controlled heat treatment and DLC coating coordination

• Typical machining tolerance capability: ±0.003 mm to ±0.01 mm, depending on structure

Custom Development / OEM Cooperation Process

1. Customer drawing or HASCO standard confirmation

2. Material and coating specification review

3. Precision CNC machining and EDM processing

4. Heat treatment and dimensional stabilization

5. DLC coating and surface quality verification

6. Final inspection, packing, and export shipment

All products are supplied strictly on a custom / OEM / Built-to-Print basis.

Quality Control & Export Experience

• Incoming raw material inspection and traceability

• In-process dimensional and surface roughness checks

• Coating thickness and adhesion verification

• Final dimensional inspection before shipment

• Stable export supply to international mold makers and tooling companies

Related Products Recommendation

• Standard and non-standard mold core inserts

• DLC coated core pins and core sleeves

• Ejector pins and ejector sleeves

• Multi-cavity mold precision spare parts

FAQ – Technical & Procurement

Q1: What is the benefit of DLC coating on core inserts?
DLC coating reduces friction, improves wear resistance, and minimizes plastic sticking during demolding.

Q2: Do you manufacture strictly to HASCO standards?
Yes. Inserts can be produced to HASCO standard dimensions or customer-specific drawings.

Q3: Is OEM customization supported?
Yes. All parts are manufactured on a Built-to-Print (OEM) basis.

Q4: What tolerances can be achieved after DLC coating?
Dimensional deviations are tightly controlled, typically within ±0.003–0.01 mm depending on part size.

Q5: Are these inserts suitable for multi-cavity molds?
Yes. They are commonly used in high-cavity and high-output injection molds.

Get a Quote

For pricing and technical evaluation of Hasco standard DLC coated core inserts for injection mold core plates, please contact Senlan Precision with your drawings or specifications. Our engineering team will provide a precise OEM manufacturing solution.
