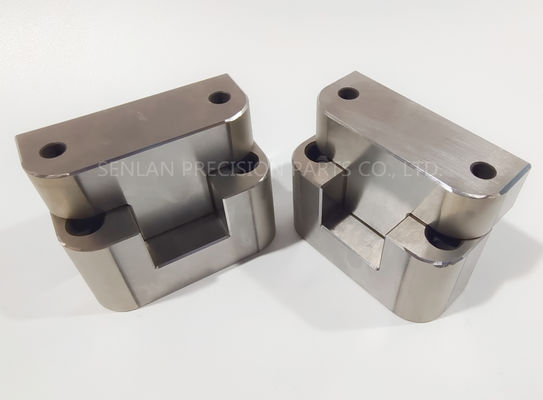

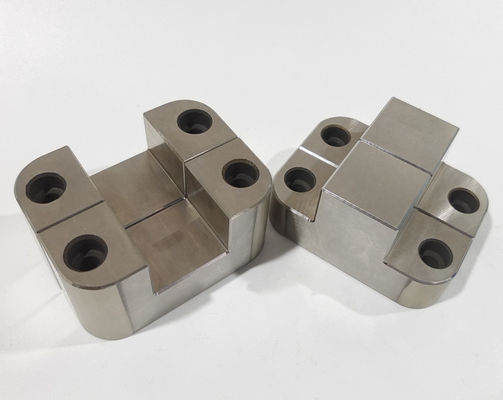

CNC Machining Turning Parts Round Interlock Centring Locating / Sliding Interlock
Product Overview
Customized Precision CNC Machining Turning Parts Round Interlock Centring Locating/Sliding Interlock With Different Coatings
At the most basic level, the slider is used to convert the vertical movement of mold opening or closing into horizontal motion. Slide mechanisms typically consist of several basic components including a forming surface, slider body, guide pin, wedge, press block, and wear plate.
Slide-Lock mechanisms are specially designed to effectively prevent operational slipping of the slide in your mold base. They are extremely compact and hold their rated weights without hydraulics or other complicated devices. They can also be used in multiples to achieve greater weight retention. The simplicity of the Slide-Lock design ensures dependable performance.
Key Features
- Compact design that fits within mold base
- No protruding hardware on mold base exterior - ideal for confined spaces
- Large, flat surface provides greater slide retention and positive locking
- Easily machined into existing slides
- Mounts with simple socket head-cap screws
Product Specifications
| Material |
SKD61, SKH51, SUJ2, Stainless steel |
| Process |
CNC turning, CNC lathe machining, CNC boring; CNC milling, CNC grinding |
| Size |
Non-standard and custom designs |
| Heat Treatment |
Available |
| Surface Work |
Nitriding, Polishing, Hardness anodizing (black/clear), steel oxidizing (dark-blue), electro-polishing, electroless nickel plating, silver plating, golden plating, etc. |
| Tolerance |
+/- 0.005mm |
| Main Equipment |
Machining center, CNC, Lathe, Turning machine, Milling machine, Drilling machine, Internal and external grinding machine, Cylindrical grinding machine, Wire cutting machine, etc. |
| Testing Facility |
Coordinate measuring machine, projector, hardness tester, concentricity tester, height tester |
Our Advantages
- Over 15 years of experience in precision core pins, cavity, and pins insert pins
- OEM, ODM, and non-standard services available
- Guaranteed on-time delivery as promised in contract
- Comprehensive quality control system
- Free samples provided
- No minimum order quantity required
- Instant communication with 12-hour response time
- Exact tolerance matching customer requirements
Delivery & Shipping
Delivery time is typically 6-10 days for standard ejector pins and sleeves, with specific timing based on quantity and drawing complexity.
We ship using express carriers such as DHL, UPS, FEDEX, etc., or according to customer requirements. Express shipping takes approximately 3 days to arrive, with proof of shipment and tracking numbers provided. For larger quantities, we offer economical ocean shipping options.
Payment Terms
TT (Telegraphic Transfer), Western Union, or other payment methods as negotiated between both parties.
Frequently Asked Questions
Q1. How to get a quotation?
A: For standard products: provide model, size, and quantity. For non-standard products: provide drawing and quantity.
Q2. How long is your delivery time?
A: Generally 3-5 days, varying according to products and quantity.
Q3. Do you provide samples? Is it free or payable?
A: Yes, we can offer samples or raw material for quality inspection. Customers need to bear freight costs, and for some products, sample costs may apply.
Q4. How can you guarantee quality?
A: Advanced machine equipment, mature technology, and skilled workers ensure product quality. Our QC department checks each piece before every shipment.
Q5. What about after-sale service?
A: Contact us with any questions after receiving samples or products. We'll work to solve problems until you're satisfied!
