CNC Milling & Wire EDM Mold Parts | Custom Complex Core Inserts

Product Overview

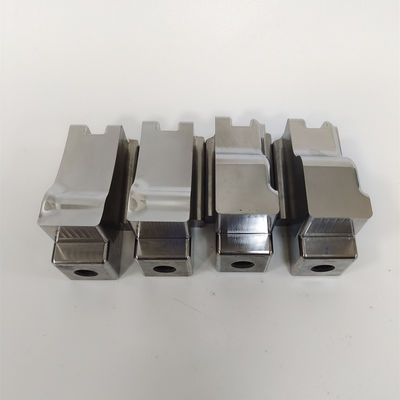

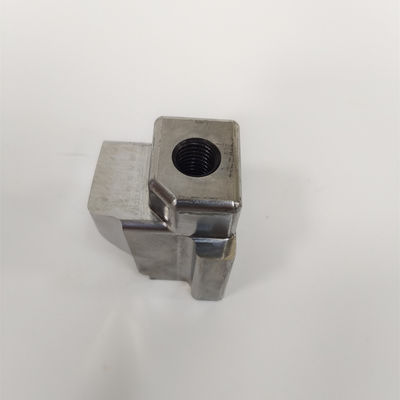

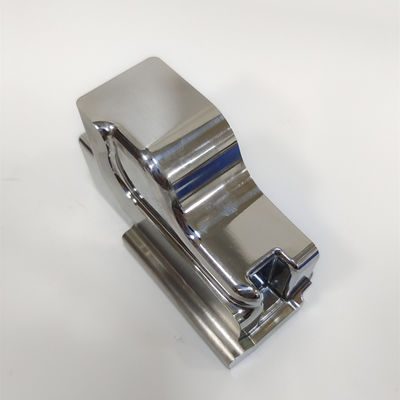

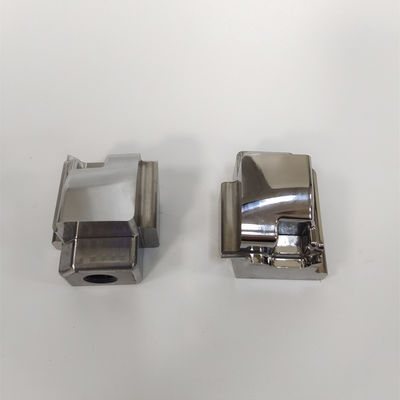

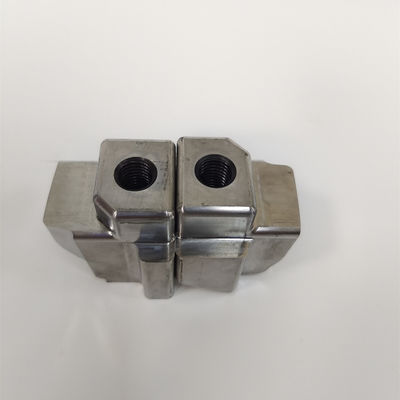

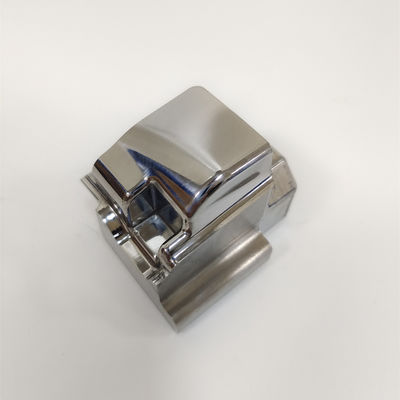

CNC Milling Core Inserts with Wire Cutting Processing are precision mould components designed for injection tooling with complex or shaped geometries. By combining high-accuracy CNC milling and wire EDM processes, these inserts achieve precise contours, sharp internal features, and stable dimensional consistency, making them suitable for high-precision injection molds and multi-cavity tooling systems.

Key Features & Technical Advantages

• CNC milling for accurate 3D contours and complex geometries

• Wire cutting (EDM) processing for sharp corners and internal profiles

• Stable dimensional accuracy for shaped and non-standard mould inserts

• Optimized surface integrity for reliable mold performance

• Suitable for multi-cavity and precision injection mold structures

• Fully customized, built-to-print manufacturing based on customer drawings

Applications & Industry Use

• Injection molds with shaped or irregular core inserts

• Multi-cavity molds requiring consistent cavity geometry

• Packaging molds for bottle caps, closures, and containers

• Medical and laboratory plastic injection tooling

Mold Structure & Design Description

These core inserts are typically installed in mold cavity or core plates where complex shapes or tight internal features are required. CNC milling is used to generate primary geometries, while wire EDM ensures precision cutting of profiles that cannot be achieved through conventional machining. This hybrid process improves assembly accuracy, reduces fitting time, and enhances mold stability during production.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision integrates advanced milling, EDM, and finishing processes to support high-precision mold components:

• High-speed CNC milling centers from MAKINO

• Precision machining and turning equipment from HARDINGE

• Dedicated wire cutting (EDM) systems for complex internal geometries

Each component is processed under controlled parameters to ensure repeatable accuracy and reliable mold assembly.

Custom Development & OEM Cooperation Process

1. Review of customer drawings or 3D models

2. Confirmation of material, tolerances, and processing method

3. CNC milling and wire cutting (EDM) machining

4. In-process and final dimensional inspection

5. Cleaning, marking, and export-standard packaging

All parts are supplied strictly under OEM / Built-to-Print manufacturing conditions.

Quality Control & Export Experience

• Incoming material inspection and traceability

• Dimensional verification at critical machining stages

• Final inspection against customer drawings

• Experience supplying mold components for international markets

• Secure packaging suitable for long-distance export shipment

Inspection reports and measurement data can be provided upon request.

Related Products

• Mold cavity inserts

• Mold core pins and shaped cores

• Slider inserts and moving mold components

• Custom CNC machined mould parts

FAQ (Technical & Purchasing)

Q1: What types of shapes are suitable for wire cutting processing?
A: Wire EDM is ideal for sharp corners, internal contours, and complex profiles that cannot be milled directly.

Q2: Can you manufacture non-standard or irregular core inserts?
A: Yes. All inserts are produced according to customer drawings with no standard size limitations.

Q3: What tolerance range can be achieved?
A: Tolerances are controlled based on drawing requirements and mold function, typically within precision mold standards.

Q4: Do you support small-batch or replacement orders?
A: Yes. We support prototype, small-batch, and replacement production for existing molds.

Get a Quote

Please provide your technical drawings or specifications to Senlan Precision to receive a detailed quotation for CNC milled and wire-cut core insert mould parts for injection tooling.
