SS420 Mold Steel Cavity Insert Block for Packaging Plastic Injection Molds
Precision SS420 Mold Steel Cavity Insert Blocks are essential components in plastic injection molds, designed to form the external shape of molded plastic products. These removable inserts offer superior maintenance flexibility and production efficiency for packaging applications.
Product Overview

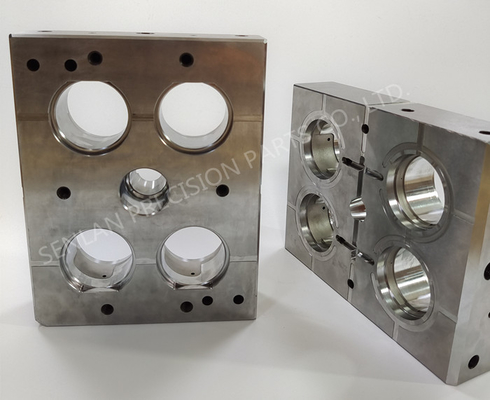

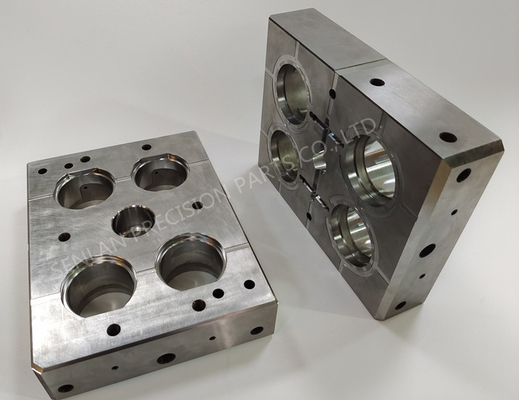

SS420 Mold Steel Cavity Insert Blocks are precision mold components installed inside cavity plates of plastic injection molds. Manufactured from pre-hardened SS420 mold steel, these inserts provide excellent machinability, good toughness, and reliable durability for medium to high-volume production molds.

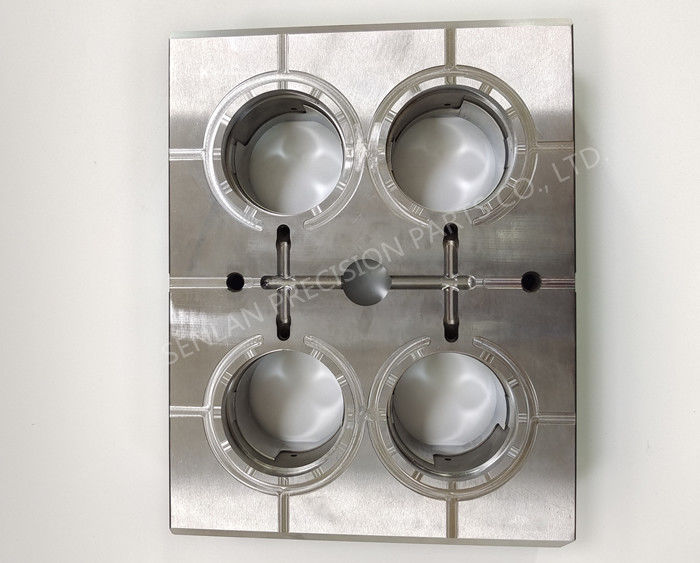

The multi-cavity insert block with integrated cold runner channels is specifically designed for plastic packaging products such as caps, cups, lids, and cosmetic containers. These inserts directly determine the surface quality and dimensional accuracy of molded plastic parts.
Key Features & Benefits
- Manufactured from SS420 pre-hardened mold steel
- Suitable for multi-cavity injection molds
- Designed for plastic packaging product molds
- Integrated cold runner distribution channels
- Excellent machinability and mold durability
- Custom cavity shapes available based on product design
- Precision machining tolerance up to ±0.005 mm
Applications
Plastic Packaging Products
Used in molds producing packaging components including cosmetic containers, plastic cups, small packaging covers, and disposable plastic components.
Bottle Cap & Closure Components
Applicable in molds producing caps, lids, and closures for food, beverage, and household packaging.
Cosmetic Packaging
Used for molding cosmetic jars, lids, and packaging accessories requiring smooth surface finish.
Multi-Cavity Production Molds
Designed for molds with multiple cavities to increase production efficiency and reduce cycle costs.
Precision Manufacturing Capabilities
Our advanced manufacturing processes ensure consistent cavity geometry and high surface quality:
- High-precision CNC milling and turning
- Cavity profile machining and finishing
- Precision surface grinding
- Mold runner machining
- Dimensional inspection using professional measuring equipment
- Precision tolerance up to ±0.005 mm
Performance Advantages
Efficient Mold Maintenance: Replaceable cavity inserts allow quick replacement of damaged or worn cavities without rebuilding the entire mold.
Lower Tooling Cost: Modular cavity inserts reduce overall mold manufacturing and maintenance costs.
Consistent Product Quality: Precision cavity geometry ensures uniform plastic filling and consistent product dimensions.
Improved Production Efficiency: Multi-cavity inserts enable molds to produce multiple parts in each injection cycle.
Quotation Requirements
To provide an accurate quotation for custom mold cavity insert blocks, please provide:
- Product 3D model or 2D drawings
- Plastic product material
- Number of cavities required
- Mold size or insert dimensions
- Surface finishing requirements
- Expected mold life
- Quantity required
Frequently Asked Questions
What is a cavity insert in an injection mold?
A cavity insert is a removable mold component that forms the external surface of molded plastic parts inside an injection mold.
Why are cavity inserts used instead of machining the entire cavity plate?
Using inserts allows easier repair, replacement, and modification, which reduces mold maintenance cost and downtime.
Why is SS420 steel commonly used for injection mold cavities?
SS420 steel provides good machinability, stable hardness, and reliable durability, making it suitable for many packaging molds.
Can cavity inserts be customized?
Yes. Cavity shape, size, number of cavities, and runner design can all be custom manufactured according to product drawings.
What industries commonly use cavity insert molds?
Industries include plastic packaging, cosmetics, food packaging, consumer products, and medical disposable plastics.
