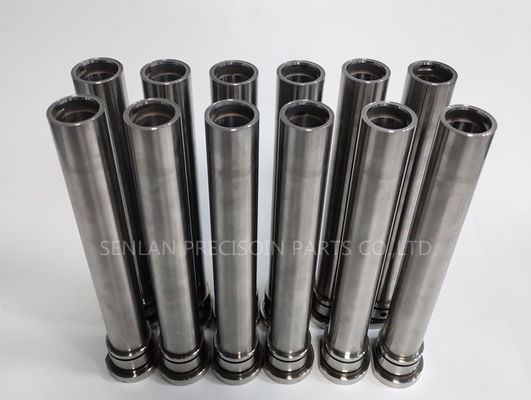

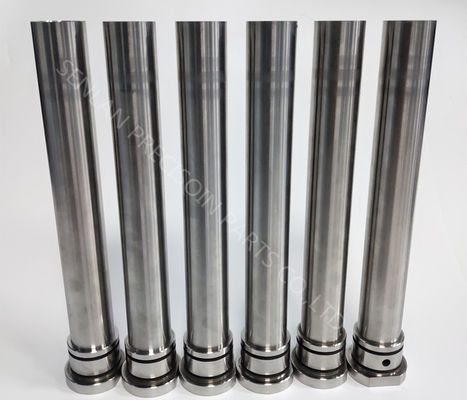

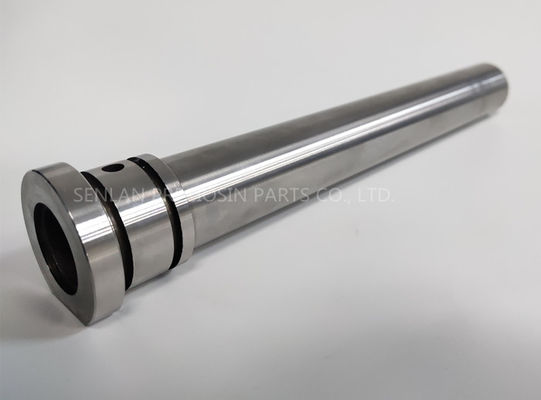

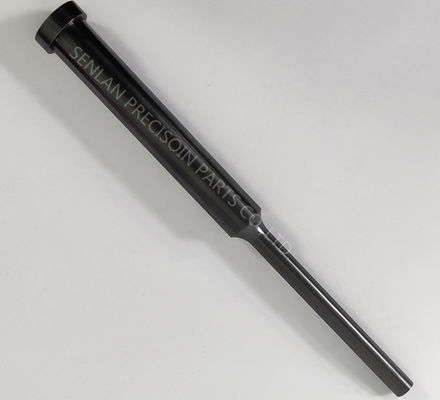

Customized Precision SKD61 DLC Surface Treatment Ejector Pin And Sleeve For Plastic Mold
Precision engineered ejector pins and sleeves designed for plastic mold applications, featuring DLC surface treatment for enhanced durability and performance.
- Precision concentricity held within .002″ T.I.R. or less at working end
- Available in 3″ overall lengths for use as Ejector Pin Bushings
- Sleeves are H-13 Steel, Nitrided on both I.D. and O.D.
- ID is precision honed
- Annealed heads
- Oversize +.005 on O.D. (oversize only)
Product Specifications
| Product Name |
Ejector pin and sleeve |
| Material Details |
SKD11/SKD61/SKD51/ASP23/CPMRTXM4/HSS/A2,M2/D2/SUJ2/S45C |
| Standard |
DIN/ISO/MISUMI/EDM/FIBRO/HASCO |
| Size |
Depend on your drawings or products standard |
| Surface Work |
TiCN, TiN, Aitain, Ticrn, nitriding |
| Customized |
Available |
| Payment |
TT, Western Union, Paypal |
| Production Address |
Dongguan, Guangdong, China |
| Delivery Time |
5-15 working days |
| Transport |
DHL, Fedex, UPS, TNT or By Sea |
Main Products
- Core pin, cavity pin, insert pin etc
- HSS punch, Precision punch, Special-shaped punch
- Ejector pins, ejector sleeve, two-stage ejector pins etc
- Guide pillars, Guide bushings, Guide post set
- Slide Core Units, Latch locks, locating Series
Our Services
- One-stop service of custom mold parts design from initial drawing design to final assembly and shipment
- Material selection assistance and mold flow analysis
- High skilled and well-trained working team under good management environment
- Quick response and support for any inquiries
- Over 10 years professional manufacture experience
- Large and strong production capacity to meet your demand
Packaging & Applications
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.
Application fields: Automobile parts, medical, daily necessities packaging, cosmetic packaging, etc.
Shipping Information
We ship using express services such as DHL, UPS, FEDEX etc. Express shipping takes 3-5 days with tracking provided. Ocean shipment available for larger quantities for economic efficiency.
Frequently Asked Questions
How Can I Get The Quotation?
Please send us information for quote: drawing, material, weight, quantity and request.
If We Don't Have Drawing, Can You Make Drawing For Me?
Yes, we make the drawing of your sample and duplicate the sample.
How About Your Quality Control?
1. Every processing technician mastered the inspection skills in order to check each dimensions during machining;
2. After the completion of processing, parts will be transferred to the QC department for full dimension inspection;
3. Double check before packing to make sure no defective products will be released.
Do You Have The Surface Finishing Capability?
Yes, and divided into the following sections:
1. Grain surface treatment - Polishing, fire pattern, erosion, sand blasting
2. Electroplating treatment - Nickel plating, zinc plating, chrome plating, titanium plating, chrome plating, flash chrome plating
3. Coating - TIN, TICN, DLC, TIAIN, CrAIN, CrN
