Mushroom Head Screw & Threaded Core Sets | Micron-Level Packaging Mold Tooling

Product Overview

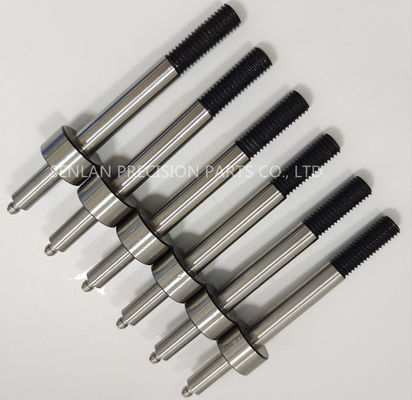

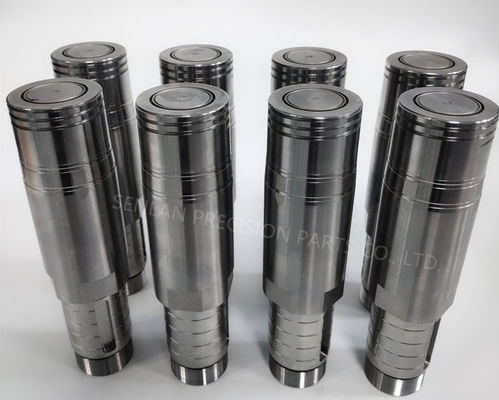

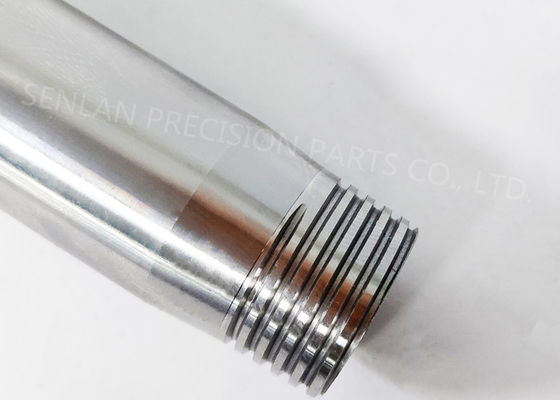

The high-precision thread core with button mushroom screw is a custom-manufactured injection mold component designed for packaging molds requiring stable thread demolding and tight dimensional control. Manufactured with CNC machining and controlled assembly accuracy, this thread core achieves a tolerance of ±0.005 mm, ensuring consistent performance in high-cycle packaging applications.

Key Features & Technical Advantages

• Thread core tolerance controlled within ±0.005 mm

• Integrated button mushroom screw for stable positioning and demolding

• Precision CNC machining for accurate thread geometry

• Suitable for unscrewing or threaded demolding systems

• Stable repeatability in multi-cavity mold configurations

• Fully custom manufactured according to customer drawings (Built-to-Print)

Applications & Industry Use

• Packaging injection molds with threaded structures

• Bottle cap and closure molds

• Daily packaging and container component molds

• Precision molds requiring controlled thread engagement

Mold Structure & Design Description

This thread core assembly consists of a precision-machined threaded core combined with a button mushroom screw structure, enabling accurate axial positioning and controlled rotational or linear demolding. The design supports consistent thread engagement and reduces wear during repeated molding cycles. All structural dimensions are manufactured strictly according to approved 2D drawings or 3D CAD data.

Manufacturing Capability & CNC Machining Capacity

Senlan Precision applies high-accuracy CNC machining and inspection processes to ensure thread concentricity and dimensional stability, supported by advanced equipment including:

• High-precision machining centers from MAKINO

• CNC turning and milling machines from HARDINGE

• Precision grinding and controlled assembly processes

Critical dimensions are inspected throughout machining and final assembly to meet tight tolerance requirements.

Custom Development & OEM Cooperation Process

1. Customer submits drawings or CAD files

2. Technical feasibility and tolerance review

3. Material and structural confirmation

4. CNC machining and precision fitting

5. Dimensional inspection and functional verification

6. Packing and export shipment

All thread cores are produced under a custom OEM / Built-to-Print manufacturing model.

Quality Control & Export Experience

• Incoming material inspection

• In-process dimensional measurement

• Assembly fit and tolerance verification

• Final inspection before shipment

• Stable export experience with international mold manufacturers

Inspection reports and measurement records can be provided upon request.

Related Products

• Thread core inserts for injection molds

• Unscrewing mold components

• Mold core pins and cavity inserts

• Custom non-standard precision mold parts

FAQ (Technical & Purchasing)

Q1: Is this thread core a standard part?
A: No. All thread cores are custom-manufactured based on customer drawings and specifications.

Q2: How is the ±0.005 mm tolerance ensured?
A: Through controlled CNC machining, precision grinding, and dimensional inspection during both machining and assembly.

Q3: Can the button mushroom screw design be customized?
A: Yes. Geometry and structure can be adjusted according to mold design requirements.

Q4: Do you support OEM and built-to-print production?
A: Yes. Senlan Precision specializes in OEM mold components manufactured strictly to drawings.

Get a Quote

Please send your drawings or technical specifications to Senlan Precision to receive a professional evaluation and quotation for high-precision thread cores with button mushroom screw assemblies.
