|Surface Treatment:||Polished, Tin, Ticn, Crn, Dlc||Product Name:||Ejector Pin And Sleeves|
|Quality:||High Quality||Shaping Mode:||Plastic Injection Mould|
|Product Material:||SKD61 Die Steel||Product:||Hand Sanitizer Bottle Mold|
|Standard:||JIS, DIN, En, ASTM, AISI||Design Software:||Autocad, Autocad/Ug/Solidworks, CAD|
|Usage:||Bottle Cap Plastic Parts||Delivery Time:||5-20 Days|
|CNC Machining:||CNC Milling|

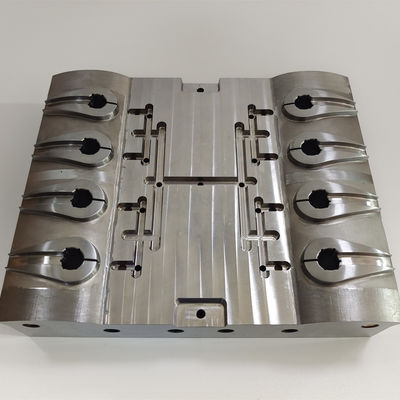

Precision Multi Cavity Mold Core,
Non Standard Die Steel Mould Parts,
Injection Mold Parts Mold Core
In a typical injection molding machine, one half of the mold (the A-side) is attached to the fixed side of the press, and the other half of the mold (the B-side) is attached to the moving clamp side of the press. The clamp (or B) side contains the ejection actuator, which controls the ejector pins. The clamp forces the A and B-sides together, molten plastic is injected into the mold and allowed to cool, the clamp pulls the B-side of the mold away, the ejection pins are actuated, and the part releases from the mold.
Let's use a mold for a plastic drinking glass as an example. To ensure that the part stays in the mold half with the ejector system, we would design the mold so that the outside of the glass is formed in the cavity of the mold (A-side) and the inside would be formed by the core of the mold (B-Side). As the plastic cools, the part would shrink away from the A-side of the mold and shrink onto the core in the B-side. As the mold opens, the glass will release from the A-Side, and stay in the B-side, where it can be pushed off from the core by the ejector system.
If the mold design were reversed, the outside of the glass would shrink away from the cavity in the B-side and onto the core in the A-Side. The glass would release from the B-side and stick to the A-side where there are no ejector pins. At this point, we have a serious problem.
At Protolabs, our design staff uses software tools and extensive experience to make the correct A-side vs. B-side choice. On some parts, it is difficult to predict in advance which side of the mold the part will stick to. Well thought-out part design ensures that the part will naturally stick to the correct side of the mold.
1.SENLAN Precision Mold Parts Co.,Ltd was founded in 2006, located in chang'an town, providing professional and efficient service for the development of mold industry, our management team and technical team has more than 15 years experience in designing and manufacturing plastic and dia casting mold parts, which effictively combined with mold and mold parts technology, and we have the ability to produce all kind of mold insert according to the requirement from the customer
2.The products we made including plastic mold core pin and sleeves, die casting mold core pin and sleeves and movable core components, and also OEM and ODM service are allowed in our company, nowdays the mold pars has been exported to nearly 50 countries including Ameriaca, Spain, Russia, Brazil, British, Czechoslovakia, Germany, Japan etc, and they are widely use in medical, cosmetics and automotion industry
3.The material we use is supplied from ASSBA, heat treatment is supported by well known manufactuere such as Foshan Summit Nikka, Good Profit Heat Treatment and Hongkong Obailee, or any other material can be used according to the different demand, we have also imported equipment such as Takisawa CNC Lathe or Turning Machine, Sodick Electrical Discharge Machine And Sodick Wire Cutting Machine, which makes stable performance and better quality machine for customer to win the trust and praise from the market
4.Our Team always adhere to the principle of "Quality First", In line business philosophy of "On time deliver, Integrity Service" to provide new and regular customer better service
1. With More Than 15 Years Experience In Precsion Core Pins Cavity And Pins Insert Pins
2. OEM, ODM And Non Standard Service Are Available
3. Delivery On Time Promised In Contract
4. Prefect Quality Control System
5. Free Sample provided
6. Without MOQ required
7. Instant Communication with 12 hours
8. Exact Tolerance Same As The Required
Q1: How Can I Get The Quotation?
A: Please send us information for quote: drawing, material, weight, quantity and request.
Q2: If We Don't Have Drawing, Can You Make Drawing For Me?
A: Yes, we make the drawing of your sample and duplicate the sample.
Q: How About Your Quality Control?
A: 1. Every processing technician mastered the inspection skills in order to check each dimensions during machining;
2. After the completion of processing, parts will be transferred to the QC department for full dimension inspection.
3. Double check before packing to make sure no defective products will be released.
Q: Do You Have The Surface Finishing Capability?
A: Yes, and divided into the following sections
1. Grain surface treatment --- Polishing, fire pattern, erosion, sand blasting
2. Electroplating treatment -- -Nickel plating, zinc plating, chrome plating, titanium plating, chrome plating , flash chrome plating.
3. Coating - TIN, TICN, DLC, TIAIN, CrAIN, CrN
