Custom Locating Rings | Non-Standard Large Diameter Register Rings (MISUMI Style)

Product Overview

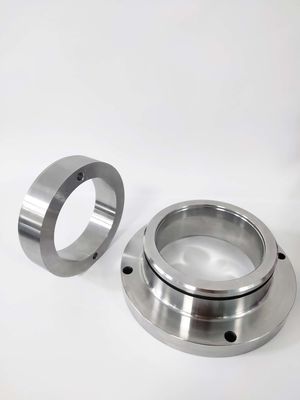

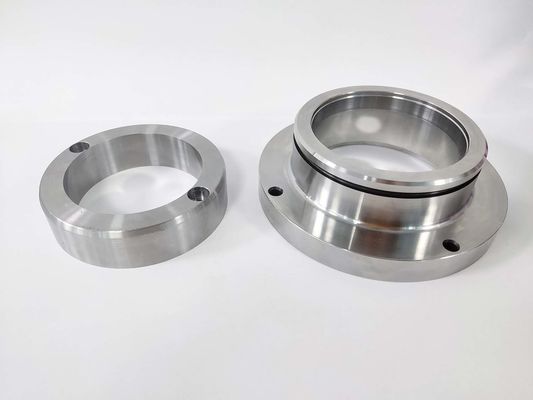

The Locating Rings Large Diameter Type are precision components designed for mold assembly, made from S45C steel with high wear resistance and excellent durability. These rings are tailored to the specific needs of your injection molding applications, offering precise alignment for large cavity molds. Built-to-print OEM solutions are available, ensuring a perfect fit and superior performance in your mold designs.

Core Features & Advantages

• High Durability: Made from S45C steel, known for its strength and resistance to wear.

• Precision Alignment: Ensures optimal fit and accurate positioning of mold components for large diameter molds.

• Customization Available: Built-to-print solutions to meet your specific design requirements and tolerances.

• Long-term Performance: Heat-treated for enhanced surface hardness, ensuring longevity and reliable operation.

• Wide Compatibility: Suitable for a variety of injection molding applications, including large cavity molds.

Applications & Industry Use

• Injection Molding: Essential for large diameter, high-precision molds in diverse industries.

• Packaging Industry: For molds used in the production of large plastic packaging and caps.

• Medical Industry: For molds used in medical disposable components that require precision alignment.

• Consumer Goods Manufacturing: Used in molds for household products requiring consistent and durable performance.

Mold Structure & Design Description

This Locating Ring is designed to secure and align mold components with high precision. Its large diameter ensures accurate mold assembly and minimizes misalignment during the injection process. The use of S45C steel combined with advanced heat treatment processes provides exceptional mechanical properties to withstand the stresses of high-cycle molding.

Manufacturing Capability & CNC Machining

At Senlan Precision, we utilize state-of-the-art CNC machining centers, including equipment from MAKINO (Japan) and HARDINGE (USA).
Key capabilities include:

• CNC Milling and Turning: High-precision machining with tolerances down to ±0.005mm.

• Heat Treatment: Optimized for enhanced hardness and wear resistance.

• Surface Finishing: High-quality surface finishes to ensure smooth operation and minimal friction.

• Custom Machining: Full customization based on your specific drawing and application requirements.

Customization & OEM Cooperation Process

We specialize in Built-to-print manufacturing, offering comprehensive OEM and custom part development:

1. Review of Technical Drawings: Collaborate with your engineering team to confirm specifications.

2. Material Selection: Discuss and choose materials that suit your application, such as S45C steel or other options.

3. Manufacturing and Inspection: CNC machining and strict quality control at every stage.

4. Final Testing & Validation: Thorough inspection for dimensional accuracy and surface finish.

5. Delivery: Timely shipment with complete documentation and export support.

Quality Control & Export Experience

• Material Traceability: All materials are certified and tracked from production to delivery.

• Inspection Protocols: In-house testing for dimension accuracy, concentricity, and mechanical properties.

• ISO-Compliant Quality Assurance: Ensuring the highest standards for reliability and performance.

• Export-Ready: Experienced in international logistics, ensuring compliance with export regulations and timely delivery worldwide.

Related Products

• Locating Rings for Small Diameter Molds

• Precision Mold Core Pins

• Custom Molding Inserts for Large Cavities

• Medical Injection Molding Components

FAQ – Technical & Purchasing

Q1: What is the tolerance range for these locating rings?
Our Locating Rings are manufactured to strict tolerances, typically within ±0.005mm, ensuring accurate mold alignment.

Q2: Can I get a sample before placing an order?
Yes, we offer prototype and sample production to confirm fit and functionality before full-scale production.

Q3: Do you offer customization for non-standard sizes?
Absolutely. We specialize in custom mold components based on your specific design and requirements.

Q4: What is the lead time for production?
Lead time varies depending on the complexity of the design, but typically ranges from 3 to 6 weeks. Custom and large orders may take longer.

Get a Quote

For further inquiries, technical assistance, or to request a custom quote, please contact Senlan Precision today.
Our engineering team is ready to assist you with precise, high-quality solutions for your injection molding needs.

Call to Action:
Let us know your requirements, and we will provide a professional evaluation and quotation tailored to your project needs.
