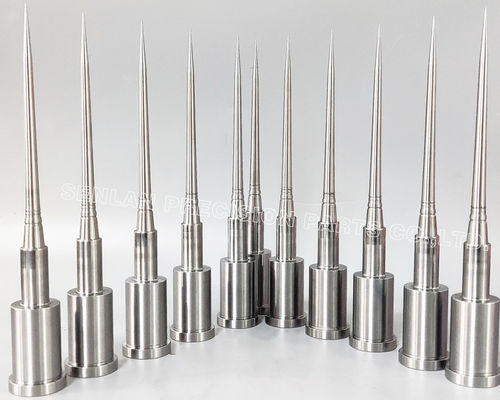

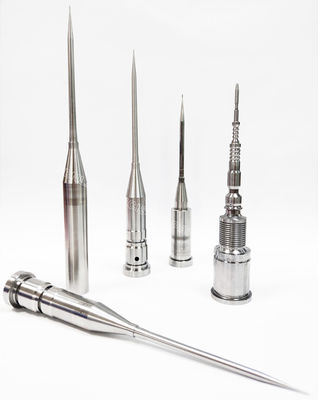

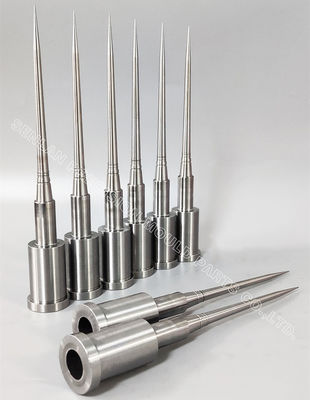

Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling

Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling
Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling
Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling

Large Image :  Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling

Product Details:
Place of Origin: China
Brand Name: SENLAN
Certification: ISO9001
Model Number: CP-54
Payment & Shipping Terms:
Minimum Order Quantity: 1Pcs
Price: Negotiable
Packaging Details: Coated with Anticorrosive Oil, Packed in Carton Box
Delivery Time: 15Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000Pcs/Week

Durability Bohler M340 Die Steel Conical Mold Core Pins For Daily Packaging Plastic Tooling

Description
Material: Bohler M340 Product Name: Mold Core Pins
Application: Cosmetics/Medical/Daily Packaging Hardness: 48-52HRC
Delivery Time: 3-10 Working Days Treatment: Nitriding, Termpered, DLC, TIN
Product: Plastic Mold Tolerance: +/-0.005mm
Standard: JIS, DIN, EN, ASTM, AISI Market: Overseas
Quality: High Precision Size: Customized
High Light:

Bohler M340 Mold Core Pins

,

Daily Packaging Mold Core Pins

,

Die Steel Conical Mold Core Pins

Introduction Of Mold Core Pins:



Mold Core Pins are used primarily in the plastic molding and die casting applications. In most cases Mold Core Pins are fixed in the plastic mold and are used to create a desired shape in the molded or cast part. Unlike the purpose of a an ejector pin which is pushed or extended by the ejector plate to eject the cooled molded or cast part from the cavity/core. It is often easier to machine a core pin as a separate element and add it to the A-side or B-side of the mold as needed. Mold Core Pins are sometimes used in aluminum molds to create tall, thin cores that might be too fragile if machined out of the bulk aluminum of the mold. In some applications core pins are also used for part ejection from a casting die.



There are many types of pins with in mold bases and die casting molds. Each are designed (based on material type, core and surface hardness, and coatings) for different applications within the molding or casting process. Many factors need to be considered to choose the correct pin for the application. Factors like the draft and texture of sidewalls, depth of walls and ribs can increase the likelihood that areas of the part will cling to the mold. Resin choice can also affect pin placement or size. Some resins are “stickier,” requiring more force for release from the mold. Softer resins may also require the use of more or bigger pins to spread the force and prevent puncturing or marring of the cooled plastic.







Mold Core Pins:



In high-volume production of plastic injection molded components, cycle time is critical to profitability, and one of the limiting factors is the removal of heat from the mold. Some plastic injection molded parts have deep internal features that require the use of long Mold Core Pins. During solidification and cooling, the plastic contracts on the core pin; thus, the rate of cooling is controlled by the heat transfer through the core pin. Whether the core pin has a bubbler, heat transfer is dependent upon the thermal conductivity of the core pin material.







Specification Of Mold Core Pins:



Place of Origin: Guangdong China (Mainland)

Brand Name: SENLAN

Model Number: Non-standard Mold Core Pins

Shaping Mode: Punching Mold

Product Material: Bohler M340 Die Steel

Product: Daily Packaging

Standard mould component: For Injection Mould

Material: HSS, M340, M330, M310

Standard: JIS,DIN,AISI

Hardness: 52HRC-58HRC

Grinding precision: 0.003mm

Edm precision: 0.002mm

Surface roughness: RA0.2













Service We Can Offer You:

Quick Response

Your inquiry will be replied within 24 hours.

High Quality

Well-trained workers and more than 10 years experience.

Competitive Price

Directly from factory to reduce cost

Short Lead Time

Being efficient: 3-7 days for samples and 10-35 days for quantity orders.

Flexibility

Small orders are acceptable for quick delivery and to help you reduce stock cost.

OEM

Custom fabrication according to your drawings ,samples or designs.







Our Service:



1.Delivery with Material report & heat treatment report
2.Shipping with QC report
3.Prefect Quality Control System

4.OEM, ODM and Non Standard Service
5.Free Sample provided

6.Without MOQ required

7.Instant Communication with 12 hours
