Medical-Grade Syringe Core Pins | TiN Coated Mold Inserts for High-Cycle Production

Product Overview

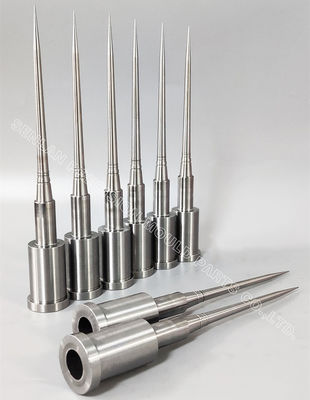

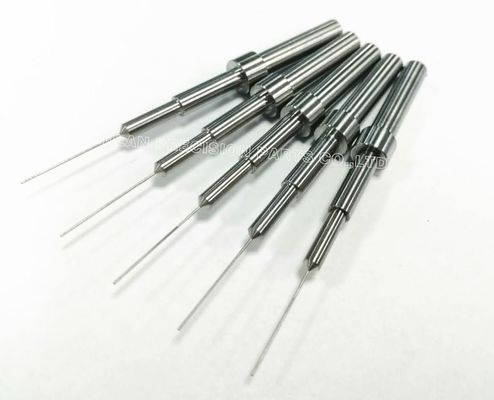

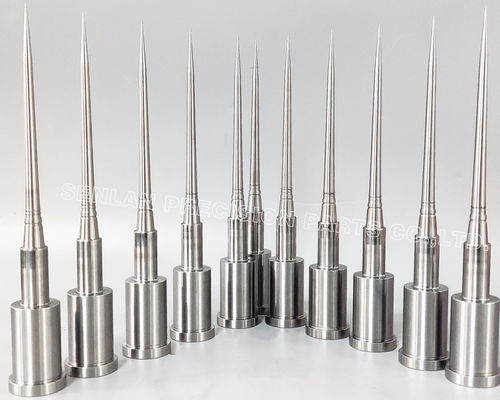

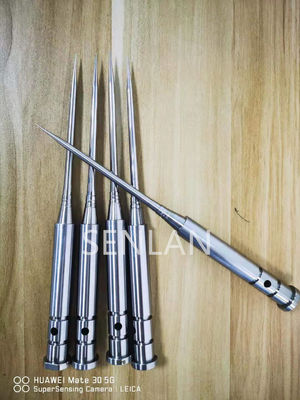

Medical injection syringe core pin mold inserts are precision components used in injection molds for syringe barrels and related medical plastic parts. Manufactured through high-accuracy CNC machining and finished with TiN coating, these core pins provide excellent dimensional stability, wear resistance, and surface consistency. All components are custom produced according to customer drawings and technical requirements for medical injection mold applications.

Key Features & Technical Advantages

• Precision-manufactured core pins and mold inserts for medical injection molds

• CNC machining combined with fine grinding and polishing processes

• TiN coating (plating) to improve wear resistance and surface durability

• Stable dimensional accuracy for critical medical mold features

• Consistent surface quality to support smooth molding and demolding

• Suitable for high-cavity and long production cycles

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

These medical syringe core pin mold inserts are widely used in:

• Injection molds for medical syringes

• Mold systems for syringe barrels and related medical components

• Medical plastic molds requiring strict dimensional consistency

• High-precision molds for disposable medical consumables

They are particularly suitable for applications requiring high precision, stable surface performance, and controlled wear behavior.

Mold Structure & Design Description

Core pin mold inserts are installed on the core side of syringe injection molds and directly define internal product geometry.
Key design considerations include:

• Accurate pin diameter and straightness for syringe barrel formation

• Proper fit and alignment with surrounding mold components

• Structural strength to withstand injection pressure and repeated cycles

• Compatibility with multi-cavity medical mold layouts

All inserts are designed and manufactured strictly according to customer drawings to ensure correct assembly and stable mold operation.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures medical mold core pins and inserts using advanced CNC machining and finishing technologies.
Our production facilities are equipped with high-precision machining centers and CNC lathes from MAKINO (Japan) and HARDINGE (USA), along with other internationally recognized equipment, enabling:

• Machining accuracy up to ±0.002 mm

• Stable tolerance control for slender and high-precision core pins

• Consistent surface quality prior to coating

• Reliable repeatability for medical mold components

TiN coating is applied after machining and surface preparation to ensure uniform coating thickness and performance.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation for medical injection mold components, supporting:

• Built-to-Print production based on 2D drawings or 3D models

• Custom material selection and heat treatment requirements

• TiN coating or other surface treatment options as specified

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold inserts

Technical communication is maintained throughout the project to ensure full compliance with customer specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision maintains a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional and surface inspections

• Final inspection prior to coating and shipment

• Complete inspection records and technical documentation

We are experienced in international technical communication, quality expectations, and export packaging requirements for medical mold components.

Related Mold Components

• Medical mold core pins

• Mold cavity inserts

• Precision mold sleeves and inserts

• Multi-cavity medical mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are syringe core pins manufactured strictly according to drawings?
Yes. All medical mold core pins and inserts are produced strictly based on customer-provided drawings and specifications.

Q2: What is the function of TiN coating on core pins?
TiN coating improves wear resistance, reduces friction, and helps maintain surface stability during long production runs.

Q3: What tolerance levels can be achieved?
Depending on geometry and length, machining accuracy up to ±0.002 mm can be supported.

Q4: Can these inserts be supplied as replacement parts for existing medical molds?
Yes. Replacement and interchangeable core pin inserts can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding medical injection syringe core pin mold inserts with TiN coating, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
