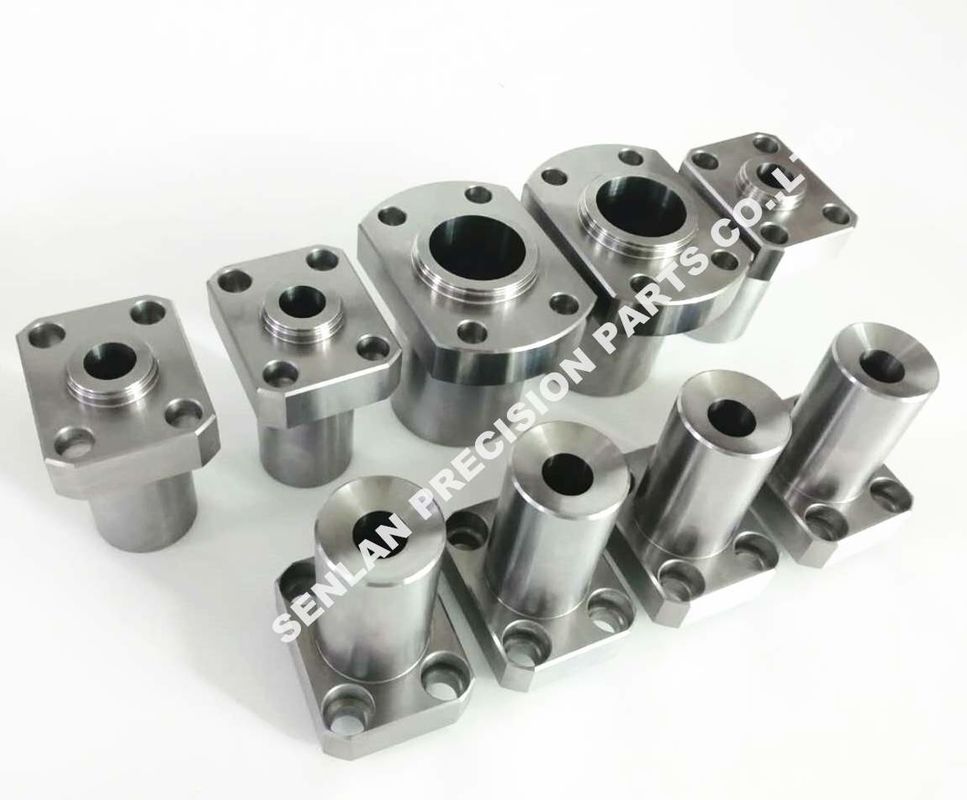

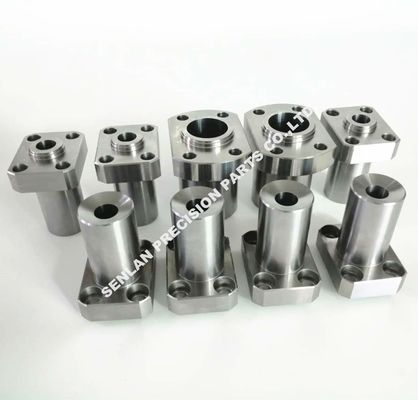

H13 Mold Core Inserts for Plastic Injection Molds
H13 mold core inserts are widely used in plastic injection molds where toughness, heat resistance, and wear performance are required. Compared with general pre-hardened steels, H13 offers strong resistance to thermal fatigue and chipping, making it a reliable choice for core components that face repeated cycling, high localized stress, and demanding production conditions.
We manufacture custom H13 core inserts strictly to customer drawings for both new mold builds and replacement programs. Our process focuses on the factors that determine stable mold performance: datum accuracy, fit control, concentricity/runout, surface finish, and heat-treatment stability --so inserts assemble predictably and run consistently over long production cycles.
Product Description
A core insert is a replaceable forming component usually installed on the moving half of an injection mold. It forms internal features and functional surfaces of the molded part. Insert-based mold construction helps mold builders maintain tight tolerances while improving serviceability: worn or damaged core zones can be replaced without reworking a full core plate.
What H13 Core Inserts Typically Do
- Form internal geometry such as bores, seats, channels, and functional interfaces
- Provide stable shut-off and edge performance where chipping risk exists
- Maintain dimensional integrity during long runs with repeated thermal cycling
- Support interchangeable maintenance via controlled datums and fit surfaces
Why H13 is Commonly Specified
H13 is a hot-work tool steel known for a balanced combination of:
- High toughness to resist cracking and chipping
- Thermal fatigue resistance for repeated heating/cooling cycles
- Good wear resistance after proper heat treatment
- Dimensional stability when heat treatment is controlled properly
Final hardness, tolerances, and finishing are produced to your drawing and mold requirements.
Typical Design Features
- Locating shoulders/diameters for repeatable installation
- Mounting or retention features (threads, screws, key flats, etc.)
- Forming faces requiring specific surface finish
- Optional vents/reliefs or interface geometry based on mold structure
Applications
H13 mold core inserts are used in plastic injection molds, including:
- High-cycle molds requiring tough, wear-resistant core components
- Molds with tight shut-offs or stress-prone edges
- Insert-based designs requiring interchangeable spare cores
- Maintenance and refurbishment programs replacing worn core inserts
- Multi-cavity molds needing consistent core-to-core repeatability
Precision & Manufacturing Capabilities
Manufacturing Processes
- CNC milling/turning for profiles and interfaces
- Heat treatment coordination for target hardness and stability
- Grinding for critical fits, datums, and sealing lands
- EDM / wire EDM for special geometry
- Polishing / fine finishing for forming surfaces
- Set matching and consistency control for multi-piece orders
Key Quality Controls
- Datum-based machining for repeatable installation into the mold base
- Fit tolerance control for interchangeability
- Concentricity/runout control for coaxial features
- Flatness/parallelism control for interface surfaces
- Surface finish control on forming and shut-off zones
- Inspection strategy options as requested
Inspection & Documentation
- Dimensional inspection reports available
- Material certificates and heat treatment records upon request
- Marking/traceability options for cavity and set management
Customer Value for Tough, Long-Run Core Performance
Reduced Chipping and Longer Service Life
H13's toughness helps protect stress-prone edges and shut-offs, reducing crack risk and extending service intervals.
Stable Performance Under Thermal Cycling
Controlled heat treatment supports dimensional stability and helps maintain consistent molding performance over long runs.
Lower Downtime with Replaceable Inserts
Insert-based designs allow quick replacement of worn core zones without major mold rework.
Better Consistency for Multi-Cavity Molds
Matched H13 core insert sets reduce cavity-to-cavity variation and improve overall production yield.
What We Need for Quotation
To quote H13 mold core inserts accurately, please provide:
- 3D CAD (STEP/IGES) and 2D drawing (PDF/DWG)
- Quantity (single pieces or multi-cavity sets)
- Material requirement: H13 (confirm accepted equivalents if any)
- Heat treatment / target hardness specification
- Surface finish requirement for forming areas (Ra / polish level)
- Critical tolerances and GD&T
- Mold interface details
- Inspection/document needs
- Lead time and packaging requirements
Frequently Asked Questions
Why choose H13 for core inserts in injection molds?
H13 is commonly chosen for its toughness and resistance to thermal fatigue, helping reduce chipping and maintain stable performance in demanding, high-cycle conditions.
Will heat treatment change the dimensions of an H13 insert?
Heat treatment can cause dimensional change if not controlled. We plan machining allowance and post-heat finishing steps to achieve final tolerances.
Can you supply matched sets for multi-cavity molds?
Yes. We can manufacture matched sets with controlled variation and provide inspection data for key features.
Do you provide inspection reports and heat treatment records?
Yes. Inspection reports and material/heat treatment certificates are available upon request.
Send us your STEP/2D drawings, quantities, target hardness, tolerance/finish requirements, and required delivery date.
We'll reply quickly with a clear quotation, lead time, and available quality documentation options for H13 mold core inserts.
