AISI H11 (1.2343) Precision Mold Core Plates | Custom Steel Tooling Components

Product Overview

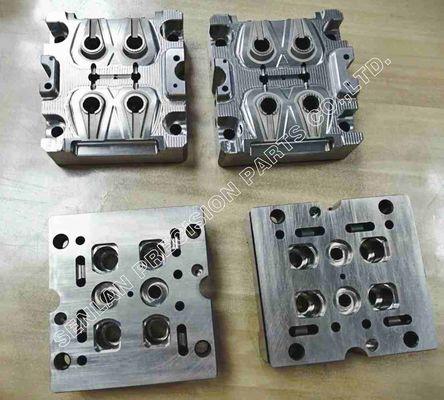

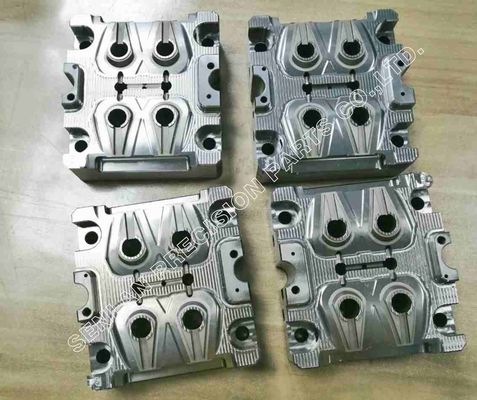

The customized GB / JIS 1.2343 mold core plate is a critical structural component used in plastic injection molds to support core inserts and ensure dimensional stability during molding. Manufactured from 1.2343 hot work tool steel and precision machined according to customer drawings, this core plate offers reliable strength, thermal stability, and consistent accuracy for multi-cavity mold applications.

Key Features & Technical Advantages

• Manufactured from 1.2343 hot work tool steel

• Compliant with GB and JIS standards as specified

• High structural rigidity for core-side mold assemblies

• Stable dimensional accuracy under molding temperature and pressure

• Precision CNC machining for flatness and parallelism control

• Suitable for long production runs and multi-cavity molds

• Fully customized / OEM / Built-to-Print manufacturing

Applications & Industries

Customized 1.2343 mold core plates are widely used in:

• Injection molds for packaging caps and closures

• Mold bases and core-side structures for bottle cap molds

• Medical packaging molds and syringe-related tooling

• Precision plastic molds requiring stable core support

They are especially suitable for applications where structural stability, thermal resistance, and dimensional consistency are critical.

Mold Structure & Design Description

The mold core plate is installed on the core side of the injection mold and serves as a load-bearing and positioning component.
Key design considerations include:

• Accurate plate thickness and flatness to ensure proper mold alignment

• Machined pockets and mounting features for core inserts

• Compatibility with multi-cavity mold layouts

• Structural strength to withstand injection pressure and clamping force

All core plates are designed and machined strictly according to customer drawings and mold assembly requirements.

Manufacturing Capability & CNC Machining

Senlan Precision manufactures mold core plates using advanced CNC machining processes.
Our production facilities are equipped with high-precision machining centers from MAKINO (Japan) and HARDINGE (USA), along with other internationally recognized equipment, enabling:

• Machining accuracy up to ±0.002 mm

• Precise control of flatness, parallelism, and positional tolerances

• Consistent surface quality for mold assembly interfaces

• Reliable repeatability for customized and replacement core plates

Machining processes are selected based on plate size, tolerance requirements, and mold structure.

Custom Manufacturing & OEM Cooperation

We specialize in custom manufacturing and OEM cooperation, supporting:

• Built-to-Print production based on 2D drawings or 3D models

• GB / JIS standard interpretation and dimensional alignment

• Custom machining features for specific mold structures

• Small-batch prototyping and volume production

• Long-term supply of replacement and spare mold plates

Technical communication is maintained throughout the project to ensure accurate execution of specifications.

Quality Control & Export Experience

With over 20 years of experience in exporting precision mold components, Senlan Precision operates a structured quality control system:

• Incoming material inspection and traceability

• In-process dimensional and flatness inspection

• Final inspection prior to shipment

• Complete inspection records and technical documentation

We are experienced in international technical communication, quality requirements, and export packaging standards.

Related Mold Components

• Mold core inserts

• Cavity plates and cavity inserts

• Mold base components

• Multi-cavity mold spare parts

All related products are available on a custom manufacturing basis.

Technical FAQ

Q1: Are mold core plates manufactured strictly according to drawings?
Yes. All core plates are produced strictly based on customer-provided drawings and specifications.

Q2: Why is 1.2343 material suitable for mold core plates?
1.2343 offers good thermal stability, strength, and toughness, making it suitable for load-bearing mold components.

Q3: What machining tolerance can be achieved?
Depending on plate size and design, machining accuracy up to ±0.002 mm can be supported.

Q4: Can these core plates be supplied as replacement parts for existing molds?
Yes. Replacement and interchangeable core plates can be manufactured to match existing mold designs.

Request a Quotation

For pricing, lead time, or technical discussion regarding customized GB / JIS 1.2343 mold core plates for injection molds, please provide your drawings or technical specifications.
Our engineering team will review your requirements and provide a professional quotation accordingly.
