TiN Coated H13 (1.2344) Die Casting Mold Parts | Custom Automotive Core Pins

Product Overview

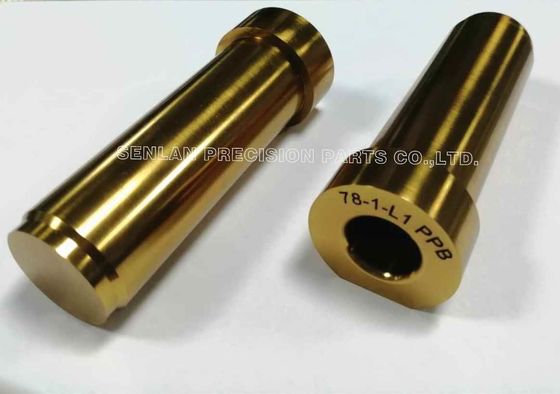

Tin coated metric core pins are precision mould components designed for high-load injection and die casting mould systems requiring enhanced wear resistance and stable surface performance. Senlan Precision manufactures these core pins strictly according to customer drawings, focusing on dimensional accuracy, coating consistency, and long-term stability in high-cycle moulding operations.

Core Features & Technical Advantages

• Built-to-Print manufacturing based on customer technical drawings

• Tin coating for improved surface hardness and reduced friction

• Metric dimension standards with controlled tolerance

• Stable concentricity and straightness for precision mould alignment

• Enhanced wear resistance for extended service life

• Compatible with multi-cavity and replaceable core pin systems

Applications & Industry Use

Tin coated metric core pins are commonly applied in:

• Plastic injection moulds for packaging components

• Closure and cap mould systems with high production cycles

• Medical mould tooling requiring stable surface conditions

• Multi-cavity moulds with interchangeable core pin designs

• Export-oriented OEM mould projects

All applications are limited to industrial mould tooling systems.

Mould Structure & Design Description

Within an injection mould, the metric core pin functions as:

• A forming element defining internal or external product geometry

• A precision-aligned component interacting with cavity inserts

• A wear-critical part subjected to repeated injection pressure

Key design considerations include:

• Core pin diameter and length tolerance

• Concentricity between pin body and functional features

• Coating thickness and adhesion stability

• Fit accuracy within mould plates and inserts

Manufacturing Capability & CNC Machining

Senlan Precision utilizes advanced CNC machining and finishing equipment from MAKINO and HARDINGE to manufacture tin coated core pins with consistent quality.

Key processes include:

• Precision CNC turning and milling

• Grinding for diameter and straightness control

• Surface preparation prior to tin coating

• Controlled coating application and thickness inspection

• Full dimensional and surface verification

Custom Development & OEM Cooperation Process

All tin coated metric core pins are supplied on a Custom / OEM / Built-to-Print basis.

Standard cooperation workflow:

1. Customer drawing and specification review

2. Tolerance and coating requirement confirmation

3. Precision machining and surface treatment

4. In-process and final inspection

5. Packaging and export delivery

Both prototype and serial production are supported.

Quality Control & Export Experience

Quality assurance measures include:

• Raw material verification

• Process-level dimensional inspection

• Coating thickness and surface quality checks

• Final inspection against approved drawings

Senlan Precision has extensive experience supplying precision mould components to international customers, supporting long-term OEM cooperation.

Related Products

• Precision mold core pins

• Mold cavity inserts

• Threaded core components

• Wear-resistant mold inserts

All related products are available as custom-built solutions.

Technical FAQ

Q1: Do you supply standard metric core pins?
No. All core pins are manufactured strictly according to customer drawings.

Q2: Is tin coating mandatory for these core pins?
Tin coating is optional and applied based on application and wear requirements.

Q3: What tolerance range can be achieved?
Tolerance capability depends on geometry and length, typically within precision mould standards.

Q4: Are these core pins suitable for multi-cavity moulds?
Yes. They are commonly used in multi-cavity and interchangeable mould systems.

Request a Quotation

For custom tin coated metric core pins and die casting mould components, please submit your technical drawings and specifications.
Our engineering team will evaluate your requirements and provide a detailed quotation accordingly.
