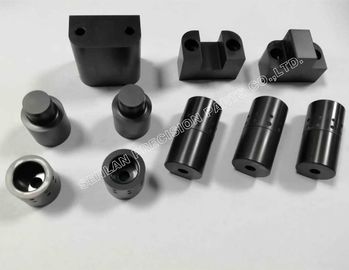

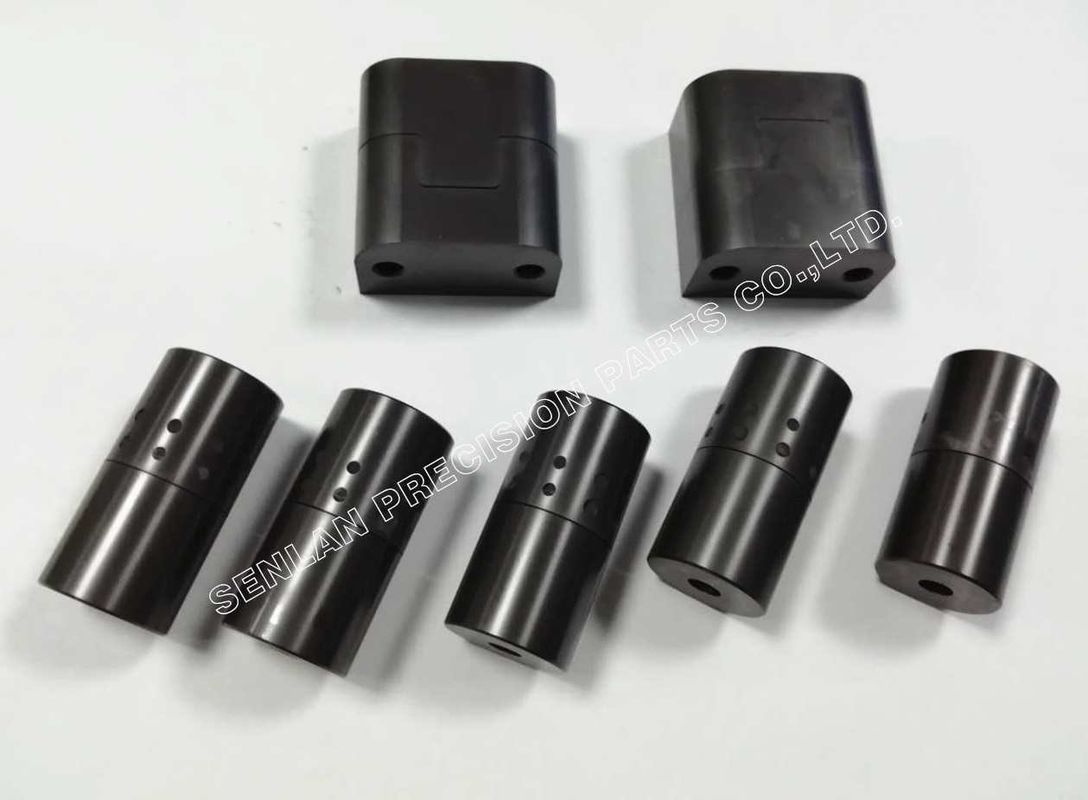

SUJ2 Tapered Locating Block Conical Inner Hole Taper Lock Pin Locating Pillar Set
Precision-engineered SUJ2 tapered locating block set with conical inner hole design for superior alignment and locking performance in industrial applications.
Product Specifications
| Material |
SUJ2 |
| Hardness |
HRC58-60 |
| Heat Treatment |
High Frequency |
| Service |
Made-to-order |
| Closest Tolerance |
±0.002mm |
| Surface Finish |
Ra 0.6 |
| Axiality |
0.005mm |
| Verticality |
0.005mm |
Tolerance
±0.002mm standard tolerance, customizable to meet specific customer requirements.
Drawing Format
PDF, DWG, DXF, IGS, STEP, and other standard CAD formats available.
Packaging
Inner packaging with recyclable plastic boxes and anti-corrosive oil, outer packaging with protective sponge and PE bags. Custom packaging solutions available.
Application Fields
Automotive components, medical equipment, consumer packaging, cosmetic packaging, and various industrial applications.
Quality & Service Commitment
- Professional technical consultation and operational support
- 24/7 customer service availability
- Comprehensive pre-shipment inspection of all products
- Reliable after-sales service
- Strict quality control protocols
- Flexible shipping terms: EXW, FOB, CIF
- OEM and ODM services available
Company Capabilities
Senlan Precision Mould Parts specializes in manufacturing standard and custom ejector pins, punches, insert pins, cavity pins, core pins, mold cores, and comprehensive mold accessories. Our integrated services include tooling design, fabrication, die casting, secondary processing, precision machining, T6 treatment, finishing, and assembly.
Frequently Asked Questions
What information is needed to provide a quote?
Please provide detailed drawings or samples including: materials specification, surface finish requirements, tolerance specifications, quantity needed, and any special requirements.
How long is your delivery time?
Standard delivery ranges from 7-30 days depending on order quantity, from minimum order quantities to full container loads.
Do you provide samples? Are they free?
Yes, we provide samples and raw materials for quality inspection. Samples are provided free of charge, though freight costs are the responsibility of the customer.
How does your factory handle quality control?
Quality is our top priority. We implement comprehensive quality control throughout production: material testing before processing, barcode tracking during manufacturing, and 100% inspection before packaging. We maintain production drawings and test reports for 3 months and provide 8-hour response times for any quality concerns.
